WT2-20M Diesel Engine Soil Interlocking Pressing Bricks Machine
- Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 Hot Selling Factory Price WT1-25 Clay Interlocking Bricks Block Making Machine Production Line
-
WANTE BRAND DOUBLE-M7MI BLOCK MAKING MACHINE FOR UGANDA CUSTOMERS
-
WANTE BRAND M7MI BLOCK MACHINE WITH A BIG DISCOUNT
-
WANTE BRAND WT1-25 ECO BRAVA CLAY INTERLOCKING BRCK MACHINE WITH BIG HOPPER
-
Interlock Clay Brick Making Machine South Africa Interlocking Brick Block Machine in Kenya
-
Hand Press Soil Brick Making Machine Clay Interlocking Pavers Production Price for Sale
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Clay | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 2000-2500 pcs/day | Place of Origin | Shandong, China | |
| Brand Name | Wante | Model Number | M7MI | |
| Voltage | Diesel Engine | |||
| Dimension(L*W*H) | 2900x1500x1600mm | Certification | ISO9001/CE | |
| Warranty | 12 monthes | After-sales Service Provided | Engineers available to service machinery overseas |
1,Plywood package
2.Container package
Product Description

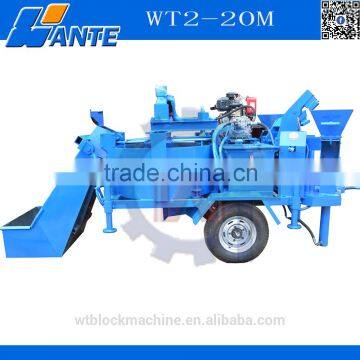

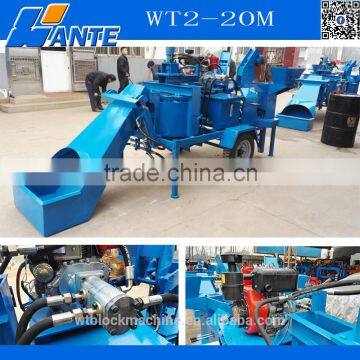

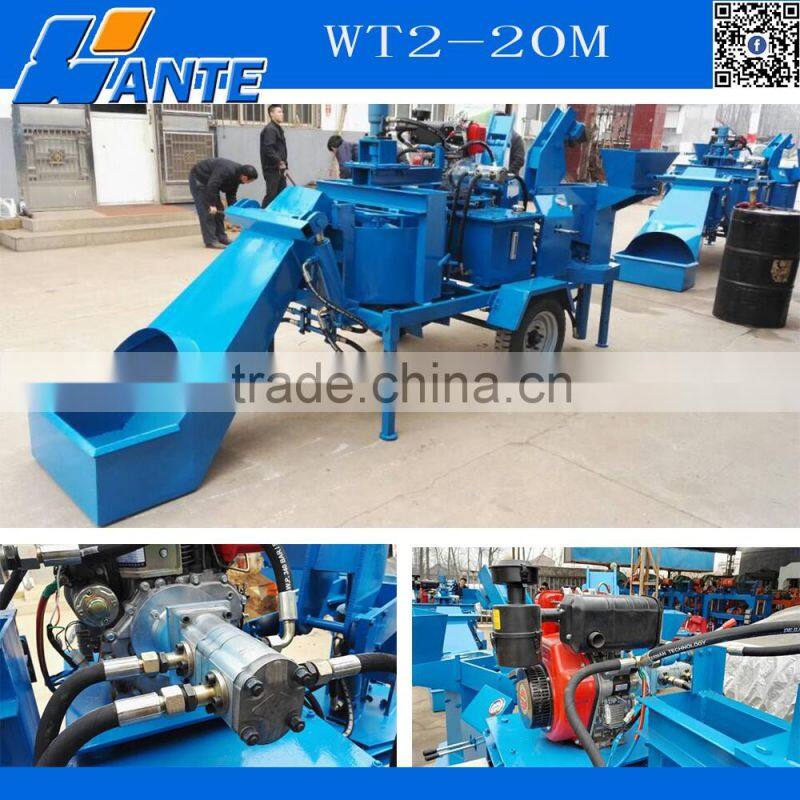

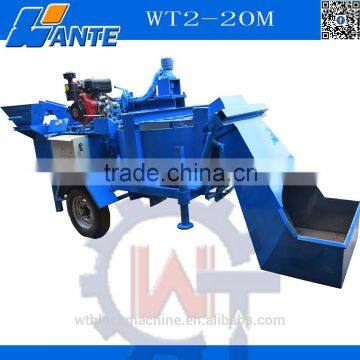

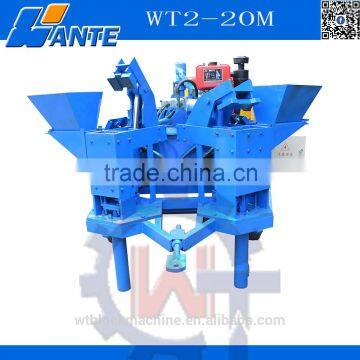

WT2-20M Diesel engine type soil interlocking pressing brick machine showing :
WT2-20M Diesel engine type soil interlocking pressing brick machine
is mobile and ideal for small to medium size projects producing around 2400 blocks per day
equivalent 40-50m²of wall. Mixing can be done by hand especially if labor cost is low and community
involvement is key to the project but having a pan mixer would be ideal to ensure high production and
constant quantity.

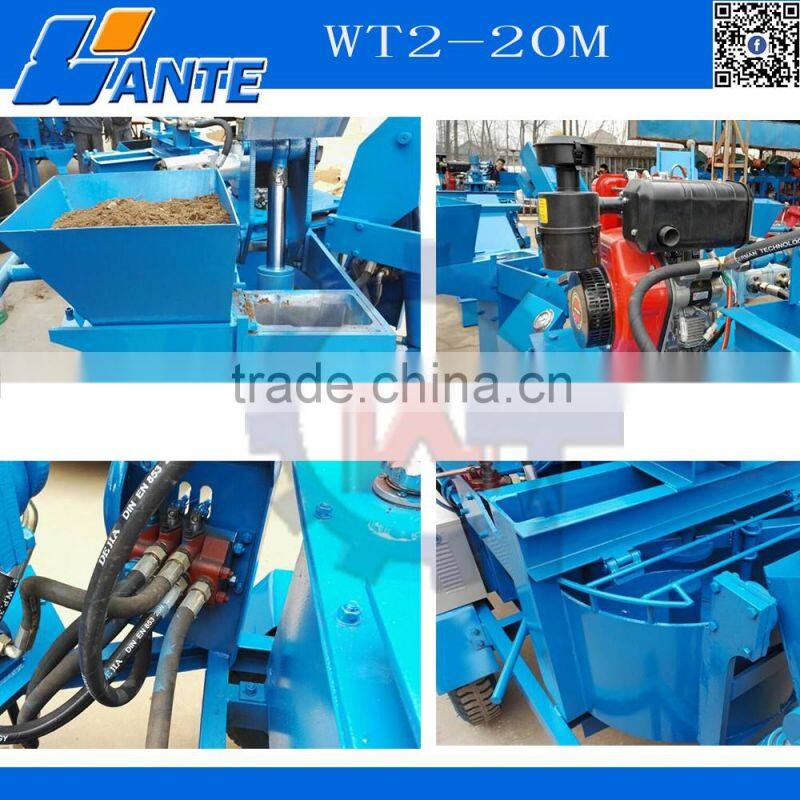

The machine is inclusive of a diesel engine, hydraulic power pack including cylinders, compression chamber,
pre-compacting top gate assembly, all fitted on a trailer inclusive of spring axle, tail lights, tow-hitch and road types
WT2-20M Diesel engine type soil interlocking pressing brick machine specification
| Power | 9.3/12hp |
| Product capacity | 220x220x115mm |
| Cycle | 20s |
| Pressure | 15MP |
| Weight | 1200kgs |
| Overall size | 3800x1900x1500mm |
Detailed specification of WT2-20M Diesel engine type soil interlocking pressing brick machine
Production
| 240 blocks per hour or +/- 1920 blocks per day |
Features | Mobile, with tow-hitch, tyres and hydraulic pan mixer for a better quality mix |
Power source | Diesel (electric motor available) |
Dimensions | +/- 2.95 x 1.7 x 1.6m |
Weight | +/- 1560 kg excluding crating |
Operating staff | +/- 5-7 staff |
Moulds | Machines come standard with 220mm interlocking block mould which requires minimal mortar |
Accessories | Optional extra: spares (one year), block cutter, block tester, 140mm Mould 220mm Conduit Mould, and 220mm Capping Mould |

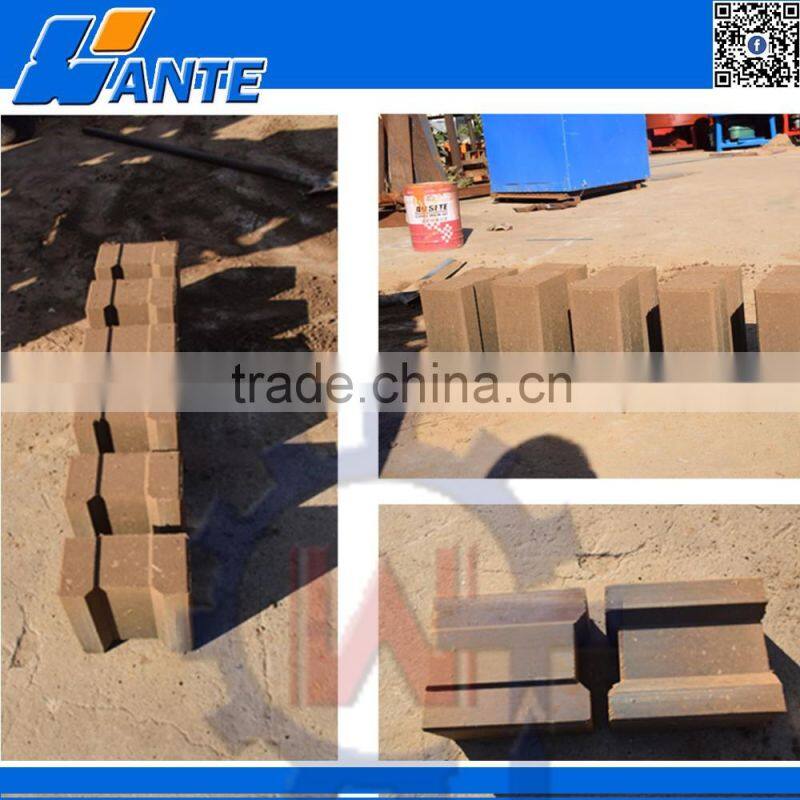

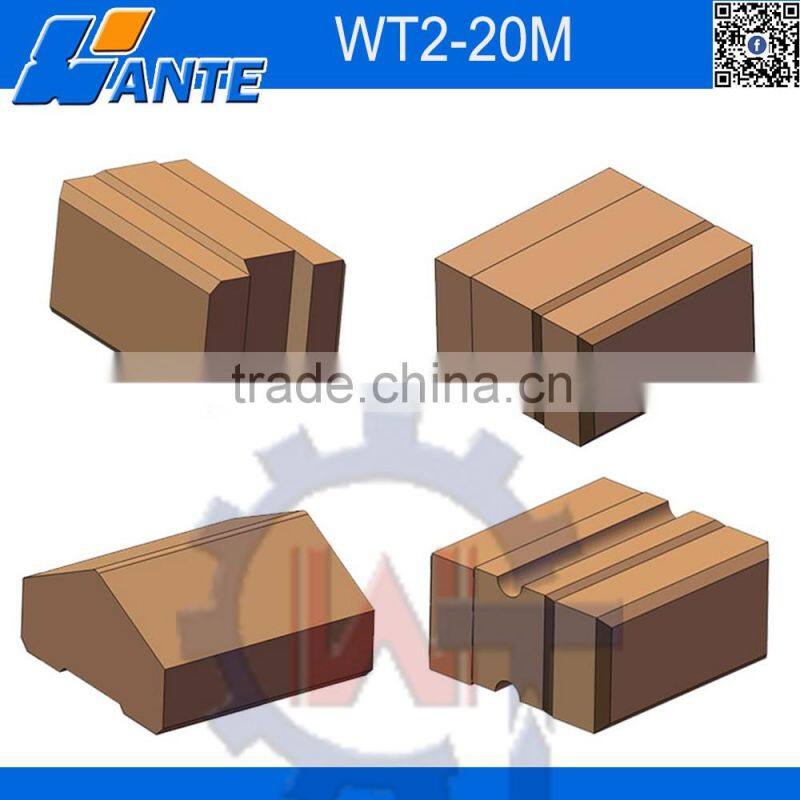

Block size of WT2-20M Diesel engine type soil interlocking pressing brick machine

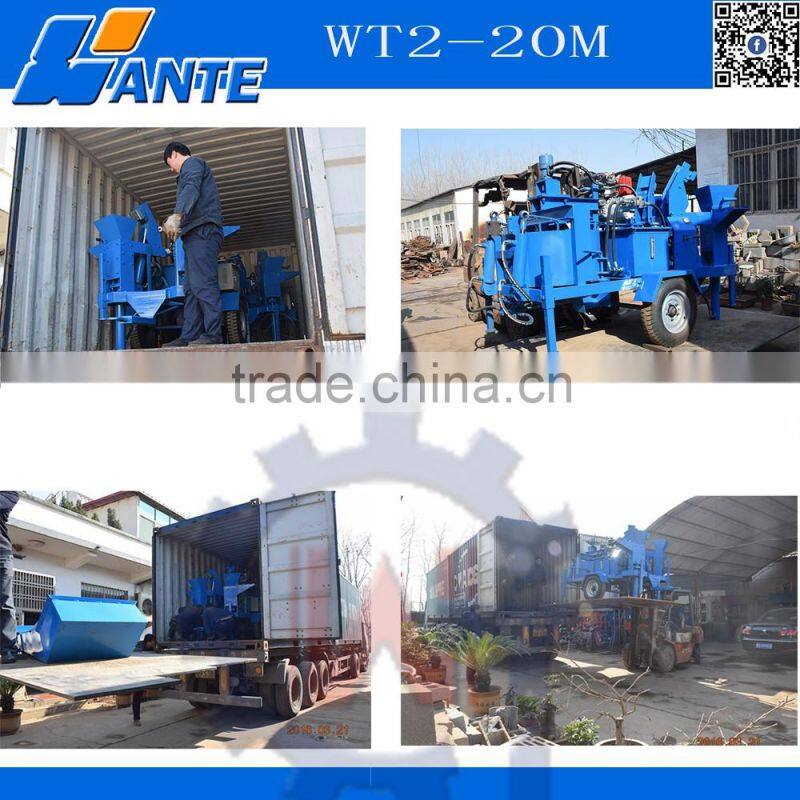

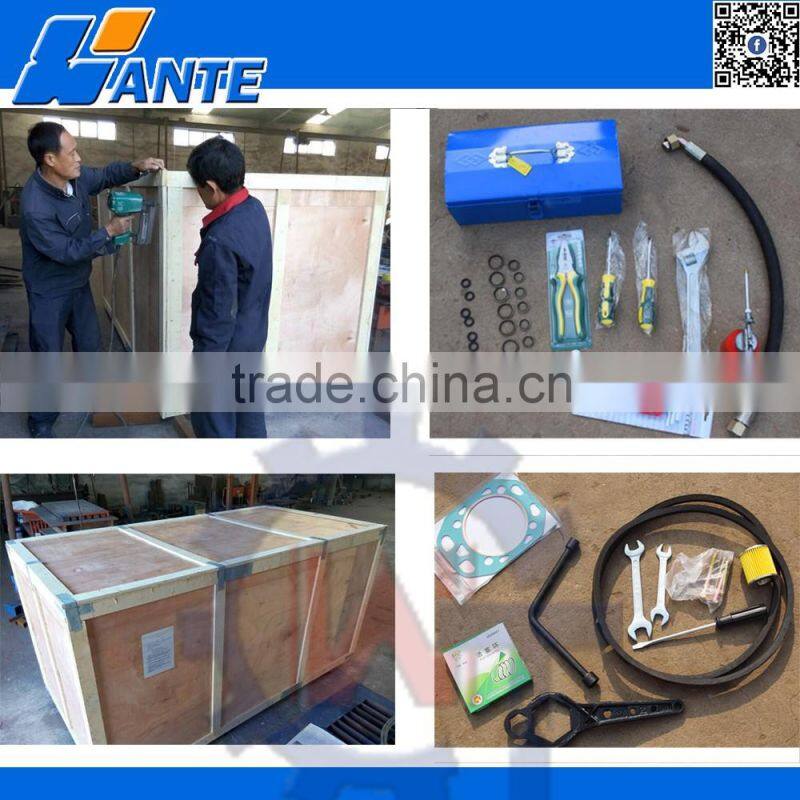

Package of WT2-20M Diesel engine type soil interlocking pressing brick machine
Company of WT2-20M Diesel engine soil interlocking pressing bricks machine
Good quality ,Best service.Accept 24 hours calling :
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime,if you need, we can Make inVitation
card for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix,and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other
Certificate of WT2-20M Diesel engine soil interlocking pressing bricks machine
Any need or question ,Please contact us freely
Best regards to you and your family
Mandy
Mobile phone&WhatsApp:+8618954991098/+8615206805586
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
