Home > Products > Hydraulic block/brick making machine > WT1-10 dry pressed clay brick production lines
WT1-10 dry pressed clay brick production lines
- 1500 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WT1-10 chinese press mud brick manual machine
-
WT1-10 Compressed earth interlocking blocks/bricks machinery
-
Trade assurance low investment high profitable business brick making machine price for sale in nigeria
-
How to stock ECOLOGICAL BRICK bricks------From Linyi Wante Machinery Co.,Ltd
-
WT1-10 Interlocking tijolos ecological brick making machine
-
WT1-10 brick making machine hydraulic pusher,auto clay brick machine
Product Details
Condition | New | Type | Interlock Block Making Machine | |
Brick Raw Material | Cement | Processing | Brick Production Line | |
Method | Hydraulic Pressure | Automatic | Yes | |
Capacity | 4800pcs/8hr | Place of Origin | Shandong, China | |
Brand Name | Wante | Model Number | WT1-10 | |
Voltage | 220/240/380/440V | Power | 7.5KW | |
Dimension(L*W*H) | 1450x1600x2000mm | Certification | ISO9001&CE | |
Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Nude pacakge, if needed, clients pay for it.
Product Description

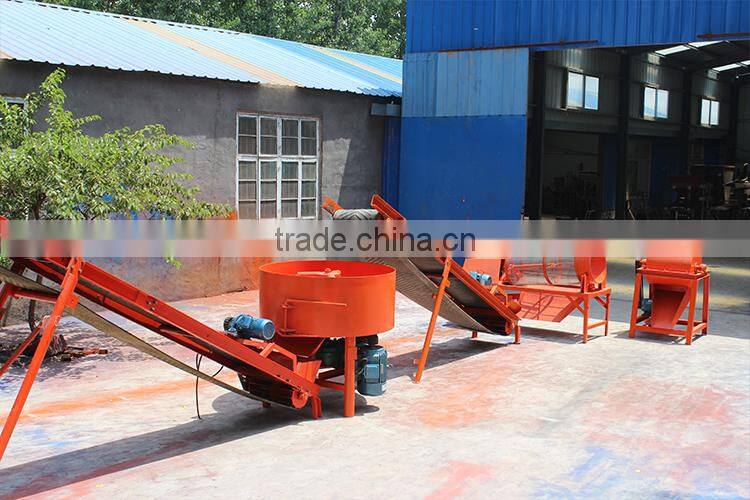

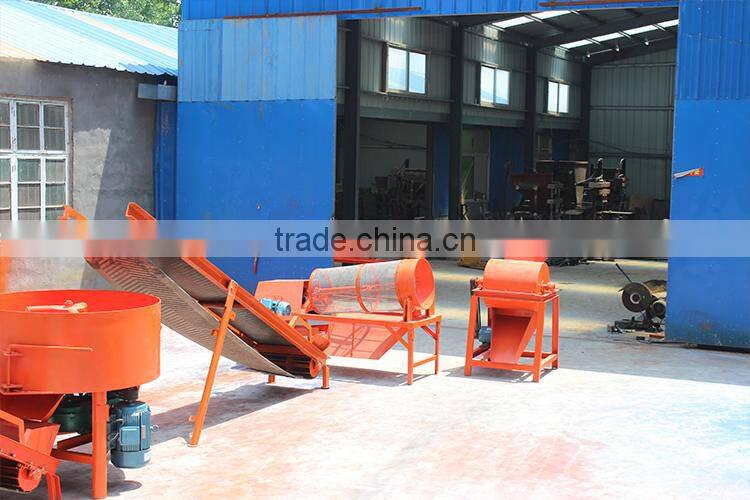

WT1-10 dry pressed clay brick production lines

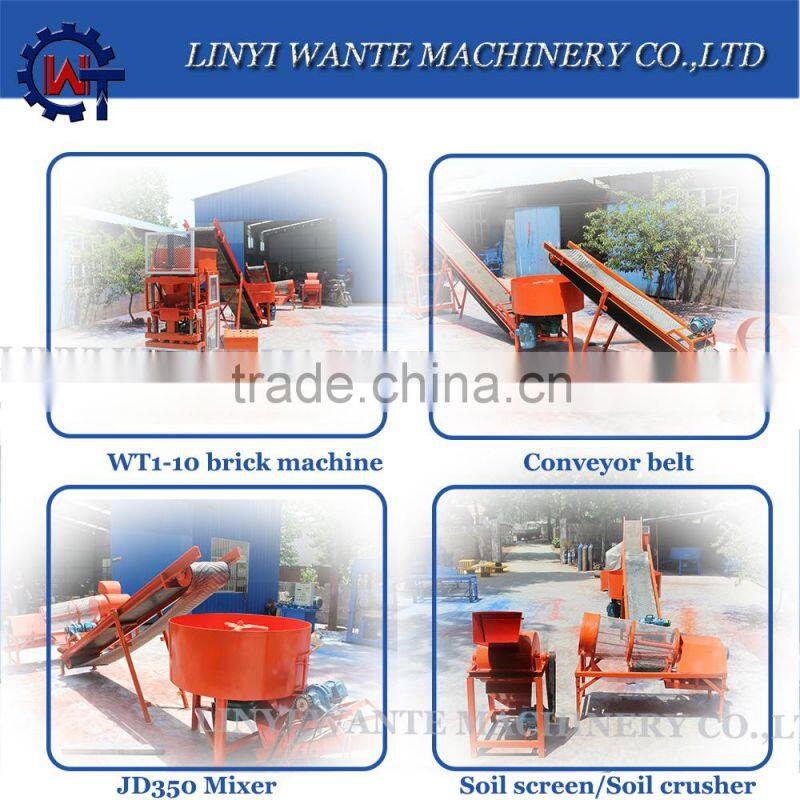

Description of WT1-10A brick machine line | Qty | Weight KGS |
WT1-10A hydraulic interlocking block machine | 1 | 1100 |
Accessory for WT1-10A | ||
Free Interlocking Mold | 1 |
|
Hydraulic station and motor | 1 |
|
Tools | 1 |
|
Soil crusher | 1 | 200 |
Soil screen | 1 | 300 |
Conveyor belt | 1 | 200 |
JD350 mixer | 1 | 410 |

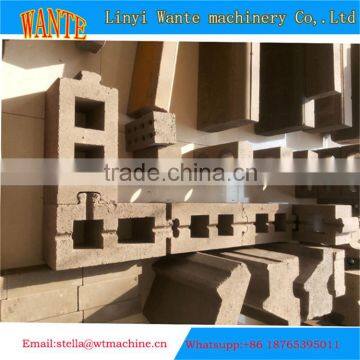

NO | BLOCK SIZE | PCS/mold | PCS/HOUR | PCS/8HOURS |
1 | 300*150*100mm 250*125*65mm | 1 | 600 | 4800 |
2 | 300*150*100mm 250*125*65mm | 1 | 600 | 4800 |

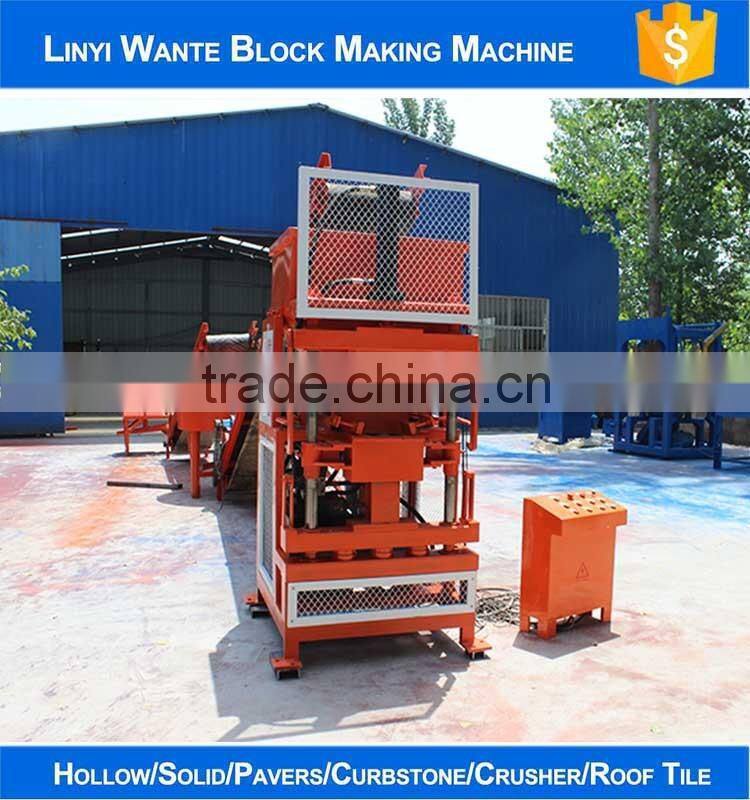

WT1-10 hydraulic interlocking block machine | |
Overall size | 1400(L)×1100(W)×2100(H)mm |
Shaping cycle | 10seconds |
Power | 7.5 KW |
| 15 Hp diesel engine |
Pressure | 16Mpa |
Total weight | 1100 KGS |
Soil crusher | |
Overall size mm | 1100(L)×1100(W)×1400(H)mm |
Motor | 3 KW |
Capacity | 500KGS/H |
Electricity | 380V/220V/ (adjustable) |
Total weight | 200 KGS |
Soil screen | |
Power | 3KW |
Capacity | 480KGS/h |
Rated power | 380V or 220V |
Size | Diameter:500mm |
Total weight | 300 KGS |
Conveyor belt | |
Power | 2.2KW |
length | 6M |
Rated power | 380V or 220V |
Capacity | 2M/S |
Total weight | 240 KGS |
JD350 mixer | |
Overall size | 1200(L)×1200(W)×1300(H)mm |
Shaping cycle | 5 mins |
Volume | 350L (25Kgs Cement) |
Electricity | 380V/220V/ (adjustable) |
Total weight | 330KGS |

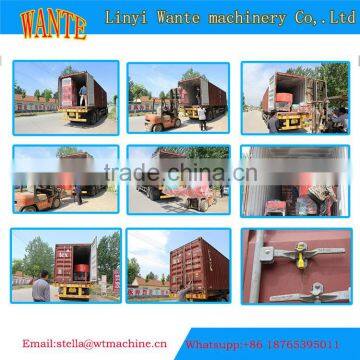

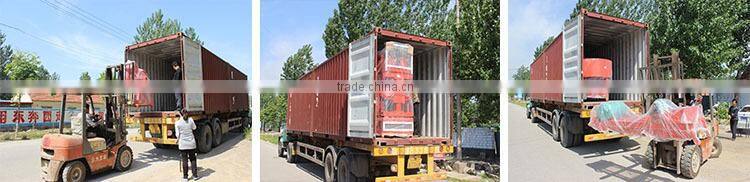

Delivery photos |
|
Port of shipment: Qingdao ,China Time of delivery: within 25- 30 days after receiving the deposit Shipping Marks: The buyer should supply the main shipping mark or seller will use the company as the main shipping mark, the side mark will be the machine name/model/weight and serial package information.
|

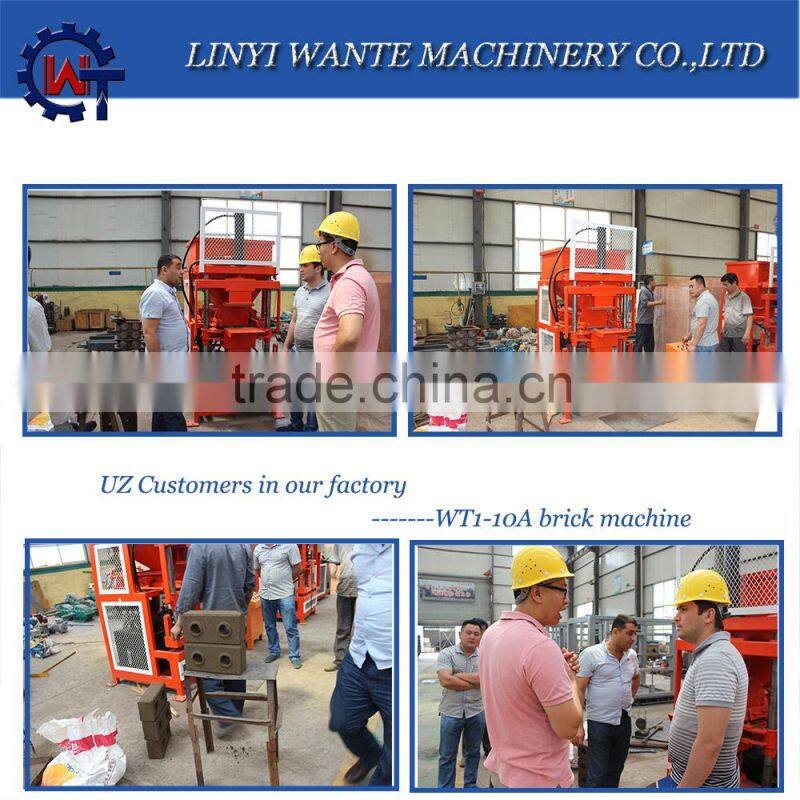

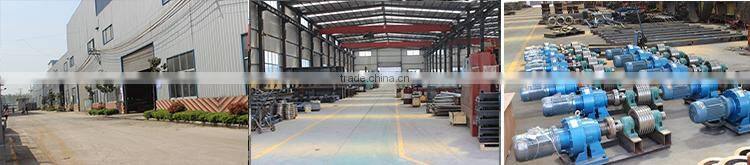

Our facotry |
|
2015 Guangzhou Fair |
Our Team |
|
If you want to get more informations about this machine or our comany,kindly contact Stella yang :
Skype: Stella.yang.qi
Email:
Whatsupp(Mobile): +008618765395011;17853995635
Company Profile

Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
