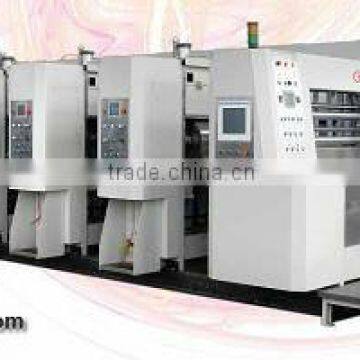

GIGA-LX 708 Flexo Printer machine for making corrugated cardboard

Specifications

GIGA-LX 708 Flexo Printer for making corrugated cardboard

Product Details

Type: Flexographic Printer

Condition: New

Plate Type: Flexo

Place of Origin: Shanghai, China (Mainland)

Brand Name: GIGA LX

Model Number: LX708

Automatic Grade: Automatic

Color & Page: Multicolor

Voltage: 380V

Gross Power: 30-45kw

Dimensions(L*W*H): 8000x7000x2200

Certification: Got CE

After-sales Service Provided: Engineers available to service machinery overseas

Style: Carton machine, Flexo printing machine

Characteristic: Got Ce certification

Characteristic 1: Pressure-free stretching feeding mechanism, Got patent

Characteristic 2: Servo control lead edge feeder for option, Patent got

Advanced equipments: CNC machining center, milling machine, high precision grinding machine

Packaging & Delivery

Specifications

1.Touch-screen,Got CE
2.4 colour flexo printer machine
3.Memory order999 slotter machine
4.CNC adjusting system die cutter

LX307 Automatic Flexo Printer slotter and die cutter machine

Automatic 4 Colour Flexo Printer Machine

Main functions:

Touch screen and electric control dual system.

High quality materials and fittings,memory order 999.

All transmission gears made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62

CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision

Functions of intelligent zero returning and memory reset,Suitable for small size carton

The transmission system adopts two oil pumps circulating lubrication lx708

Feeding Unit.

Back-pushing suck blower feeding system (Lead edge feeder is option)Lx708 Continuous or skip feeding, with counter device, Feeding guide rail use linear bearing to make smooth feeding,  lx307 Synchronous working of automatic feeding and anilox roller to reduce waste, Equipped with dust suck removing machine, to improve printing quality of flexo printing machine.

Printing Unit

Box machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface, Dynamic and static balancing make steadily running, Hanging forme, make installation easy and quick, Forme changing both foot switch, and/or electric control (forward / backward run), Anilox roller auto lifting device synchronous working with paper feeding system (In feeding, anilox roller pressed whereas in stop, it released)

Planetary gear phasing structure

Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control.  Forme roller intelligent zero returning, short cut resetting under dynamic and static condition

 Motorized adjusts digital display the transversal position of the forme roller, up to 20 mm

Slotting Machine Unit

Pre-scoring wheel: Pre-scored paperboard will not crush

Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard

Transverse movement of scoring wheel, doctor wheel and slotting head controlled by motorized button control,  lx708 easy and quick

7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth

Aluminium hand hole punch device.

Die Cutting Unit

New CNC difference adjusting system for rotary die cutting,

Adjusting the error and difference of die-cutter's Cardboard,

Easy operation

Anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface.  Dynamic balancing correction enhances running stability

 Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism , to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber

Mechanical drive anvil roller transverse moves up to ±30mm, and installed with radial differential device, to improve the life of anvil roller

Unique speed difference compensation device makes the anvil roller slide together  to make a perfect die cutting

 Stacking Unit

Connection arm has manual and automatic operation methods

Tension of the driving belt of connection arm can be adjusted alone; quantity of connection arms can be set at will

Platform elevation and transmission motor has braking function,

A pneumatic controlled plate, Anti slipping belt used in the transport bed   lx708
