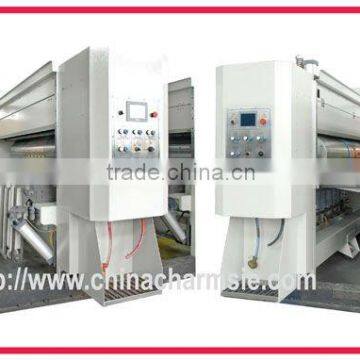

GIGA LX Full Computerized High Speed Flexo Printing Machine
- 10 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Plate Type | Other, flexo | |
| Place of Origin | Shanghai, China | Brand Name | GIGA - LX | |
| Model Number | LX - 708 | Usage | Card Printer | |
| Automatic Grade | Automatic | Voltage | 380v | |
| Gross Power | 65-125KW | Dimensions(L*W*H) | 8M-15Mx7Mx2.2M | |
| Weight | 10mt-25mt | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1:Computerized Flexo Printing Machine2:Ceramic Roller Doctor Chamber
3:Servo Control Lead Edge Feeder
4:IR UV Dryer
LX-708 Full Computerized High Speed Flexo Printing Slotting& Die Cutting machine
Full Computerized High Speed Flexo Printing Machine
Computerized corrugated flexo printing machine main Machine Function
4 - 7Color, with servo control lead edge feeder, vacuum suction conveyor for printer and IR Dryer and UV Dryer,ceramic roller, doctor chamber, UV dryer and IR dryer for option.
- Keep the functions of intelligence zero returning, memory reset and automatic order formation,9999 order memory.
- Dual system of touch screen man-machine interaction and manual electrical control.
- The complete set of machine is operated computerized upon the designing principle of man-machine integration. It can do the job of setting, correction, execution, change and memory, etc. on the touch screen with precise data display in the shortest time.
- Transmission gears are made of high-quality alloy steel 20CrMnTi. The Rockwell hardness of the gears can get to 60 degree and more after the process of carburization quench and fine grinding.
- All rolls and shafts are chrome plated to enhance the hardness.
- Apply the joining with non-keypiece so as to decrease the connection gap and keep long term register accuracy.
- Servo control Lead edge feeder--patent #ZL2005 2 0045628.x Servo motor-quick react, precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;lx808
- Flexo printing machine and carton box making machine prices are very good with very good quality.
1. The value of order over RMB 1 million (including 1 million).
2. Only for boxing machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Model | 1800/2200x1000 | 2500x1200/1400/1600 | 2800x1200/1400/1600 | |
Max. machine speed (pcs/min) | 200 | 160/140/120 | 160/140/120 | |
Max. printing speed(pcs/min) | 180 | 120 | 120 | |
Max. feeding size(mm) | 1770/2170*970 | 2500*1170/1370 | 2500*1170/1370 | |
Skip feeding size(mm) | 1770/2170*1170 | 2500*1370/1570/1770 | 2500*1370/1570/1770 | |
Min. feeding Size(mm) | 650*280 | 650*380/400/450 | 700*380/400/450 | |
Feeding depth (mm) | 2.5-10 | 2.5-10 | 2.5 - 10 | |
Min. slot interval | Positive cut (mm) | 120*120*120*120 | 140*140*140*140 | 140*140*140*140 |
Reverse cut (mm) | 190*50*190*50 | 250*80*250*80 | 250*80*250*80
| |
Max. printing area(mm) | 1750/2150*950 | 2450*1150/1350 | 2750*1150/1350 | |
Standard printing plate thickness(mm) | 7.2 | 7.2 | 7.2 | |
