GIGA LX308 Fully Automatic Corrugated Box Machine for Ukrain

Specifications

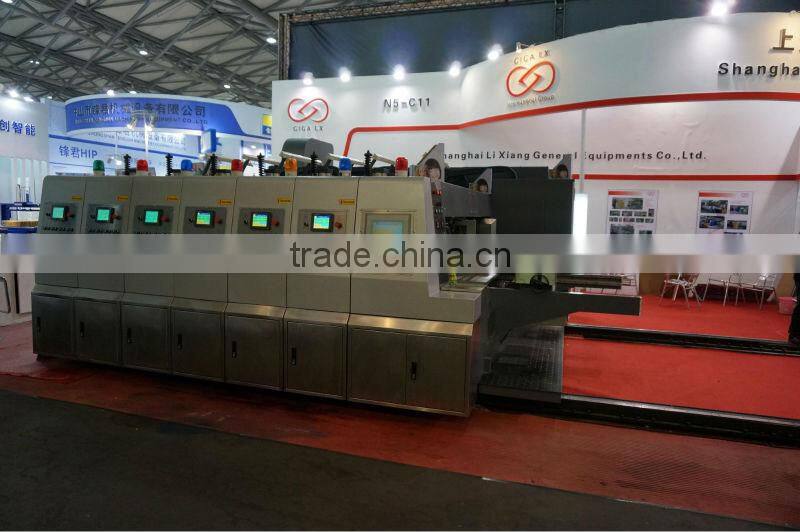

GIGA LX-308 Automatic Flexo Printer Slotter & Die Cutter

Fully Automatic Corrugated Box Machine Main Functions:

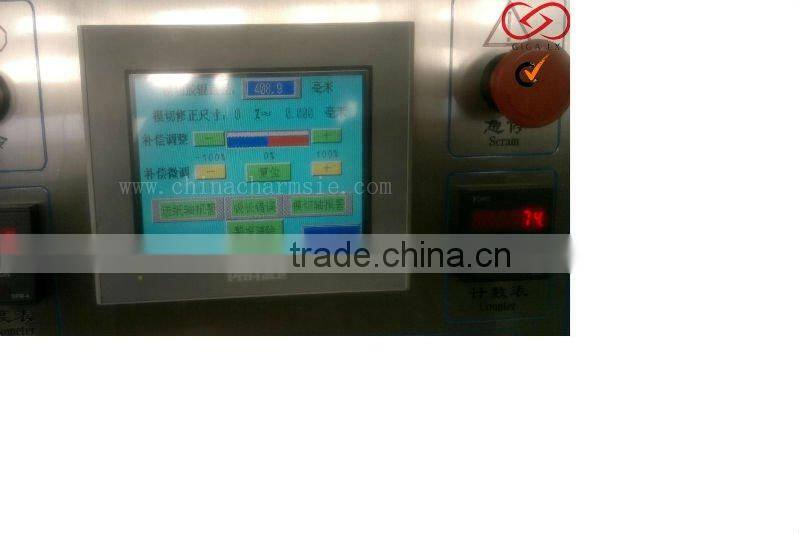

1. Touch screen and electric control dual system lx308
2. All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62
3. CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
4. Functions of intelligent zero returning and memory reset 999 order memory
5. Suitable for small and middl-big size carton and many order change
6. The transmission system adopts two oil pumps circulating lubrication
7. Carton box making machine and box making machine are made in good quality.

We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for Fully Automatic Corrugated Box Machine  LX-308N, LX-608CN LX-707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.

Feeding Unit

1.  Servo control Lead edge feeder--patent #ZL2005 2 0045628.x (Back-pushing suck blower feeding system  is option);
2. Servo motor-quick react, lx308precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
3. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;
4. Pressure-free stretching feeding mechanism is the option;

Printing Unit

1. Carton box making machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface
2. Dynamic and static balancing make steadily running; Hanging forme, make installation easy and quick; Forme changing both foot switch, and/or electric control (forward / backward run)
3. Printing machine anilox roller auto lifting device synchronous working with paper feeding system (In feeding,lx308 anilox roller pressed whereas in stop, it released); Planetary gear phasing structure; Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control.
4.  Electromagnetic clutch printing phase braking mechanism.

Slotting Unit

1. Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
2. Transverse movement of scoring wheel, lx308 doctor wheel and slotting head controlled by motorized button control, easy and quick
3. 7 mm thick slotting knives are made of alloy tool steel by heat treatment and finely ground, sharpened endurable teeth
4. Bi-plate trimming knives with sharpened, endurable teeth.
5. Planetary gear slot phasing structure .
6. Aluminium hand hole punch device.

 Die Cutting Unit

1.  New adjusting system for die cutter, easy operation adjusting the error and  the difference of  die cutter'S cardboard.

2. Box making machine anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface.  Dynamic balancing correction enhances running stability

3. Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber
4. Mechanical drive anvil roller transverse moves up to ±30mm, lx308 installed with radial differential device, evenly spread/distribute abrasion to improve the life of anvil roller, unique speed difference compensation device makes a perfect die cutting .

*Subject to change and improvement without notice
