WT10-15 Slag Concrete Brick Making Machine Parts
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Sand | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 14400pcs/8hr | Place of Origin | Shandong, China | |
| Brand Name | Wante | Model Number | WT10-15 | |
| Voltage | 220/240/380/440V | Power | 20.5KW | |
| Dimension(L*W*H) | 2200X3300X2000MM | Certification | ISO9001&CE | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Nude package, if needed, clients pay for it.
Product Description
WT10-15 slag concrete brick making machine parts in Libya, customer feedback is good.
WT10-15 slag concrete brick making machine parts Main parameters
Overall dimension | 2000X3300X2250MM |
Demold method | Hydraulic |
Turning method | Hydraulic |
Hydraulic system pressure | 16-20Mpa |
Excitation frequency | 3200Hz |
Total power | 20.5KW |
Total mass | 4200KG |
Molding cycle | 10-15S |
Molding | 10 Pcs/mould(400*200*200/390*190*190 mm) |
Capacity | 2000-9000Pcs/hour |
Types of bricks can be made | All kinds of moulds can be made by customers' drawings |
Moving method | Automatically move and hydraulic steering |
Excitation way | Three-dimensional box excitation |
Raw material | Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |

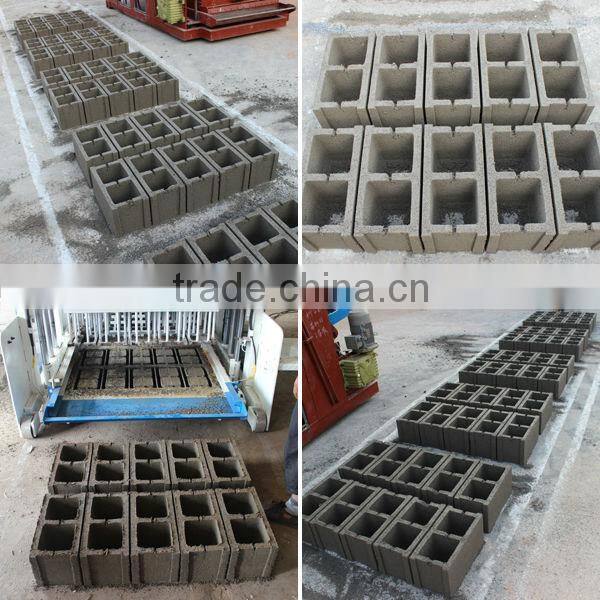

Blocks make by our machine
Block size is 400x200x200mm, thickness is 2.5cm. Material proportion is stone
powder (for test). The common used raw material is sand, cement, crushed stone.

WT10-15 slag concrete brick making machine parts Block capacity
Size | Size mm | Cycle | Pcs / Mold | Per hour | Per day |
|
400*200*200 |
20-25s |
10 |
1500pcs |
12000pcs |
|
400*150*200 |
15-20s |
14
|
1800pcs |
14000pcs |
WT10-15 slag concrete brick making machine parts design

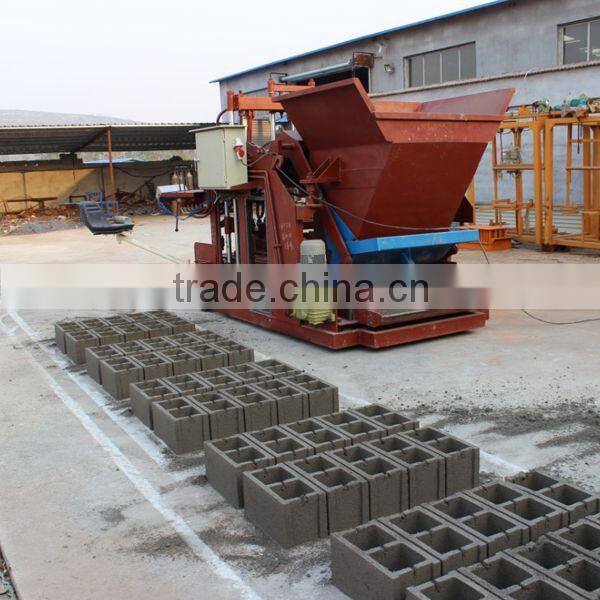

Machine test
1.Advanced controlling system
slag concrete brick making machine parts with manual hydraulic control.we use perfect
hydraulic valve,it is safe and easy operation
2.Powerful hydraulic pressing system
slag concrete brick making machine parts with hydraulic pressing,combining with the poweful
mold vibration.can achieve more than 25 Mpa pressure.the block density will be perfect.
3.Fast and quick feeding system
slag concrete brick making machine parts rake feeding system mounter with multirow
of stirring forkscan quickly and evenly discharge the materials into the molding box.
4.Multiply function and high efficiency
According to the production, change different moulds. slag concrete brick making machine parts all kinds of blocks. standard bricks, cellular bricks
5.Big capacity
Smalle investment but get a big capacity,the machine can produce more than 10000 pcs/day with 400x200x200MM block.its capacity equal to the stationary machine, but its price is lower.
Customer visit our factory
Contact person: betty Skype: bettyliu4260 Tel: 0086-18315730268
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
