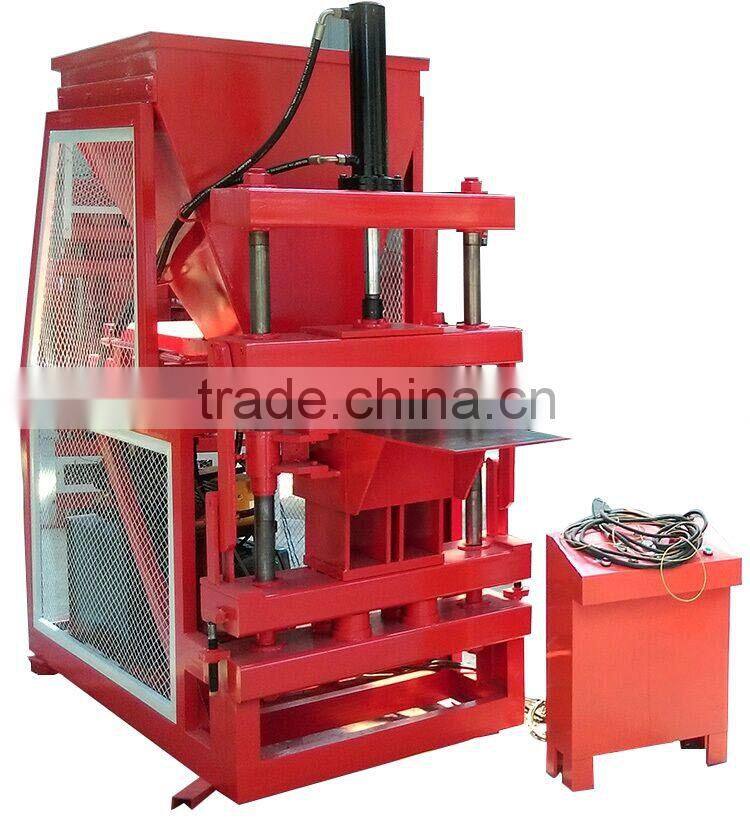

WT2-10 Fully Automatic Interlocking Brick Machine in Africa
- qingdao
 - T/T Credit Card

You May Like
-


WANTE BRAND WT2-10 Clay Brick Machinery Manufacturer With Factory Price
 -


WANTE BRAND WT2-10 Fully Automatic Clay Brick Making Machine for Sale With Great Price
 -


WANTE BRAND WT2-10 Clay Brick Making Machine no Need Burn for Sale
 -


WANTE BRAND WT2-10 Fully-auto Brick Making Machine Line Soil Screen
 -


Diesel Engine WT1-20M Hydraulic Pressing Brick Machine/clay Solid Brick Machine
 -


WT2-10 Clay Brick Making Machine With Big Capacity and Good Density

Product Details
| Condition | New | Type | Interlock Block Making Machine | |
| Brick Raw Material | Clay | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 4000-6000 Pieces/day | Place of Origin | Shandong, China | |
| Brand Name | WANTE | Model Number | WT2-10 | |
| Voltage | 220V/380V(adjustable) | Power | 7.5kw | |
| Dimension(L*W*H) | 1000*1200*2400mm | Certification | ISO,CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
nude package
Product Description

WT2-10 clay brick making machine introduction  |
1.High capacity:improved from WT1-10,can produce 2 blocks/mould.

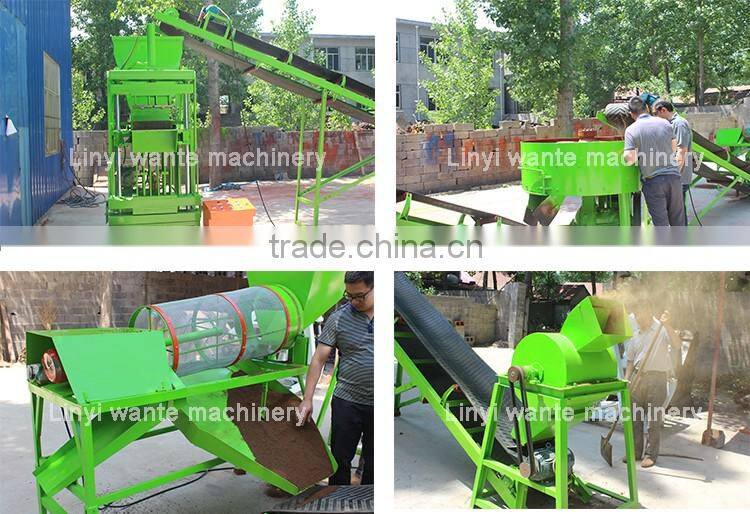

2.Automatic interlocking brick production line
3.Hydraulic press
4.Can produce different kinds of interlocking bricks
WT2-10 clay brick making machine specification  |
     | WT2-10 hydraulic interlocking block machine  | |
Overall size  | 2500(L)×900(W)×2300(H)mm  | |
Shaping cycle  | 6-8 seconds  | |
Power  | 7.5 KW  | |
15 Hp diesel engine  | ||
Pressure  | 16Mpa  | |
Total weight  | 1300 KGS  | |

  | Conveyor belt  | |
Belt width (M)  | 6  | |
Belt length (M)/KW  | 6/2.2  | |
Belt speed (M/S)  | 2  | |
  | JD350 mixer  | |
Overall size  | 1200(L)×1200(W)×1300(H)mm  | |
Shaping cycle  | 5 mins  | |
Volume  | 350L (25Kgs Cement)  | |
Electricity  | 380V/220V/ (adjustable)  | |
Total weight  | 330KG  | |
WT2-10 block making machine capacity  |
No.  | Block photo  | Block size  | Pcs/mold  | Pcs/hour  | Pcs/day  | Weight  |
1  | 300x150x100mm  | 2  | 600~720  | 4800-5760  | 4.5kgs  | |
2  | 300x150x100mm  | 2  | 600~720  | 4800-5760  | 7.4kgs  |

Clay promotion:
This is the most popular proportion in making block making machine:
1. Cement,clay
Raw Materials  | Quantity per piece  |
Water  | 3%  |
Cement  | 6-8%  |
clay  | 80-90%  |
Other specify  | You can change the proportion depend on your needs. This block is heavy,but strong  |
2. Full clay
Raw Materials  | Quantity per piece  |
Water  | 3%  |
clay  | 90-95%  |
Other specify  | You can change the proportion depend on your needs. This block is light,but not so strong  |

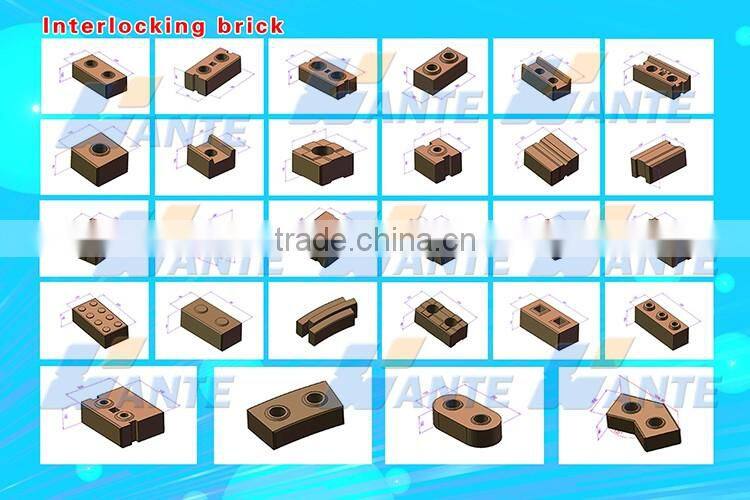

3.interlocking brick sample
