WT1-10 Diesel Engine Interlocking Brick Machine Hot New Products for 2016
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WT2-10 Fully Automatic Interlocking Brick Machine in Africa
-
WANTE BRAND WT2-10 Clay Brick Machinery Manufacturer With Factory Price
-
WANTE BRAND WT2-10 Fully Automatic Clay Brick Making Machine for Sale With Great Price
-
WANTE BRAND WT2-10 Clay Brick Making Machine no Need Burn for Sale
-
WANTE BRAND WT2-10 Fully-auto Brick Making Machine Line Soil Screen
-
Diesel Engine WT1-20M Hydraulic Pressing Brick Machine/clay Solid Brick Machine
Product Details
| Condition | New | Type | Interlock Block Making Machine | |
| Brick Raw Material | Clay | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 3600Pcs/day | Place of Origin | Shandong, China | |
| Brand Name | Wante | Model Number | WT1-10 | |
| Voltage | 380V/220V/ (adjustable) | Power | 5.5 KW or 12 Hp diesel engine(optional) | |
| Dimension(L*W*H) | 1400(L)*1100(W)*2100(H)mm | Certification | ISO9001:2008&CE | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
nude packing if needed, customer pay for it.
Product Description
| 1.Main advantage | |
| >1.automatic material feeding,mould pressing and lifting,saving labor cost. | |
| >2.diesel engine and motor two types you can choose,it is convient to the area where have no electirc. | |
| >3.can change mould in one equipment ,you don't need buy another machine to make different bricks. | |
| >4.no need pallet,so it wiil save much cost and aviod second damage to the brick. |
2. technical parameters | |
Overall size | 1400(L)×1100(W)×2100(H)mm |
Shaping cycle | 6-8seconds |
Power | 5.5 KW |
12 Hp diesel engine | |
Pressure | 16Mpa |
Total weight | 1100 KGS |
capacity | 300*150*100mm(600pcs/Hr) 250*125*65mm(600pcs/Hr) |
raw material | clay,sand, cement |

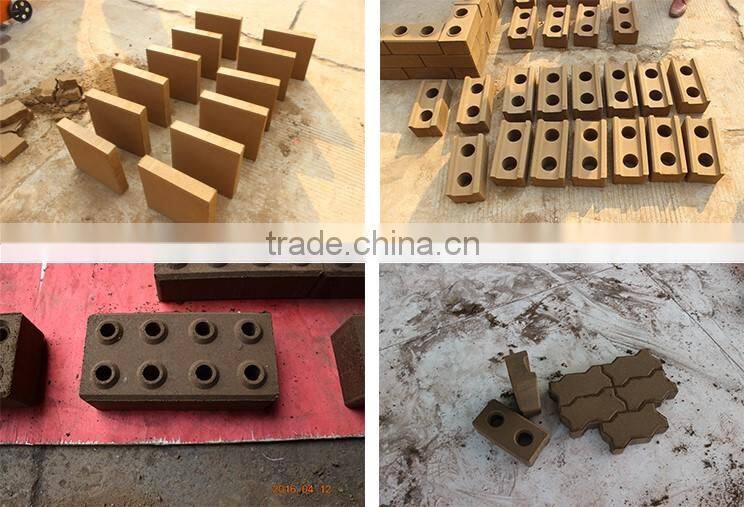

applied product | clay interlocking bricks |

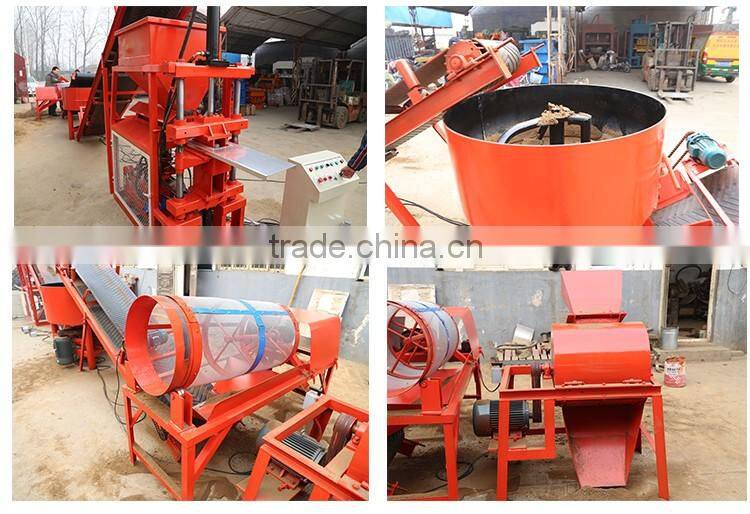

WT1-10 automatic clay brick making machine production line composition
1.WT1-10 host machine
il crusher
il screen
4.belt conveyor
5.JD350mixer
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, planThe condition of building factory, feasibility analysis for brick machine production line)(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime,if you need, we can Make inVitation
card for you.
(5) Introduce the company file, product categories and production process.
Sale:(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix,and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time,keep well communication with each other
If you want more information,such as shipping cost,machine vidio,catalogue,detail photos and so on,please click"send"below, I will do best to help you.
↓
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
