Home > Products > Clay Interlocking block machine > WT1-25 Eco Brava Manual Interlocking Brick Making Machine Supplier's Choice
WT1-25 Eco Brava Manual Interlocking Brick Making Machine Supplier's Choice
- Qingdao port or any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
WT1-25 Eco Brava Interlocking Brick Machine Price
-
WT1-25 Eco Brava Manual Soil Block Machine
-
2016 Trade Assurance WT2-10 Double Brick Making Machine Double Mold Interlock Brick Making Machine
-
2016 Trade Assurance WT2-10 Manual Hand Interlocking Brick Making Machine Line
-
2016 Trade Assurance WT2-10 Concrete Interlock Block Making Machine, Brick Making Machine
-
2016 Trade Assurance WT2-10 Fully-automatic Hydraulic Clay Interlock Forming Machine
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Clay | Processing | Brick Molding Machine | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 2000-4000 pcs per shift | Place of Origin | Shandong, China | |
| Brand Name | Wante | Model Number | WT1-25 hydraulic type block machines for interlock block | |
| Voltage | 220v/240v/380v/440v/adjustable | Power | 5.5 kw | |
| Dimension(L*W*H) | 1500x600x1400 | Certification | ISO9001&CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Nude package in one container
Plywood package in less than one container
Product Description
WT1-25 eco brava manual interlocking brick making machine

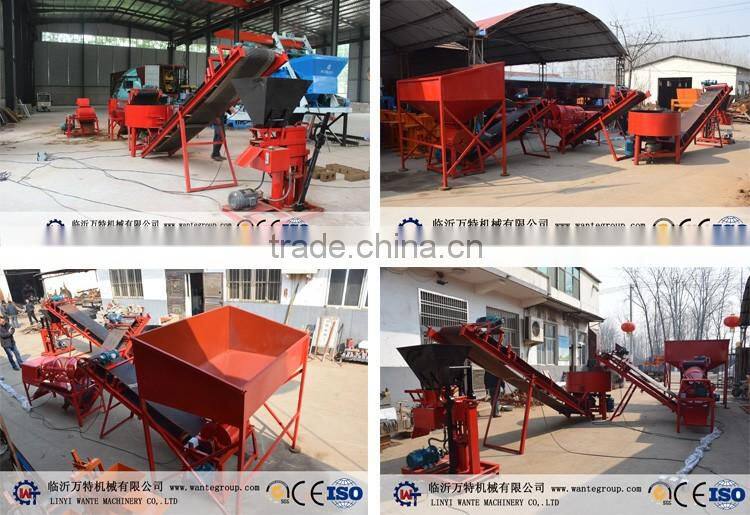

>>PRODUCTION LINE
>>PRODUCT DESCRIPTION
WT1-25 eco bravao brick machine absorb the technology from abroad and combines with chinese improvement, the
who le production line includes material hopper, three conveyor belts, crusher,soil screen and mixer. This line helps to
decrease the labor intensity.
1>Simple operation, with consideral capacity
2>Diesel motor and electrical motor two types
3>Customizes mould design and logo design
4>Small scale, no need big ground
This machine is designed to make interlocking , hydraform bricks. when building ,just lock them together. Using clay or soil
or concrete materials. Its pressure up to 16 Mpa.You can take the block directly after its shaping.
>>PARAMETERS
Main specification and technical parameters | |
Overall size | 1500(L)×600(W)×1400(H)m |
Shaping cycle | 20seconds |
Power (choice) | 5.5 KW |
6-8 Hp diesel engine | |
Pressure | 16Mpa |
Total weight | 400 KGS |

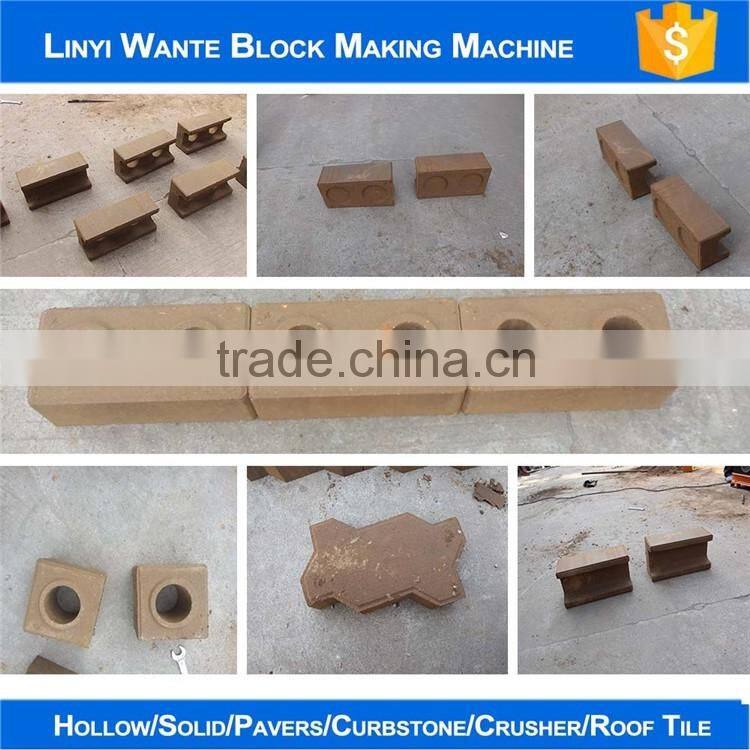

>>BRICK SAMPLES
This machine can make all the follwing interlocking bricks by changing moulds:
>>CAPACITY
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day |
1 | 290x140x105mm | 1 | 250-300 | 2000-2400 |

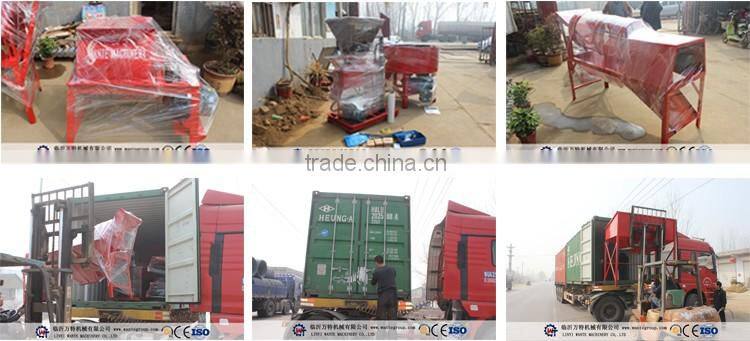

>>PACKING AND SHIPPING
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However,
if the customer required, we could use their own nominated shipping service.
>>OUR SERVICE
----- Sales team & Technology team
1. Help buyers choose the suitable machine .
2. We can offer the invitation if the buyers want to visit our facotry.
3. Inform the buyers about the produce process timely.
4. Offer the manual book and machine video when delivery.
5. 24 hours on line, buyers can talk to us any time.
>>COMPANY INTRODUCTION
Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free block machine.We are
always the leading company in the field of block macihines industry. for now, we have achieved essential ceticifications
domestic and overseas,such like ISO9001,CE.
Our products are Automatic Burn-free brick making machine, concrete brick machine, clay brick machine,mobile brick
machine mixer,batching machine .Our company posses more than 2000 employees,and one third of them are professio
nal engineers.
-------WELCOME TO OUR FACTORY
---- OUR SPARE PARTS WORKSHOP SHOWING
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
