Home > Products > AAC production line > Sand AAC machine plant design and drawing freely
Sand AAC machine plant design and drawing freely
- Qingdao
- T/T Credit Card
You May Like
Product Details
Condition | New | Type | Hollow Block Making Machine | |
Brick Raw Material | Fly Ash | Processing | Brick Production Line | |
Method | Autoclaved Aerated Concrete | Automatic | Yes | |
Capacity | 50000-300000m3/year | Place of Origin | Shandong, China | |
Brand Name | Wante Brand | Model Number | AAC | |
Voltage | 380V/50Hz(220V) | Power | 350-1300KW | |
Dimension(L*W*H) | 2100x2100x1980mm | Certification | ISO9001&CE | |
Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Bulk or standard container.
Product Description
Sand AAC machine plant information
Sand AAC machine plant main parameters
Brick raw material: Sand, cement, quicklime,aluminum powder.
Power: 250~1250kva.
Certificate: ISO/CE/CIECC
Style: Full automatic.
Method: Hydraulic pressure.
Capacity: 30000-300000m3/annual.
The porous rate: 70-80%.
Density: 400-700kg/m3(concrete usually:1600-2400 kg/m3)
Block size: length 600mm, width 100/125/150/200/250/300mm, height 150/200/250/300mm.
Sand AAC machine plant production line
50000 m3 /year production line
100000 m3 /year production line
150000 m3 /year production line
200000 m3 /year production line
300000 m3 /year production line
Sand AAC machine plant raw material proportion
Name | Unit | Cement Lime Sand |
Sand | % | 55-65 |
Cement | % | 10-20 |
Lime | % | 20-30 |
Gypsum | % | 2-3 |
Aluminum powder paste(600kg/m3) | 1/10000 | 8 |
Water & material rate |
| 0.65-0.75 |
Casting system | OC | 35-38 |
Aluminum mixing time | S | 30-40 |

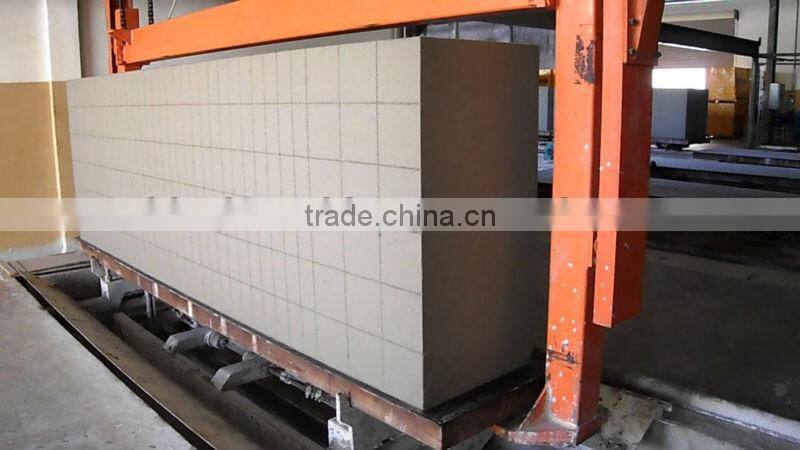

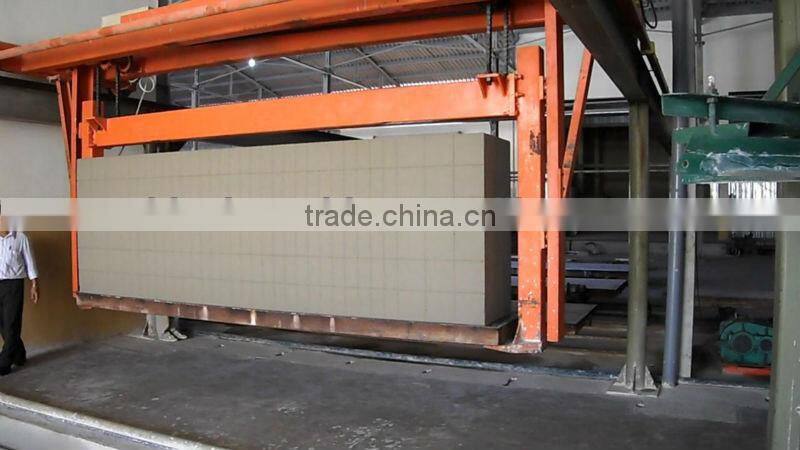

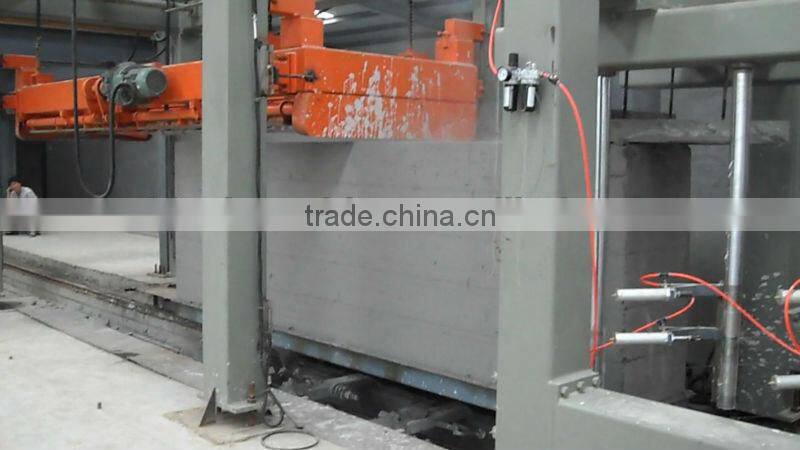

Ytong technology AAC block production line pictures

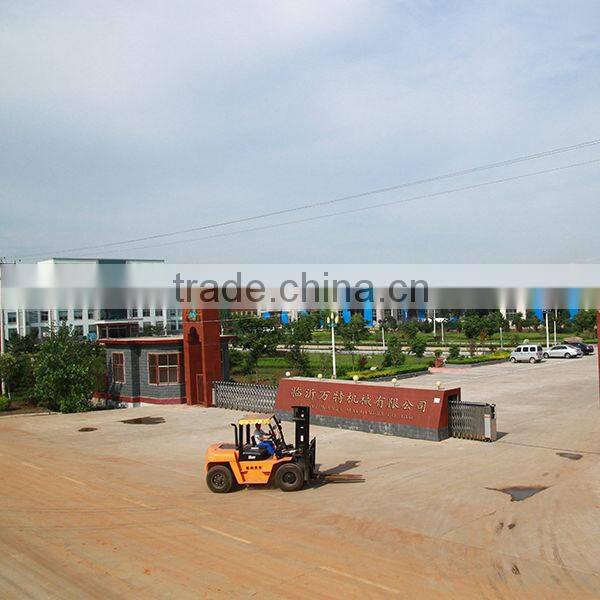

Welcome to our factory
Thanks for your attention, waiting to talk more details with you.
Contact: Betty Liu Tel: 0086-1831573068 Skype: bettyliu4260
Company Profile

Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry. Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation. Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service. We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
