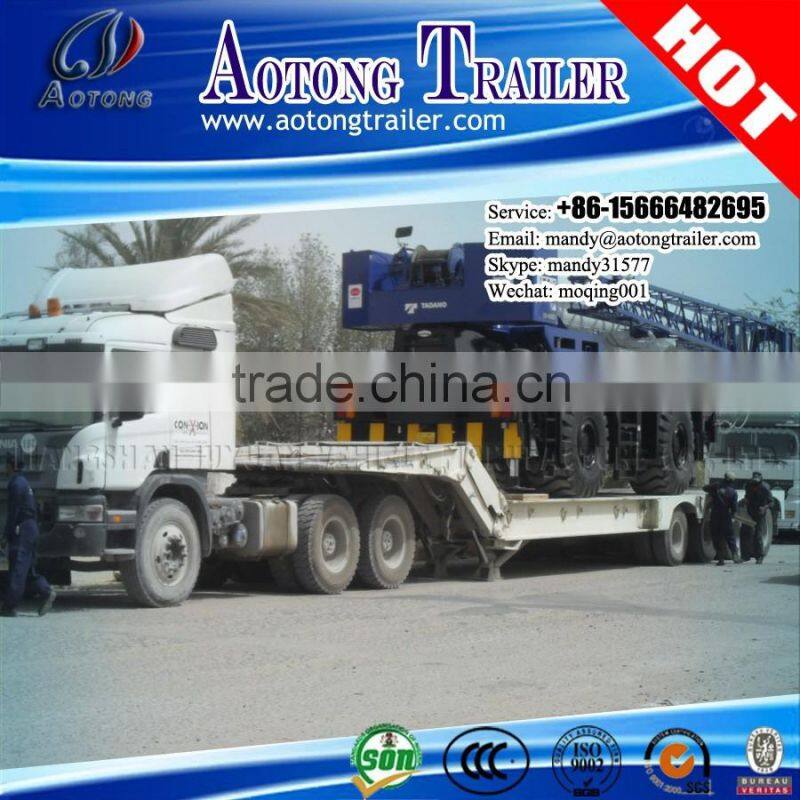

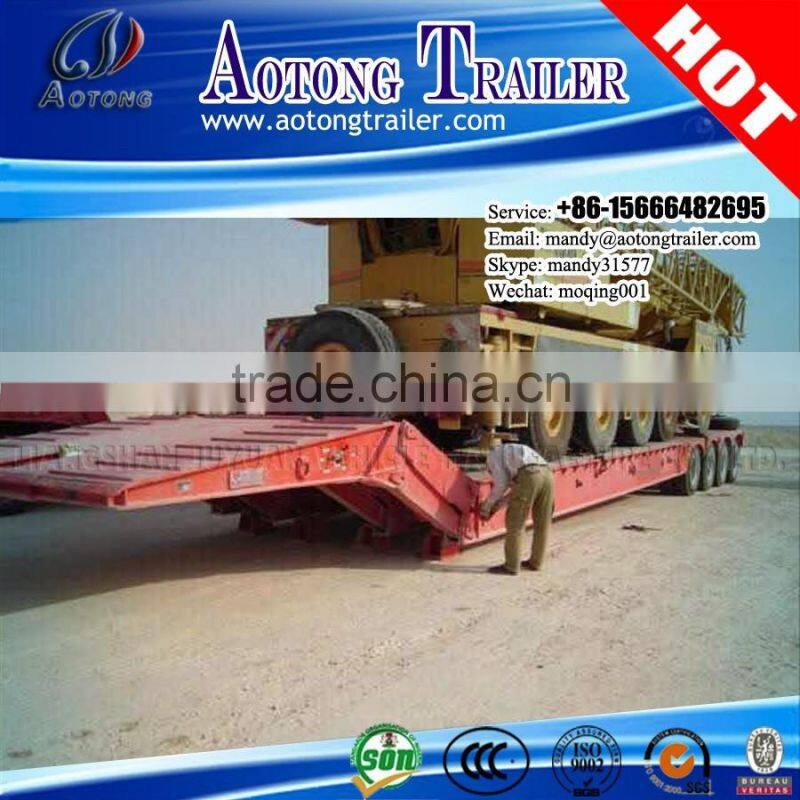

4 Axle 100 Tons Folding Gooseneck Low Loader, Lowboy Semi Trailer For Sale Quality Choice
- Qingdao/Tianjin
- T/T Credit Card
You May Like
-
80 Tons Low Bed Semi Trailer With Folding Gooseneck For Saudi Arabia
-
Tri-axle Folding Gooseneck Lowboy, Low Bed Semi Truck Trailer For Sale
-
Hot Sale Heavy Duty Low Bed Trailer for Transport Large Tanks (lowboy)
-
Hydraulic Axle Toneladas 200 Cama Baja, Hydraulic 200 Tons Low Bed Semi Trailer for Chile
-
Best Selling Heavy Duty Self Propelled Hydraulic Axis Modular Trailer on Sale
-
China Manufacturer Hot Sale Retractable Semi Trailer Flatbed Trailer for Wind Turbine Blades Transportation
Product Details
| Type | Semi-Trailer | Material | Steel | |
| Certification | Other, ISO/CCC/SGS/SONCAP | Size | 16*2.5*1.2 METERS | |
| OEM No. | juyuan special vehical manufacturing co. ltd | Max Payload | 100ton | |
| Place of Origin | Shandong, China | Brand Name | AOTONG | |
| Model Number | LAT9282TDP |
Product Description
- Creative design for your own special transportation program.
- High tensile steel provides the strongest performance of semi trailer.
- Automatic submerged arc welding and straightening machines make best main beam.
- One coat blasting plus two coats polyester painting.
- Standard and Brands of semi trailer parts can be chosen according to different requests.
- Necessary accessories offered.
4 axle 100 Tons Folding Gooseneck Low Loader, Lowboy Semi Trailer For Sale
Model No. | LAT9406TDP |
Basic Specifications | Loading deck is 18m long |
Overall Dimensions | 18000 x 2600-3800 x 1500 mm(1300mm deck) |
Related load | 50 tons |
Tare weight | 18000KGS |
Running Gear |
|
Axle Specs | 16T FUWA axle; 3 pieces |
Tyre specs | 12.00R20; 12 pieces +1spare tire |
Rims | 8.5-20; 12 pieces + 1 spare rim |
Suspension System | Leaf spring suspension |
Brake System | Dual line pneumatic brake system,T30/30 air chamber; parking brake; WABCO valves |
Under Frame | Main Beam is height 500mm Q345B |
Thickness | Upper plate: 25mm; Middle plate: 12mm Lower plate: 25mm |
Cross beam | 80*40 square tube |
Boundary beam | 16mm channel beam |
Platform | 40mm thick; width extendable |
Goose neck | Hydraulically lift and folding goose neck |
Kingpin | 2’ or 3.5’ interchangeable |
Landing Gear | 28T heavy duty |
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness); |
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Painting | Three coats painting; Any color will be available |
Accessories |
|
Tool Box | One tool box with a set of standard trailer tools |
Spare Tyre Carrier | One piece |
Power station | Hydraulic station |
Fender | Plastic fenders |
1. This series tipper semi trailer applicable for the transportations of the heavy machines,equipment.
2. The capacity is for 60tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension

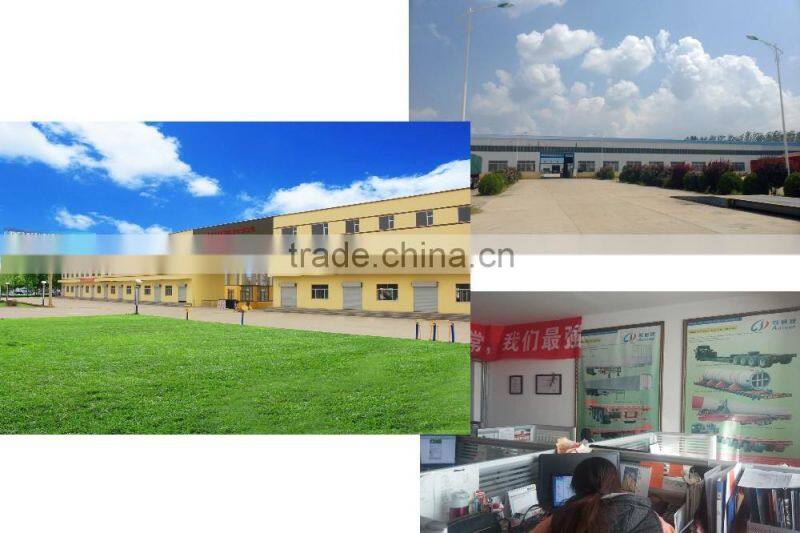

Established in 2000, our factory is specialized in the manufacture of folding gooseneck lowboy semi trailer. Located in Liangshan,Jining. We enjoy convenient access to major transportation networks. Our factory covers an area of 45,000 square meters and has around 500 staff members. Furthermore, all our folding gooseneck lowboy trailer are manufactured with advanced equipments and strict QC procedure in order to ensure high quality.
Wih stable and timely supply, credible quality and sincere service, our folding gooseneck lowboy semi trailer sell well in both domestic and overseas market...
Welcome to visit our factory and we will pick you up at airport!

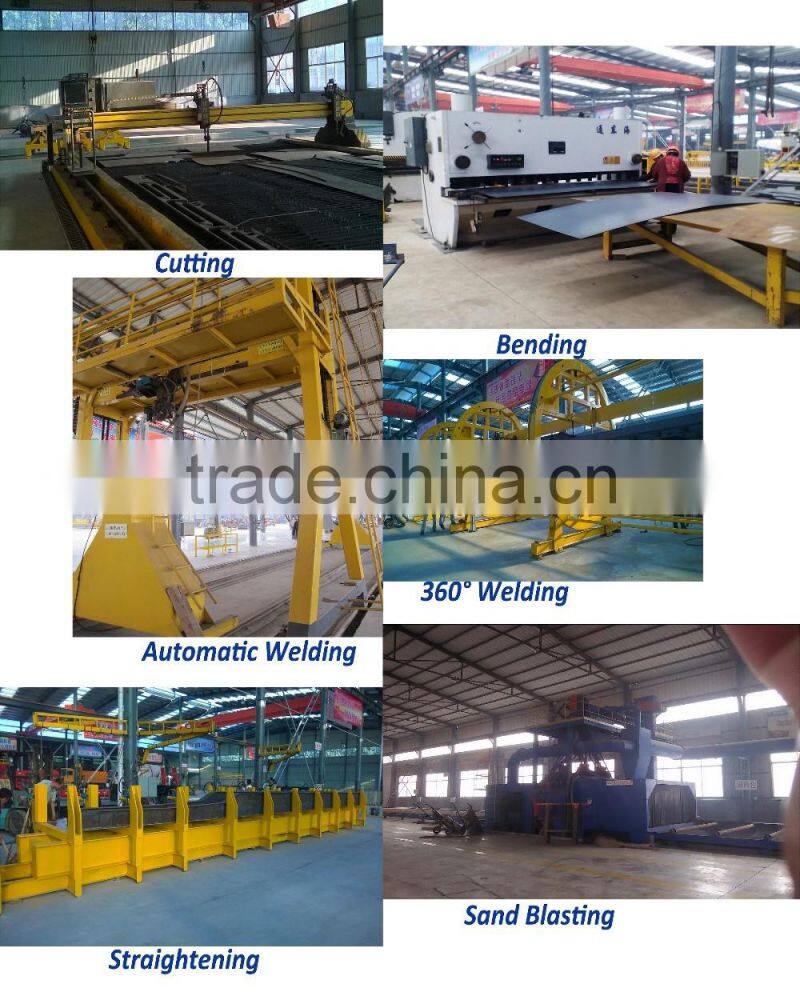

Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used |
|---|---|---|---|
| CNC Flame Plasma Cutting Machine | GS | 2 | 4.0 |
| Press Machine | JC21-160 | 4 | 4.0 |
| Hydraulic Plate Bender | WC67Y-200/4000 | 2 | 3.0 |
| Hydraulic Pendulum Plate Shears | QC12Y-12*3200 | 2 | 3.0 |
| Drilling Machine with Jointed Arm | ZN3050*16 | 4 | 4.0 |
| Shaping Machine | BS6065 | 2 | 4.0 |
| Universal Rotary Milling Machine | X6232 | 1 | 4.0 |
| CNC Lathe | EL6140N | 2 | 4.0 |
| Saw Machine | GD4028N | 2 | 5.0 |
| Expander | ZX-3000 | 1 | 3.0 |
| Rolling Machine | W11-4-200 | 2 | 3.0 |
| Automatic Round Welding Machine | W11SNC-10-6500 | 1 | 4.0 |
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
Yes, we offer customized design and logo for reasonable type.
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
Attn: Mandy Ma
Exporting Manager
Tel/WhatsApp/Viber : +86-15666482695
Wechat : moqing001
Skype : mandy31577
QQ : 735618008
