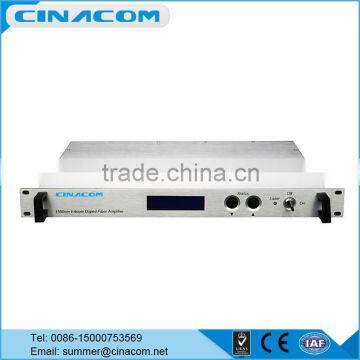

1550nm CATV Signal Booster

CNOA1550 series is a CATV booster EDFA with gain spectrum band within 1540~1565nm. It is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). Generally, fiber CATV system operates in single wavelength that has no strict requirement on gain flatness. CNOA1550 booster amplifier is featured with low NF, high-saturated output power. It is applicable for central bureau, sub-bureau and line relay, as well as other optical communication network. CNOA1550 is applied most commonly and widely compared with other EDFA in CATV system.

CNOA1550 adopts the world's top class pump laser and America OFS erbium-doped optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port. The LCD at the front panel offers the work index of all equipment and warning alarm. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port can be installed in the front panel (also can be in the back panel if customers specify).

CNOA1550P: The output power is adjustable. Users can adjust the output power in the range of -6dB~0dB with ±0.2dB stepping through the button at the front panel and can provide redundancy standby to the system upgrading and aging.
