1550nm CATV Signal Booster Optical Amplifier Series

CNOA5436 series is a low noise, high performance, FTTP high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently. Each 1550nm (CATV)'s out-put optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the datasheet and reliability of the system. CNOA5436 optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

CNOA5436 optical amplifier adopts the world's top class pump laser and America OFS erbium-doped optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port. The LCD at the front panel offers the work index of all equipment and warning alarm. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port of optical amplifier can be installed in the front panel (also can be in the back panel if customers specify).

CNOA5436A optical amplifier: 1RU chassis, total output power>1000mW, offers 16 optical outputs at most.

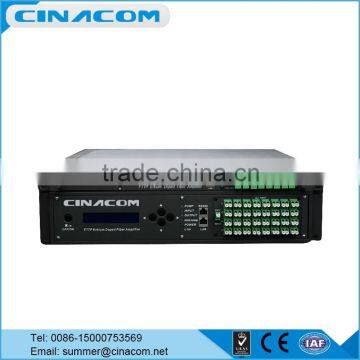

CNOA5436B optical amplifier: 2RU chassis, total output power>5000mW, offers 64 optical outputs at most.

•      1540~1563nm operating bandwidth

•      500~5000mW (27~37mW) high output power

•      Low noise, high performance, high reliability

•      8~32 uplink optical port, used in OLT

•      8~32 1550nm output optical port, multiplex 1310/1490nm data stream.

•      Can be compatible with any FTTx PON Technology:EPON/GEPON, GPON, BPON, DPON

•      Perfect RS232, SNMP

•      Efficient space, flexible installation and easy operation

•      Excellent P/P ratio
