Home > Products > Fiber Optic Equipment > 1*32 PLC Rack Mount Optical Splitter

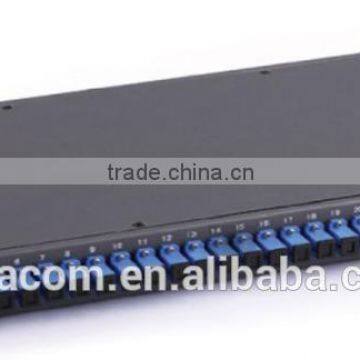

1*32 PLC Rack Mount Optical Splitter
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | CINACOM | |
| Model Number | CNOS-1*32 |
Product Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: 1260-1650nm
- Wide Operating Temperature: -40°C - 85°C
- High Reliability and Stability
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | SMF-28e or customer specified | |||||
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~85 | |||||
Storage Temperature (°C) | -40~85 | |||||
Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
