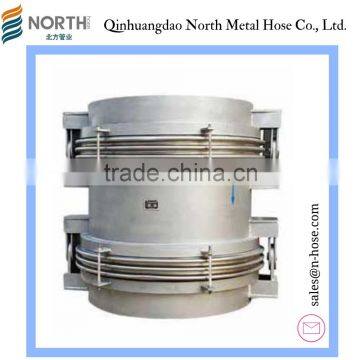

Double Hinged Metal Expansion Joint, Compensator for Thermal Expansion Solution

Product  Description

Product name : Expansion Joint/Compensator/Metal bellow expansion joint

Connection : Loosen & Fixed flange ends

Flange standard: ANSI, JIS,DIN, BS, GB

Flange materials: Stainless steel/Carbon steel

Bellow material : Stainless steel SS304/SS316L/SS321

Tie Rods material: Carbon steel

Place of Origin: Hebei, China (Mainland)

Brand Name: North Metal Hose

Length : As customer required

Type: Coupling

Technics: Forged

Shape: Equal

Certification: ISO9001:2008, TS

Welded Line Type: Longitudinal

Temperature :  -196 to +600℃

Working pressure : PN10 PN16 PN25

Medium: air,oil,water,gas, chemical,powder,etc

Business Type : Manufacture

Customized: Yes

HS code:73072900

The feature of Double hinged metal expansion joint:

• Lateral and Angular movement in one plane
• Contains pressure thrust forces
• No main anchors required
• Minimum guiding required

This model is designed to absorb lateral and angular movements in only one plane.  It is made up of two bellows joined together by a linking pipe and fitted with welding ends or flanges plus a double articulated system. The hinge mechanisms are designed to contain pressure thrust.

Years of experience and innovation, combined with extensive references from multiple industries illustrate our abilities as a committed, problem-solving and rapidly developing manufacturer. Utilizing the very latest technologies we maximize efficiency throughout the entire design and manufacturing process. We strive to deliver excellence. We dare to take on challenging tasks and develop client-centred solutions to match customer requirements. It’s our firm belief that commitment to customers and staying true to our values results in long lasting and mutually valuable business partnerships.
