Automatic Rotary Bag-given Sachet Packing Machine for Liquid Products
- any port in China
- T/T
You May Like
Product Details
| Condition | New | Function | Filling, Sealing | |
| Application | Food, Other, Food, Machinery & Hardware | Packaging Type | Bags | |
| Packaging Material | Plastic | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 380V | |
| Power | 2.3kw | Place of Origin | Zhejiang, China | |
| Brand Name | rezpack | Model Number | RZ8-200/300 | |
| Dimension(L*W*H) | 1675*1535*1480 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

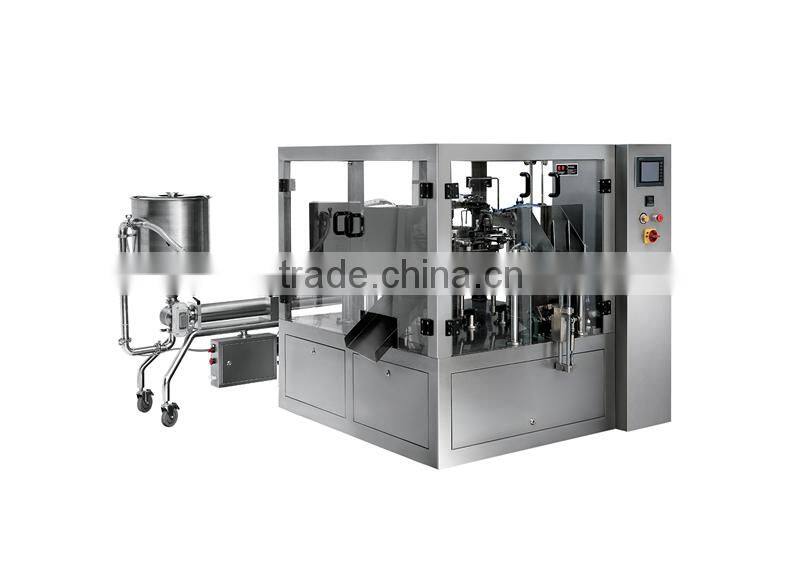

Automatic Rotary Bag-given Sachet Packing Machine for Liquid Products
Performance and features
1.wide applications: various state and nature of liquid & thick liquid;
2.A wide range of pouches: all kinds of pre-made pouches;
3.Easy to operate: PLC controller, HMI system makes easy operation;
4.Easy to adjust: change different pouches within 10 minutes;
5.High automation: unmanned in weighing and packing process, machine alarm automatically when failure;
6.Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;
7.The product contact parts are adopted SUS304 stainless steel to ensure sanitation and safety, meet the GMP standard;
8.Imported engineer plastic bearings, no need to oil, no contamination;
9.Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;
10.Waterproof design:direct water-washing the machine surface,easy to clean, prolong the useful life
11.Pre-made bag packing: perfect sealing quality, upgrade the finished product.
Technical parameters
Equipment model | RZ8-200 |
Equipment material | 304 stainless steel |
Pneumatic component | SMC,AirTAC |
Vacuum component | Vacuum generator (SMC) |
Drive mode | Frequency conversion motor drive |
Measuring type | Liquid filler, peristaltic pump, draw-off pimp |
Operation interface | Touch screen(double language:Chinese and English) |
Bag materials | Heat sealable film as PA/PE,PET/PE,AL film etc. |
Bag size | W:70~200mm L:100~300mm (date coding requires≥140mm length) |
Filling range | 5~1500g |
Packing speed | 20~45bags/min (depended on the product and filling weight) |
Package accuracy | Error≤±1% |
Weight | 1000kg |
Dimension | 1675*1535*1480(L,W,H) |
Total power | 2.3kw |
Driving power source | 380V Three-phase Five-line 50HZ |
Control power source | DC24V |
Compress air requirement | ≥0.45m³/min (compress air is provided by user) |

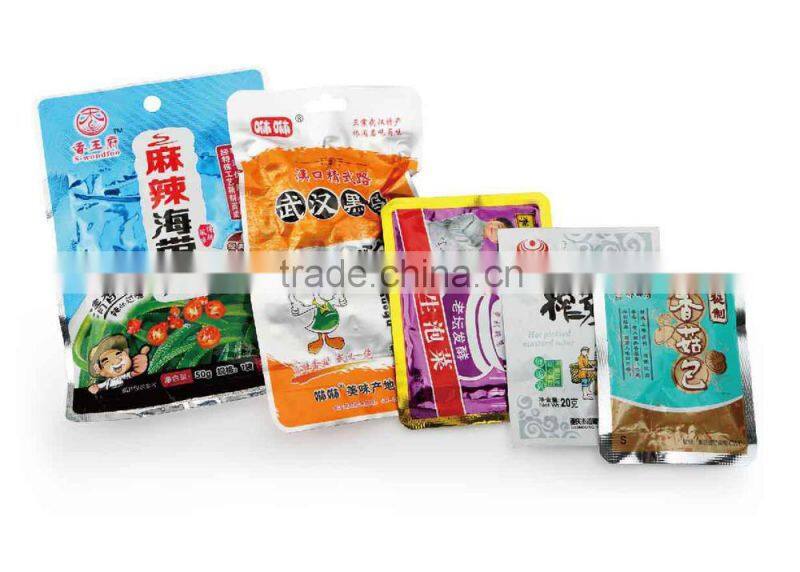

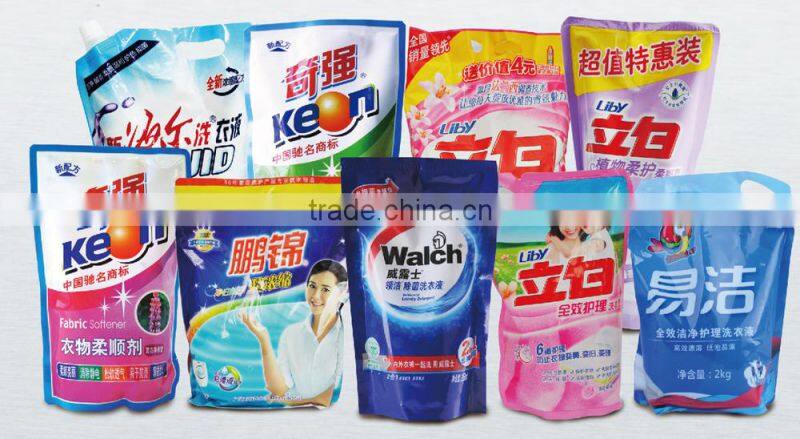

Bag types
Standup bag, portable bag, Zipper bag, 4-side sealing bag, 3
side sealing bag, paper bag, M type bag etc, and all kinds of compound bags.

Applications
All kinds of liquid and thick-liquid (sauce), such as fruit juice, seasoning sauce, tomato sauce, peanut butter, jam, chili sauce, hand sanitizer, liquid detergent and so on.
Station process
1.bag feeding coding 3.bag opening 4.filling 5.filling 6.heat sealing 7.heat sealing 8.forming&output
About us



RezPack Machinery Inc. is a specialist in automatic packaging equipment and services.
With experience of 20 years, a team of highly qualified professionals, and the most advanced design and manufacturing technologies, we offer innovating solutions in packaging equipment and systems with a main target, to contribute an additional value to customers.
We are a flexible packaging industry leader with an extensive product line, leading edge designs and the strongest commitment to customer service.
As an ISO9001 certified company, we constantly focus on the quality of our products, so we passed the CE certification.
Thousands of our machines are used in a variety of industries including food, beverage, hardware, electronics and pharmaceuticals.
Our customers are primarily in the USA, Canada and South America. Installations can also be found in many European countries, the Middle East, New Zealand and Australia.

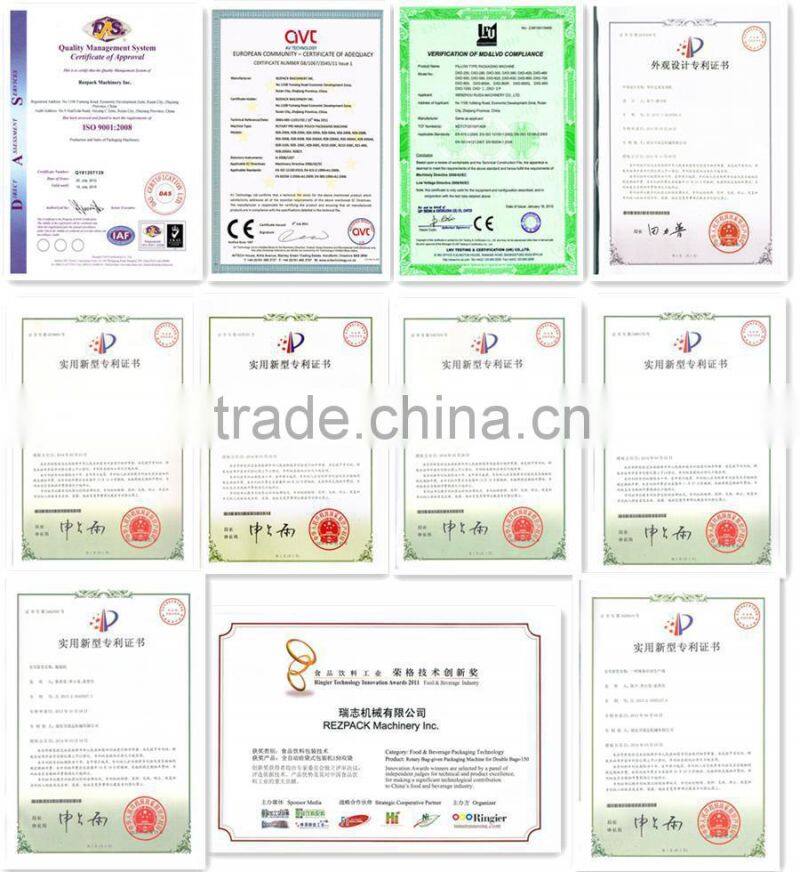

certificate
