PCBA Design and Assembly

PCBA Production

--Welcome any OEM and ODM service

--prototype/trial order: if you don't have the original gerber files, please just send us the original prototype for dupulication. We can copy it just from the real sample.

---Mass order: Please send us the gerber files/schematic/bom list to run the mass production.Of course, first samples are going to be sent before the mass production. At the same time, we’ll contact you for any components change/alternative.

PCBA assembly:

1.Layer:1 to 30 Layer

2.Service:PCB production,pcba asssembly,components sourcing, complete product production like hard disk player

3. SMT and DIP pcb assembly:SMT,Through-hole assembly,BGA....

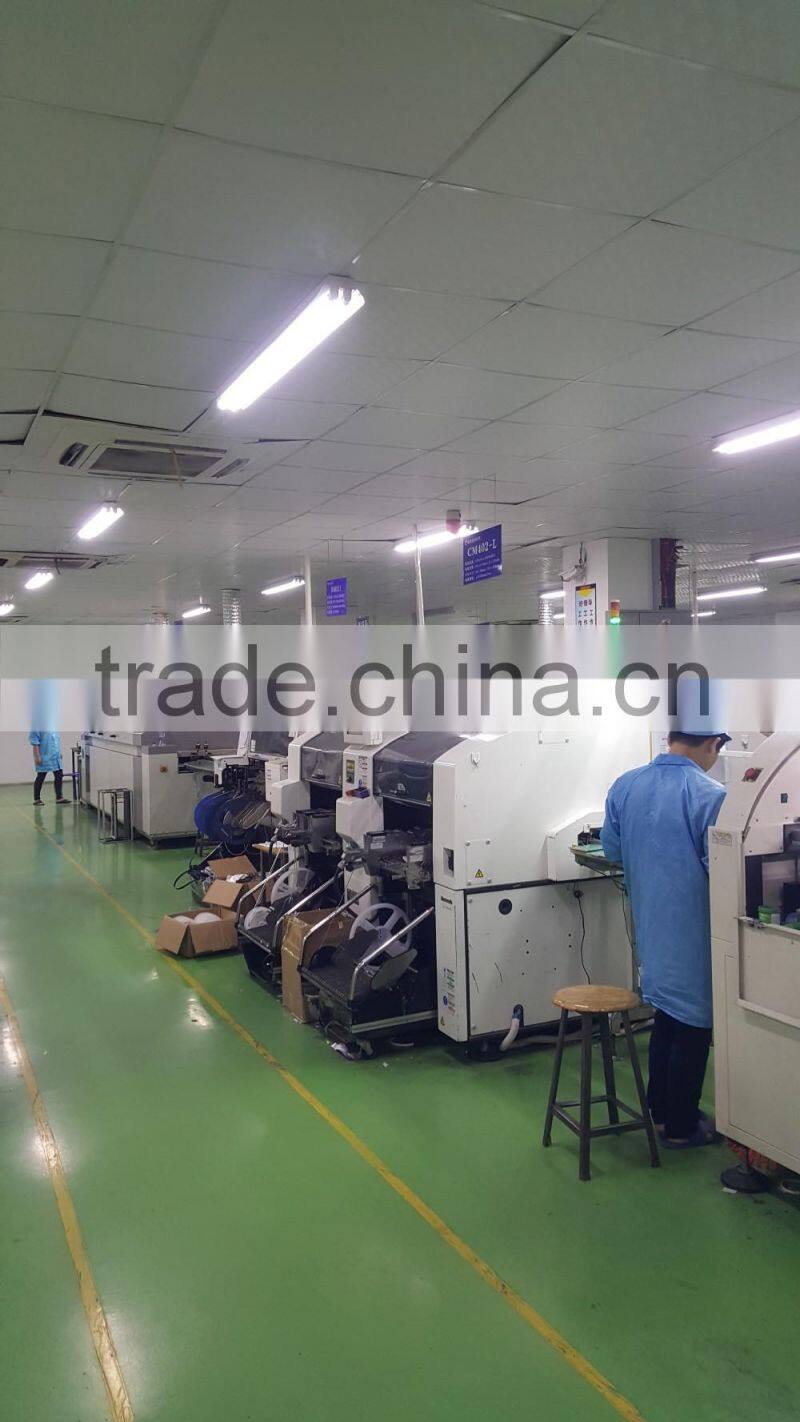

4.SMT lines: with machine from Germany: PANASONIC, YAMAHA. We can offer both lead and lead free lines.

5.Certificate: ISO14001:2004,ISO9001:2000,ISO9001:2008,ISOTS16949.

6.Test: full 100% PCB electrical test, PCBA function tested.

7.Leadtime: 15 to 35 days depending on the PCBA complicated.

PCBA Production Flow:

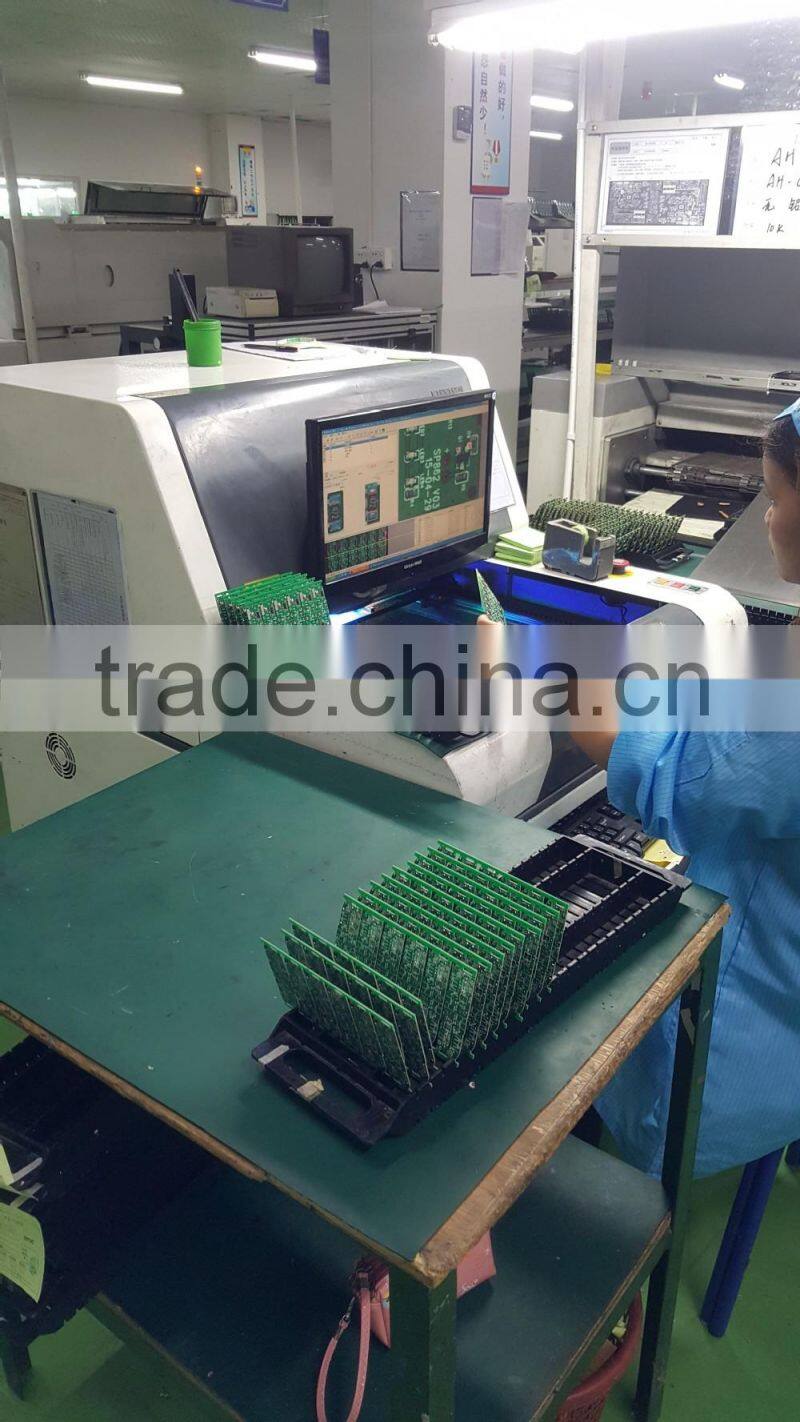

Material Receiving---IQC—to SMT—SMT line loading—solder paste/glue printing—chip Mounting—reflow---visual inspection-AOI(Automated Optical inspection)—SMT QC—SMT stock—DIP—wave soldering---touch up-visual inspection—ICT(in circuit test)—final assembly—FCT(function testing)—QQC---Packing---ready to ship

Quote requirement:

 ---You're much welcomed to send us any printed  circuit board to check the quote. To make sure the price is more accurant, please kindly provide:

1)Gerber file and Bom list;

2) detailed pictures of finished pcba or the pcba sample;

3)Test method for PCBA

Sourcing

---any electronic components

---metal parts(CNC)

---plastic parts(injection mold&vacuum forming mold)

---connectors/cables/wire harness

Purchasing Tips

A.    PCB order

---Please provide us the gerber files along with any other details needed.

B.    PCBA order

---Please send us the gerber file/schematic/bom list and other manufacture request.

C.       Components Sourcing

---Please kindly send us the detailed specification what you are going to purchase, any pictue/web link is much appreciated.

D.     Metal/Plastic parts

--Please send us the 2D/3D drawing together with the very detailed specification for our reference to send the quote/molding charge/unit price.

--if you have the real sample, please send us to copy.

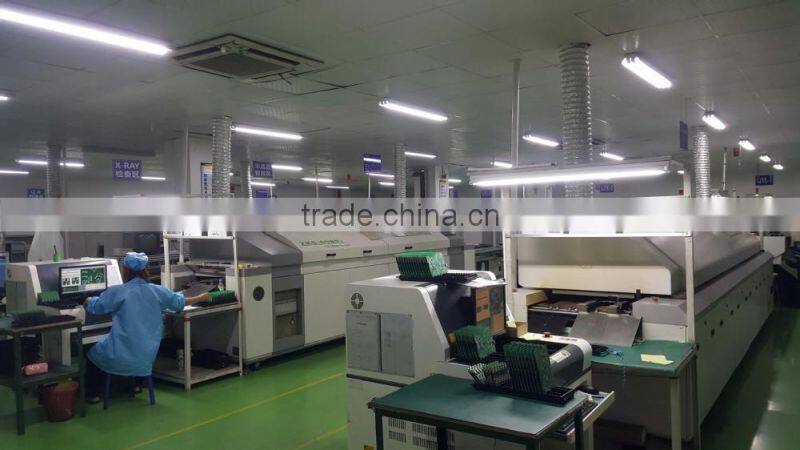

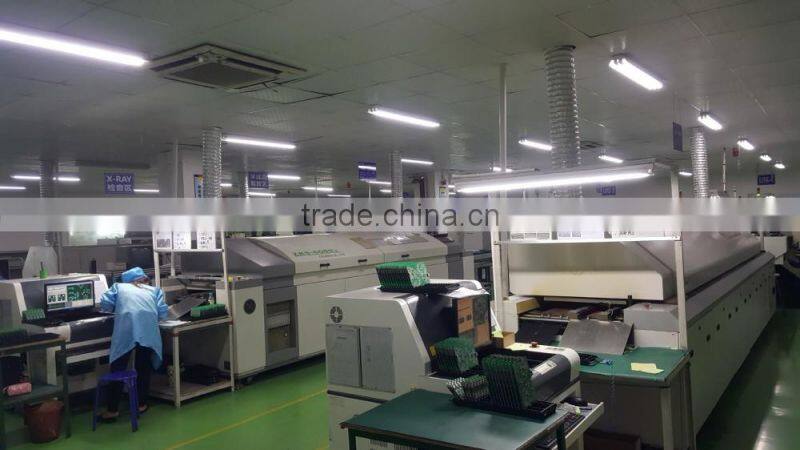

**View our Rohs SMT workshop &Good testing service***
