SMDT High Quality Digital Signage for Touch Panel Advertising Player PCBA Board

SMDT high quality digital signage for touch panel advertising player PCBA board

DS318A  General Description

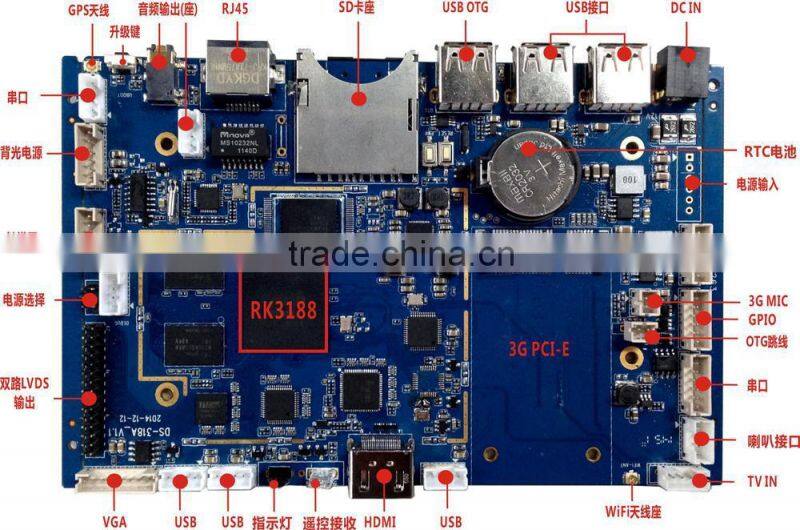

      DS-318A control board combines multimedia decoding, LCD driver,Ethernet,HDMI,WIFI,3G,blue teeth and camera in one, supporting most current fashionable video and image format decoding, HDMI/VGA output and double eight LVDS driver,which  can drive variable TFT LCD panels ,greatly simplify system design of whole machine, SD card and locker SIM card booth, having stronger stability and suitable for high-definition network broadcast box, video advertising machine and frame advertising machine.

DS318A Specification

DS318A Premium Feature

1.High integration density: Integrating USB/LVDS/Ethernet/HDMI/WIFI/Blue teeth in one and simplifying design of whole machine. SD card can be inserted.
2.Built-in PCI-E 3G module. Supporting Huawei, ZTE and multiple PCI-E 3G module, more suitable for remote maintenance of advertising all-in-one machine, saving labor cost.
3.Ample extended interfaces. 6 USB ports (3 pins,3 standard USB ports),3 extensible serial ports and GPIO/ADC ports, satisfying requirement of variable peripherals in the market.
4.High definition. Maximum supporting 1080P decoding and variable LCD screens with LVDS signal.
5.Completed function. Supporting function of portrait and landscape mode playing, video multi-screen, scrolling caption, timing switch, USB data input and so on.
6.Convenient management. Humanized playlist maker software, easy for advertising play management and control. Play log, easy for knowing the play.

  Supporting External Modules:
