Doritos/Totilla Chips Manufacturing Equipment With Best Price

Doritos/ Tortilla chip/ Triangle chip process line uses corn powder, corn starch, and rice powder as main material which are extruded, punched into triangle, round, square shapes, and then baked and flavored. Such snacks with crispy taste, rich nutrition and digestible structure are very popular with many people all over the world. And most important, the redundant shaping material can be reused after grinded into powder, which can greatly reduce the production cost.

Technological Process

Raw Materials Configuration→ Mixing→ Conveyance→ Extrusion→ Shaping→ Conveyance→ Rotary Screening→ Conveyance→ Drying→ Frying→ Flavoring & Oil injection

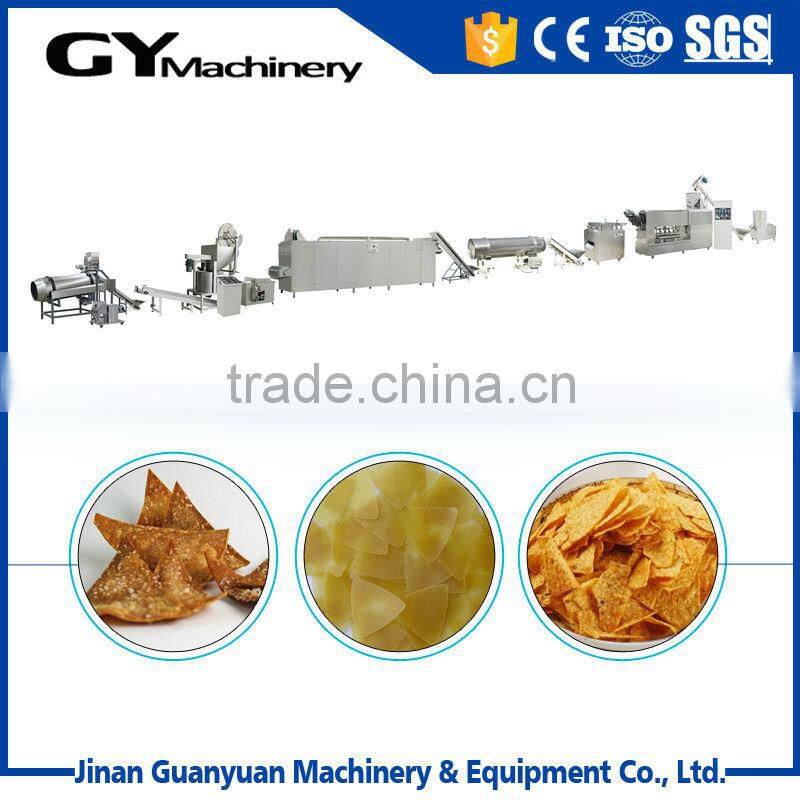

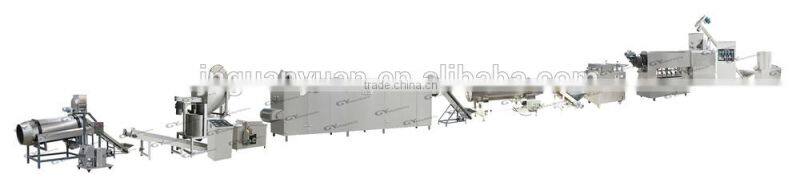

Equipment Configurations

1. Flour Mixer: Stir mixed raw materials evenly with a certain amount of water. Choose different GY flour mixer model according to different output requirements.
2. Spiral Conveyor: Convey stirred raw materials into feeding hopper of extruder.
3. Extruder: Select different GY extruder model based on clients’ raw materials and output capacity requirement. With the help of special control cabinet, extruder is able to extrude the raw material under different temperature & pressure, and produce puffed products. The shapes of products can be changed by changing the modules in extruder.
4. 3D Shaper: Rotary cutting and shaping products into triangle, round or square shape.
5.  Elevator: Lift up the products into next equipment.
6. Rotary Screen: Rotary screening to separate the products from residue and prevent adhesion.
7. Vibrating Screen: Vibrating screening the semi-products to prevent adhesion.
8. Multi-layer Drying Oven: Dry semi-finished products. It is the most common dehydration plant for puffed food. It includes a belt dryer and some in-built heating devices to carry out drying by means of electricity, vapor, diesel or gas. The drying temperature and drying time can be controlled.
9. Frying Machine: Choose GY different automatic fryer model or continuous fryer model according to different producing requirements to frying the products to be crispy and a better taste.
10. Flavoring Line: Select single-roller flavoring line or dual-roller flavoring line, based on output and product properties. Single-roller and dual-roller flavoring line combine the functions of flavoring with seasoning and oil injection together.

Characteristics

• Various models to meet different output capacity requirements.
• Flexible configurations to meet different produce, budget and workshop layout requirement.
• Vast raw material range to produce different final products by only one production line.
• Different shapes and appearances of final products can be made by changing different modules in extruder.
• High automation and accurate control system to save labor cost and improve the quality of final products.
• Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
• Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
• Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.
• Food-grade stainless steel. Neatness and easy clean.

 Technical Parameters

Workers

Normally 1-2 operators are sufficient for production.
