Introduction:

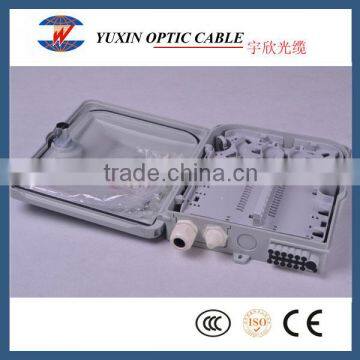

FTTX-PT-B12 fiber-optic wiring box is FTTH optical network client wiring devices, mainly for welding into the side optical transmission terminals, splitting, wiring output function, which can effectively carry out the termination of the cable, protection and management, the process for optical transmission network equipment necessary.

Product Characteristics:

1 After product mix from flame retardant ABS plastic and polycarbonate materials granulated high temperature injection molding, plastic in the "steel" reputation, product appearance, smooth lines, strong impact, protection up to IP55 level.

2 product is a multi-purpose wiring devices, both when using the optical splitter boxes can also be when the optical splitter box to use, convenient and flexible operation.

3 uses a unique anti-theft lock design, box opening and closing flexible, good protective properties.

4 uses a unique hinge structure, the construction can easily remove the lid, and put on in order to facilitate the work of welding wire.

5 using the turn plate structure, can be high-density configuration port and spectroscopic facilities.

Use Methods:

1 Splitter box use: spectroscopic mode when not at work, using 24 SC adapter connector uses as input and output cable into each side of the plug end 24 SC optical connectivity and distribution to complete the work.

2 Optical splitter box using the way: When you need to use a cassette optical splitter can be

A 16 minute cassette or an optical splitter 32 points placed in the box at the end of the fiber system central fixed disk, you can use as an optical splitter box.

3 Optical splitter box using the way: When you need to use Blade optical splitter can be inserted chip optical splitter 1 minute 8 insert one or two front flap cartridge fixed, you can use as an optical splitter box.

4 Optical splitter box using three methods: When both need to use the cartridge, plug-chip optical splitter, optical splitter cassette can be placed in the lower and the Blade optical splitter placed in upper use.

Installation:

1 Installation: Open the box, remove the lid, remove the plastic bag from the accessory expansion screw 3 sets, lay at the specified location hole in a wall, put a bolt from the bottom front of the box with three screws tighten.

2  Laying fiber optic cable:

A. After pigtails and outdoor cable stripping around 50mm thermal welding;

B. Hot melt sealant is placed on the tube after the welding flap opposite the slot;

C. Outdoor fiber optic cable in the bottom of the box is fixed steel core strengthening core fixed position, the waterproof lock lock;

D. The adapter is placed in the middle of the flap position on the adapter card, after pigtail splice outdoor cable, plug the card in the adapter;

E. The user covered wire cable using the quick connector, pull the black covered wire cable plugs into the cable, the covered wire cable penetration box, the box reserved for a certain length covered wire cable tray in fiber chassis mounting brackets inside the box , fitted with quick connectors can be.

F. Hole into the cable with fiber optic cabling not plug the hole sealed to prevent dust from entering the cartridge body.

Environmental Conditions:

1. The working temperature: -40 ° C + 60 ° C;

2. Relative humidity: ≤93% (at + 40 ° C);

3. Atmospheric pressure: 62kpa ~ 101kpa (approximately 0 to 5000 m above sea level);

4. Insertion loss: ≤0.35dB;

5 .Return loss: ≥50 dB;

6. Plug durability:> 1000;

7 . Insulation resistance: ≥1000MΩ / 500v (DC);

8. Pressure:> 3000V (DC) / 1min no breakdown, no arc.

Installation pitch: The box with 3:00 fixation, above 2:00, 1:00 below, installation is simple and convenient, the linear distance of 307 mm between the upper and lower horizontal distance of 197 mm between the left and right.
