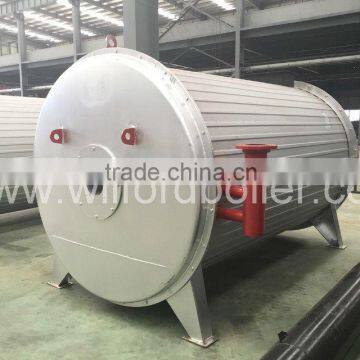

Hot sale industiral Horizontal thermal oil boiler
- Shanghai port of China
- T/T Credit Card
You May Like
Product Details
| Type | Natural Circulation | Usage | Industrial | |
| Structure | Fire Tube | Pressure | High Pressure | |
| Style | Horizontal | Fuel | Gas-fired | |
| Place of Origin | Jiangsu, China | Brand Name | WILFORD | |
| Model Number | YY(Q)W | Output | Other, Heat | |
| Dimension(L*W*H) | Depend | Weight | Models | |
| Certification | ISO,ASME,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Gas Oil Thermal Oil Boiler From China Manufacturer
The main features
• Extremely flecible and simple installation.Just place the boiler on the foundation.
• Heating area is the closely-aligned round coils.Heating area is arranged sufficiently to reduce the surface heat load of pipe and handle the heat transfer oil safely.
• Size of hearth matches the combustion flame.Use the barotropic combustion to increase the radiation heating efficiency.
• Compact boiler saves the space of boiler room greatly.
• Air preheater is mounted at the tail of large boiler to improve the efficency.
The structure :
Technical Parameter
| |||||||||
Model | YYL(W)-350 | YYL(W)-600 | YYL(W)-900 | YYL(W)-1200 | YYL(W)-1500 | YYL(W)-1800 | YYL(W)-2300 | YYL(W)-1900 | YYL(W)-3500 |
Delivered heat ×104kcal/h | 30 | 50 | 75 | 100 | 130 | 150 | 200 | 250 | 300 |
Heating efficiency % | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 | ≥82 |
Design pressure Mpa | 0.7 | 0.7 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
Work pressure Mpa | 0.4 | 0.4 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
ing temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
Medium circulation m3/h | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 240 |
Diameter of main pipe DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 |
Installation capacity KW | 10 | 15 | 28 | 36 | 44 | 54 | 50 | 60 | 60 |
Applicable fuel | Oil, Gas | ||||||||
Medium volume in furance m3 | 0.2 | 0.42 | 0.7 | 0.8 | 1.1 | 1.2 | 2 | 2.6 | 3 |
Fuel consumption Kg/h,Nm3/h | 36/45 | 64/75 | 89/108 | 126/154 | 155/188 | 164/173 | 245/303 | 293/345 | 358/433 |
Max.size of shipping m | 1.6*1.4*1.9 | 2*1.7*2.7 | 3.4*1.9*2.0 | 3.5*2.2*2.1 | 4.6*2.3*2.2 | 4.7*2.5*2.3 | 5.2*2.8*2.8 | 5.3*2.8*2.8 | 6.2*2.8*2.8 |
Max.weight of shipping t | 1.2 | 3.9 | 5.2 | 5.5 | |||||
Company View
Established time: 1998
Name: Zhangjiagang Wilford thermal technology
Local: Zhangjiagang Economic Development Zone
Main product: Oil Gas Diesel Electric Steam Boiler and Hot Water Boiler
Certificates: ASME,ISO,SGS,B-class boiler manufacturer
Welcome to visit our factory!
Business item
1) Guarantee time: One year from the machine is running in buyer’s workshop.
2) Packing:
3) Shipping Marks:
4) Port of Shipment: Shanghai, China
5) Port of Destination:
6) Delivery time: 35-40 working days after contract signed and advanced payment received .
7) Terms of payment: 30% T/T as deposit in advance , left 70% T/T before shipment .
8) The installation and commissioning takes 1 person x 7 days (max.) under Buyer’s assistance. Production training is carried out during the same period.
9) The international travelling cost, including round-trip air tickets, insurance, boarding, hotel cost and meals of the Seller’s service team should be charged to the Buyer. And USD80 per day should be paid to engineer by buyer also.
9)Country of origin: Made in China
