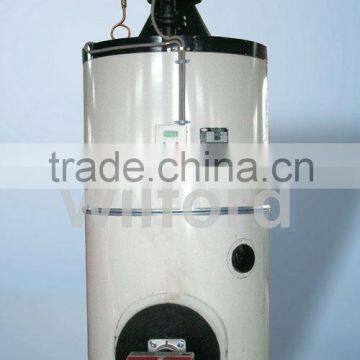

Central Heating Boiler&System

FOB Price

US$ 1,500 - 11,000 / Set

1 Set(Min. Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Natural Circulation	Usage	Industrial
Structure	Fire Tube	Pressure	Other, Atmospheric pressure
Style	Vertical	Fuel	Gas-fired
Place of Origin	Jiangsu, China	Brand Name	WILFORD
Model Number	CLHS Series	Output	Hot Water

Product Description

Specifications

CLHS series hot water boiler is three pass wet back big chamber boiler.
Power:0.06MW-0.47MW
Heat:50000-400000Kcal

1. CLHS series of hot water boiler is three pass wet back big chamber boiler shells.

2. Furnace big, high radiate, three pass design, combustion air is full, high-efficiency heating surface.

3. More than 90% thermal efficiency. Intelligent, automatically control, with automatic temperature regulation, over-temperature standby.

4. Burners are used by importing, pressure spray, burning completely, low noise.

5. Confined by connecting structure, safe, reliable, long service life.

6. Applicable fuels: gas, oil, and dual fuel.

Applications:
1. Mainly providing heating through radiators, especially fit for use in residential
areas, hospitals, schools, banks and so on. The outlet water temperature is 90
degrees.
2. Providing heat source for central air conditioning system with water-water heat
exchangers.
3. Directly providing boiled water and hot water is also possible.

Technical Parameters

Type				CLHS0.06-85/60-Y.Q	CLHS0.12-85/60-Y.Q	CLHS0.17-85/60-Y.Q	CLHS0.23-85/60-Y.Q		CLHS0.35-85/60-Y.Q	CLHS0.47-85/60-Y.Q
Project			Unit
Rated Power			MW	0.06	0.12	0.17	0.23		0.35	0.47
Total Heat			10⁴kal	5	10	15	20		30	40
Rated working pressure			MPa	Atmospheric	Atmospheric	Atmospheric	Atmospheric		Atmospheric	Atmospheric
F Fuel	Diesel Oil		Kg/h	5.4	10.8	16.2	21.6		32.5	43.2
	Heavy Oil		Kg/h	5.9	11.5	17.2	22.8		34	45
	Natural Gas		Nm³/h	5.8	11.7	17.5	23.4		35	46.8
	LPG		Nm³/h	2.5	5	7.5	10		15	20
	City Gas		Nm³/h	14.2	28.3	42.5	56.6		85	113.2
Voltage			V	220V					380V
Overall size		Length	mm	800	980	1150		1250	1500	1550
		Width	mm	700	850	900		1000	1200	1250
		High	mm	1300	1650	1800		1950	2000	2100
Weight			kg	270	410	450		520	830	980
