Home > Products > Stainless Steel Wire Rope > High Quality Stainless Steel Wire Rope& Steel Cable
High Quality Stainless Steel Wire Rope& Steel Cable
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Standard | AISI, ASTM, DIN, EN, GB, JIS | Grade | Other, 300 Series, 304, 316 | |
| Wire Gauge | 0.4-60mm | Length | 1000M/2000m | |
| Application | railway, petroleum, industry, fishery, Precise instrument | Certification | ROHS | |
| C Content (%) | <0.08 | Si Content (%) | <1.0 | |
| Place of Origin | Guangdong, China | Brand Name | Tianli | |
| Model Number | TLSSWR-001 |
Product Description
High quality Stainless steel wire rope& steel cable
Specifications:
Type | Stainless Steel Wire Rope |
Material | Stainless Steel |
Grade | 304,316 |
Standard | AISI,GB,ASTM |
Diameter | 0.5mm-50mm |
Construction | 1X7,1X19,6x7,7X7,6x19,7X19,6X37,7X37,8x19,19X7 etc |
Core | IWR, FC, IWS |
Length | 200m/reel,305m/reel,500m/reel,1000m/reel,1500m/reel,Any size,According to customers' requirement |
Secondary or not | 100% new,non-secondary |
Packing | Wrapped in plastic reel/coil/spool then put on pallets or in wooden/carton box or according to customers' requirement |
Payment Terms | T/T or L/C etc |
Loading Port | Shanghai China |
Delivery Term | EXW,FOB,CFR,CIF |
Quality Assurance | Mill Test Certificate is supplied with shipment |
MOQ | 1 ton |
Delivery Time | Normally within 10 days after receiving deposit or according to customers quantity |
Certification | ISO |
Technique | Hot/Cold Rolled |
Twist Dirction | RHOL,RHLL.LHOL.LHLL |
Condition | Soft wire,semi-soft wire,hard wire |
Nominal Tensile Strength(Mpa) | 1470,1570,1670,1770,1870Mpa |
| Standard: | ||||||||
| Grade | C % | Ni % | Cr % | P % | S % | SI % | Mn % | Mo % |
| 304 | ≤0.08 | 8-10 | 18-20 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | |
| 316 | ≤0.08 | 10-14 | 16-18 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | 2-3 |
| 304L | ≤0.03 | 8-10 | 18-20 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | |
| 316L | ≤0.03 | 10-14 | 16-18 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | 2-3 |
| AISI304 | ≤0.07 | 8-11 | 17-19 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | |
| AISI316 | ≤0.03 | 12-15 | 16-18 | ≤0.045 | ≤0.03 | ≤1.0 | ≤2 | 2-3 |

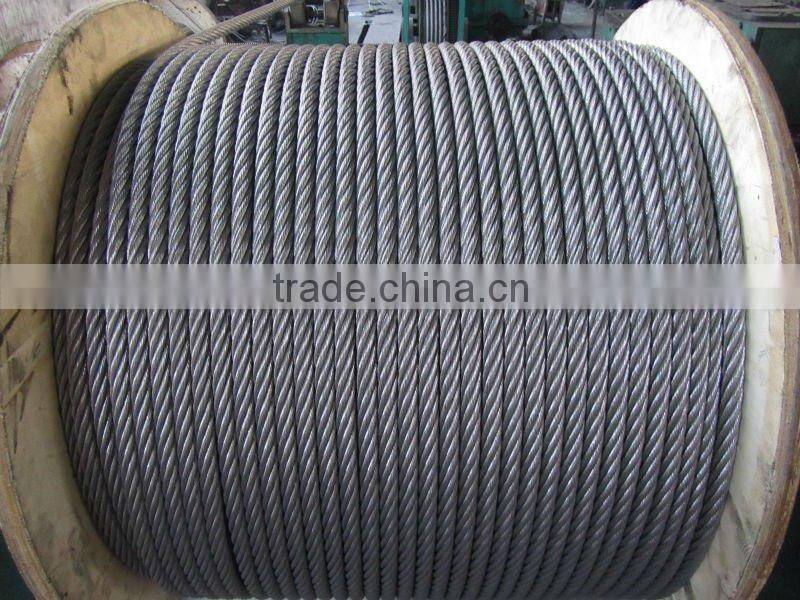

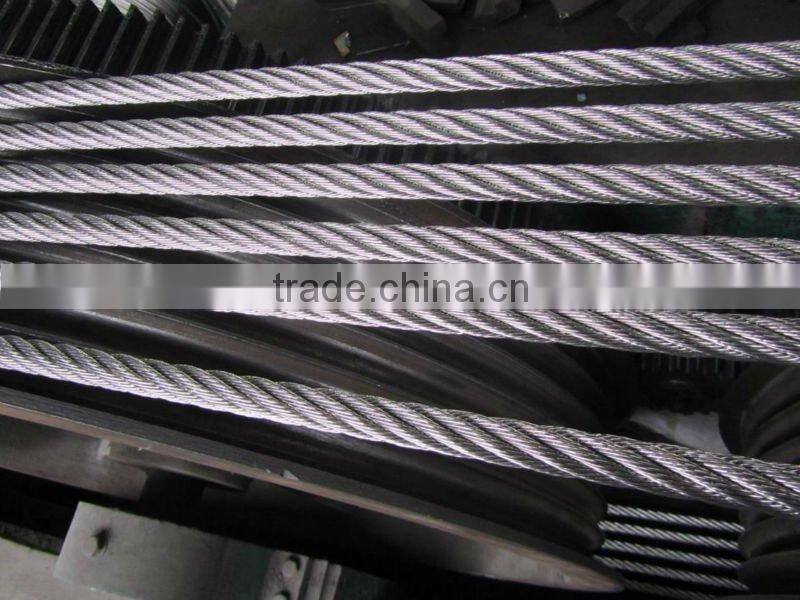

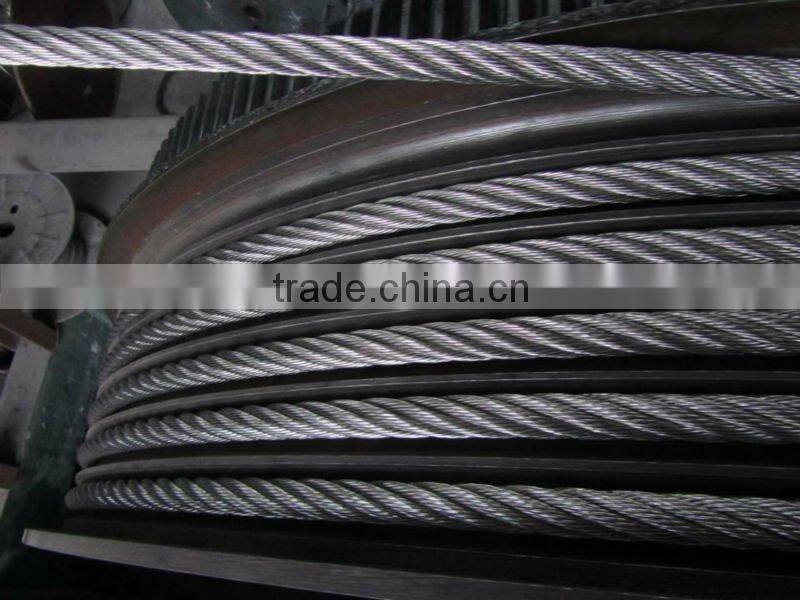

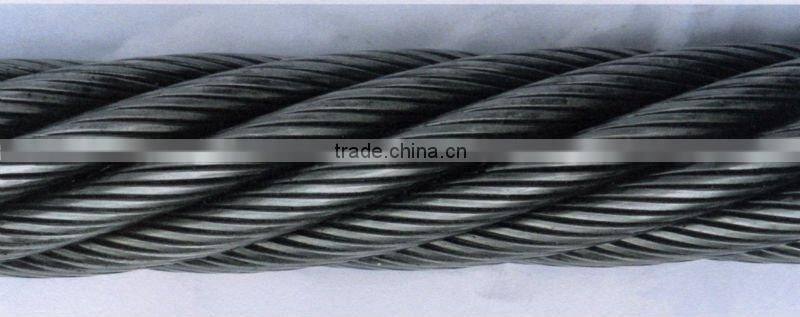

Pictures :
Packaging: Export packaging
500m/reel, 1000m/reel, 2000m/reel, 5000m/reel, etc.
Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to requests
1. Sample for free
2. Welcome OEM orders
3. Provide after-sales service
Founded in 1997, we now are a large-scale production plant which specialized in the production of stainless steel wire, stainless steel wire rope, and PVC/Nylon/PE coated stainless steel wire rope product.
The company serves both domestic and international market. Our products are of high quality. We are the official supplier for China high speed train project. Moreover our product is widely exported to worldwide market such as US, Australian, Europe, and Asian market.
For more details, please contact us:
| Miss. Dana Xiong |
Email: dana
| |
Tel: +86-755-23154925 | |
Fax: +86-755-29305643 | |
Mobil: +86-15013635584
Skype: tlsteel.sales06 |
