Customizable Tri-axle Stake Box Semi Trailer With Side Open With Side Open
- Qing dao port or others
- T/T
You May Like
-
Customizable Tri-axle Box Cargo Transport Semi Trailer With Side Open With Side Open
-
Customizable Tri-axle Van Type Cargo Semi Trailer Truck With Side Open With Side Open
-
Customizable Tri-axle Cargo Box Semi Trailer With Side Open With Side Open
-
Customizable Tri-axle Cargo Semi Trailer With Side Open
-
Customizable Tri-axle Wing Transport Truck Trailer With Side Open
-
Customizable Tri-axle Transport Semi Trailer With Side Open
Product Details
| Max Payload | ≤ 60 T | Size | 13000mm*2490mm*2860mm | |
| Place of Origin | Shandong, China | Brand Name | wolwa | |
| Model Number | Box semi trailer |
Product Description
customizable tri-axle stake box semi trailer with side open with side open Introduction:
This series of box semi trailer is mainly used to transport home appliances, textiles, coals, sands, and other building materials as well as goods that can be carried by pallets. Van trailer with a length more than 16m is often used to transfer goods between two inland countries.
The fully enclosed trailer body is made of high-strength steel plates welded together to form an ample loading space. X-shaped brace allows the box to load heavier goods while still keeping a lightweight design.
Various types of box tops are available to meet various customer needs, including closed, slide open, open, and open type with tarpaulin rod. Unique to the box semi trailer is the side guardrail that protects both sides of the van trailer during driving. Rear guard design comes with special devices that facilitate the push of the trailer from behind. The trailer box opens on both sides to allow easy and fast unloading.
customizable tri-axle stake box semi trailer with side open with side open SPECIFICATION
Tare Weight | About 8.3T |
Dimension | 13000mm*2490mm*2860mm(Outerside) 12800*2300*1800mm |
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 9.00-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T orChinabrand 28Tons (Double speed) |
Main beam | Height:500mm, upper plate is14mm, middle plate is8mm, down plate is16mm; Material is Q345B Steel . |
Side beam | 16mm or18mmchannel steel (Material is Q235steel). |
Side Wall | 600mm-1800mm ,the open door can be choose freely. |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
Semi Trailer Surface Coating | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
Shipping terms | By Bulk cargo carrier,RORO or 40’HQ container |

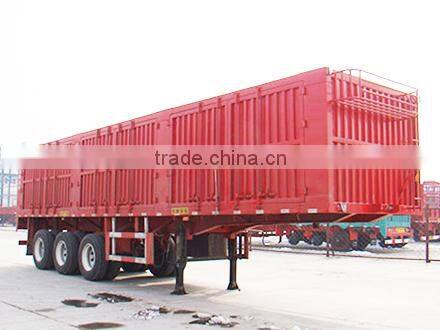

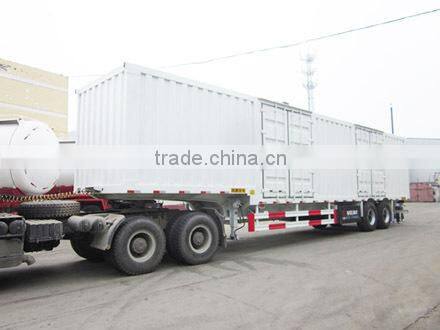

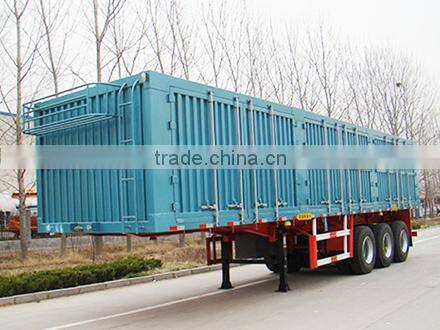

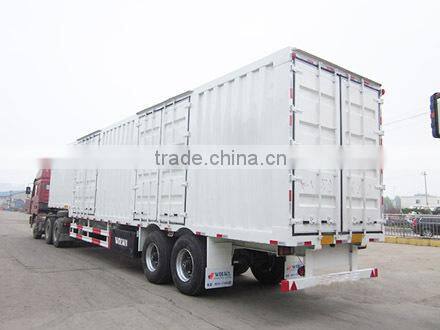

customizable tri-axle stake box semi trailer with side open with side open photos
