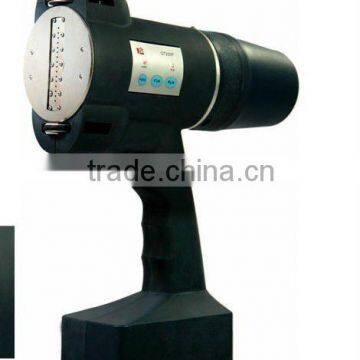

Large Forma Printing Machine (Hand-Held)

FOB Price

USD $1,850 - $2,500 / Piece

1 Piece(Min.Order)

Supply Ability 100 Liter / Liters per Month
Port Shanghai or Guangzhou
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Screen Printer
Place of Origin	Hubei, China	Brand Name	WDD
Model Number	GT250	Usage	Label Printer
Automatic Grade	Automatic

Product Description

Large Forma Printing Machine (Hand-Held)

Technical characteristics

The hand jet printer connect to host (PC) by Bluetooth, the host (PC) can control more than one handset.

You can edit the message in the PC by what you see what you get, and set, modify the print parameters; apply the location sensor (the pending patent) instead using encoder.

You can rotate the print head to get different printing height of characters, and can print fontbold ( max. 4 colum).

Build in auto-ink pressure device, and removable ink cartridge.

It is easy to maintain the print nozzle, and can be suitable to use in MEK, n-Propanol ink.

You can choice multi-font to print.

Technical Parameters

Nozzles	16 nozzles
Print Height	20-50mm (16×16 normal is 40-50mm)
Print Speed	40 meters / min
Print Dots	5×7,10×16,16×16(5×5,10×10 is optional)
Stored Message	Store 16 message files, each message can include max. 5×7 chars =150 or(16×16chars=75)
Print Function	Change the print direction of character or message between right and left, or upside and down, multi-column (1-4 column), counter in up or down (1-8digits), real-time clock and date, shift, and repeat print
Print Fonts	ASCII characters, logo
Communication interface	Bluetooth between handset and PC, max. distance is 8 meters.
Power supply	lithium Battery: 12V±5%, Charger:12.6V /1A DC
Operating conditions	Temperature range: 0-45°C Relative humidity, maximum (non-condensing) 10-90%
Ink Type	MEK, n-Propanol ink, or special ink as customer request
Print media	permeable surface or non-permeable surface
Weight	1500g±10g (include battery and cartridge)
Cartridge Volume	150ml, 250g±5g

Applicable Industries

It is mainly used in jet printing the data, time, count, and so on. It Widely applies in food, drink, medicine, chemical industry, cement industry etc.. It can print in the permeable surface (for example cartons, template, textile and so on) and the non-permeable surface (for example reflex paper box, metal tubing, plastic tubing, ceramics, knitting belt and so on)
