Single Direction Road Compactor Mini Compactor GNBH23

FOB Price

US$ 1,000 - 40,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, plate compactor
Travel Speed	25m/min	Grade Ability	25%
Place of Origin	Shandong, China	Brand Name	Wolwa
Model Number	GNBH23	Weight	120kg
After-sales Service Provided	Engineers available to service machinery overseas

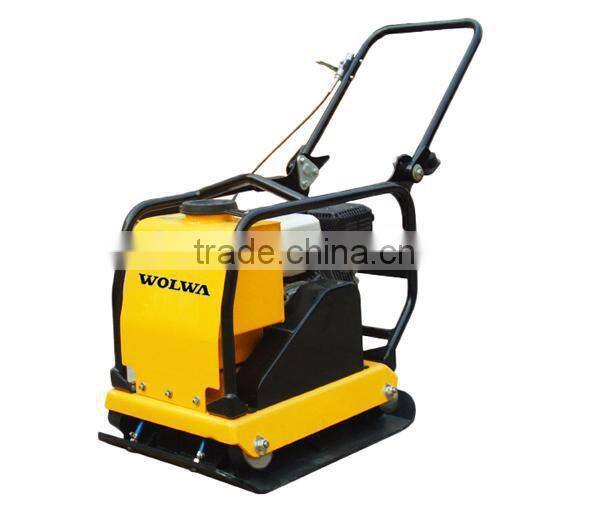

single direction road compactor mini compactor GNBH23

1.The international famous brand petrol engine;

2. Mechanical turning

3. Plate size:600*500mm

4. packing size: 820*570*650mm

5.12L water tank

Walk
Engine	HONDA
Power	5.5hp/3600rpm
Operating weight	120kg
Max Operating weight	122kg
Type	Gasoline engine, air-cooled 4-stroke, OHV, One-cylinder
Bearing	NSK/SKF
V-belt	MITSUBOSHI/CONTTECH
Steering	Mechanical
Speed	0-3km/h
Theoretical gradeability	25%
Nominal amplitude	0.7mm
Vibration frequency	85Hz
Exciting force	20kN
Fuel tank capacity	3.6L
Water tank capacity	12L
Dimensions
Overall width (keep handrail level)	530mm
Total height (keep handrail upright)	1170mm
Total Length (keep handrail level)	1050mm
Plate Size	600x500mm
Package Size	820x570x650mm
