Good insulation steatite thermal ceramics parts
- Shenzhen
- T/T Credit Card
You May Like
-
Good insulation performance heat resistant Steatite ceramic bead
-
Steatite Ceramic Insulator Heater Element Part
-
Industry Steatite Ceramics tubes /pipe parts
-
Good Quality Steatite Part Ceramic Insulator Heating Element
-
Good wear resistance steatite ceramic rods /tube ceramics parts
-
insulation porcelain material electrical steatite ceramic parts
Product Details
| Place of Origin | Guangdong, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Model Number | - | |
| Brand Name | Hxpceramics |
Product Description

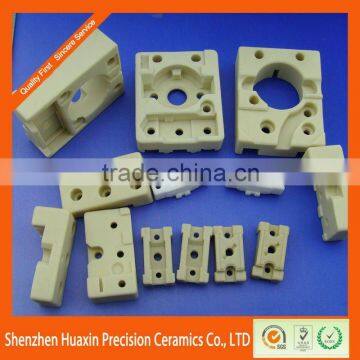

Good insulation steatite thermal ceramics parts
Features
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
Good insulation steatite thermal ceramics parts
We can supply the products according to customer's drawings, samples and performance requirement.
low loss at high frequency. Good insulating , high strength, , low dielectric constant, Great mechanical strength, high air tightness, high chemical stability, etc. We can produce all kinds of ceramic holders, ceramic support, ceramic tubes, ceramic pipe, ceramic ring, etc. Widely used in electronic components, electronic device and electric products. Our products meet the international standards. | |||||
| Item | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 | |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
Good insulation steatite thermal ceramics parts
Good insulation steatite thermal ceramics parts
Good insulation steatite thermal ceramics parts
