Industrial Insulation Heat-resistance Wear-resistance Alumina Ceramic
US$ 0.1 - 10
/ Piece
100 Pieces(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
-
Alumina Ceramic Insulators for Heaters
-
Industrial White and Black Steatite Glazed Ceramic Part
-
Quality Assurance Steatite Glazed Ceramics Parts
-
High Temperature Resistance Alumina Glazed Ceramic Part
-
High Temperature Resistance Electrical Alumina Glazed Ceramic Part
-
Top Quality Insulating Glazed Ceramic Part
Product Details
| Place of Origin | Guangdong, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | |||
| Model Number | Industrial insulation alumina ceramic | Brand Name | hxpceramics |
Product Description
Specifications
Industrial insulation alumina ceramic-Heat resistance
-Good insulation
-Wear resistance
-High strengh
Industrial insulation alumina ceramic
Product Description
Features:
1) Satisfy various technical request
2) Good insulation performance and high temperature resistance
3) Stiffness texture
4) High strengh
5) Used in all electric products, electric heating products and wear resistant machinery parts.
6) OEM, ODM and OBM are welcomed
We can supply the products according to customer's drawings, samples and performance requirement.
| Performance For Industrial Ceramic | ||||||
| Item | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 | |
| Physical Characteristics | Heat resistance | 0C | 1100 | 1500 | 1550 | 1800 |
| Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 | 3.9 | |
| Water absorption | % | 0 | 0 | 0 | 0 | |
Mechanical Characteristics | Flexural strength | Mpa | 145 | 320 | 340 | 360 |
| Hardness vickers | Gpa | 5.7 | 12.2 | 13.5 | 15.6 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | 370 | |
| Poisson’s ratio | 0.21 | 0.22 | 0.23 | 0.23 | ||
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.9 | 7.1 | 7.2 | 8 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | 32 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.9 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 6.2 | 9 | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | 1 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | 15 | |

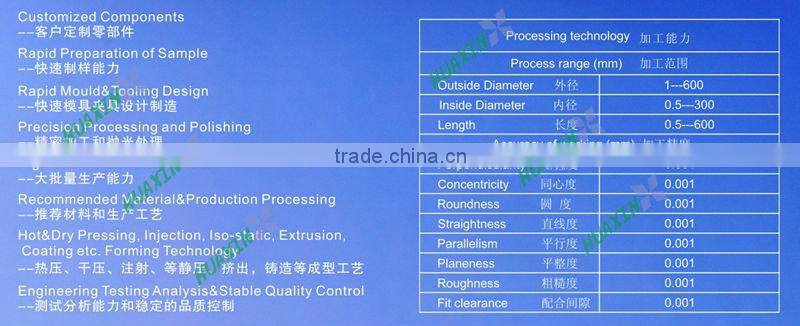

| Processing technology | ||||||
| Process range (mm) | ||||||
| Outside Diameter | 1---300 | |||||
| Inside Diameter | 0.5---300 | |||||
| Length | 0.5---1200 | |||||
| Accuracy of working (mm) | ||||||
| Perpendicularity | 0.01 | |||||
| Concentricity | 0.01 | |||||
| Roundness | 0.005 | |||||
| Straightness | 0.005 | |||||
| Parallelism | 0.01 | |||||
| Planeness | 0.005 | |||||
| Roughness | 0.05 | |||||
| Fit clearance | 0.005 | |||||
