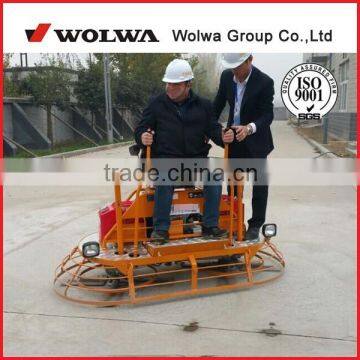

High efficiency ride-on power trowel GNMG-S30

FOB Price

USD $4,000 - $4,200 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Wolwa	Model Number	GNMG-S30
Power Source	Gasoline	Power(W)	20hp
Weight	300kg	Dimension(LWH)	201011501100
Certification	ISO	Warranty	1 year
After-sales Service Provided	Overseas third-party support available

1.Honda GX630 engine, reliable quality.
2.High resistant blade and disc..
3.Easy to operate, high efficiency.

High efficiency ride-on power trowel GNMG-S30

Concrete Trowel

It is used to extract slurry, compact, smooth and polish the concrete surface.

HONDA engine, excellent performance, easy to start-up;

The transmission is with big modulus and al-alloy case, free from maintenance;

Trowel supporting arm is made of heat-treated steel with super diameter carbon structure;

Scientific designed centrifugal clutch gear unit with large torque and long life;

Adjusting height mechanism of handrail, storage erectly, easy to transport;

Plastic treated, anti-rust, anti-corrosion and beautiful.

Type	GNMG-30/36A	GNMG-30/36B	GNMG-S30
Working
Operation mode	By hand	By driving	By driving
Working width	36in.	60in	75in
Working speed	80-130rmp	80-130rmp	80-130rmp
Blade
Blade quantity	4	8	8
Blade size	350x150mm
Fixed hole distance	4.75 in
Engine
Model	HONDA, GX160	HONDA GX390	HONDA GX630
Type	Gasoline engine,air cooled, 4stroke, OHV, single cylinder
Power	5.5hp/3600rpm	13hp/3600rpm	20hp/3600rpm
Fuel tank volume	3.6L	10L	15L
Lubricant L	0.6L	1.1L	1.9L
Fuel consumption	313g/kWh
Dimension
Total length	1850mm	1735mm	2060mm
Total width	965mm	900mm	1030mm
Total height	1090mm	980mm	960mm
Packing size	1150x1050x690mm	1810x980x1130mm	2140x1100x1100mm
Weight
Weight	98kg	300kg		360kg
