long-distance rfid reader 100m

Long Range RFID  Tag Reader:   long-distance rfid reader 100m

Type 2:

GENERAL DESCRIPTION     long-distance rfid reader 100m

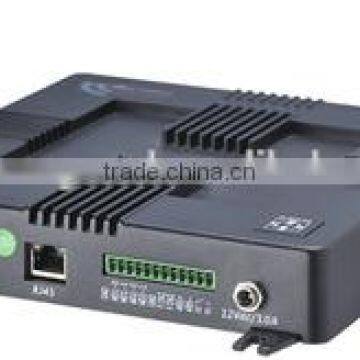

XCC-RFID101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES   long-distance rfid reader 100m

l  Self-intellectual property;

l  Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l  902~928MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 30dbm(adjustable);

l  8dbi antenna optional with effect distance more than 5m^*;

l  Support auto-running, interactive and trigger-activating work mode;

l  Low power dissipation with single +9 DC power supply;

l  Support RS232, RS485, Wiegand interface;

l  Provide DLL and Demonstration Software Source code to facilitate further development.

CHARACTERISTICS

l  Absolute Maximum Rating

l  Electrical and Mechanical Specification   long-distance rfid reader 100m

Under T_A=25℃,VCC=+9V unless specified

INTERFACE

 * Effective distance depends on antenna, tag and environment.
