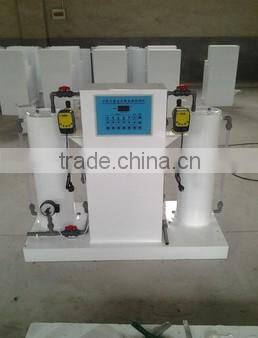

YM Series Chlorine Dioxide Generator

Specifications

 chlorine dioxide generator

   YM series chlorine dioxide generator is our company at home and abroad in-depth study of similar products on the basis of advanced technology, after years of exploration, innovation and practice, using the latest technology and special high-quality materials from. The product with remarkable features of advanced technology, convenient operation, easy maintenance, low operating costs, long service life etc, its combination property is leading level at home and abroad. The equipment has widely used in drinking water, swimming pools’ water, hospital wastewater disinfection; industrial circulating cooling water sterilization Algicide; industrial wastewater decolorization, deodorization and removal of reducing pollutants.

1) Specification models representative of the composition and significance

Generator specifications divided according to the equipment available chlorine output per hour (g / h), such as: YM-1000 refers to economical type series products, rated output of available chlorine per hour is 1000g.

1,         Service Environment and Working Conditions

Location:Indoor(good ventilation)

Distribution water sources: pipe diameter DN ≥ 25, water pressure:0.2-0 .4 MPa, flow rate Q ≥ 2 cm3 / h

Power:AC220V,50HZ,1Ph; ≥1KW

Available chlorine processing capacity: 4000g/h ( 25GPD)

Structure and Working Principle

(1) Overall Structure and Working Principle:

Overall structure: generator feed system, reaction system, absorption system and security system. shell is PVC material.

Working Principle: under negative pressure conditions, sodium chlorate and hydrochloric acid aqueous solution will go into reaction chamber from raw materials’ box by feed tubes, adding valve, proceed full reaction, output disinfection gas which mainly component is dioxide chlorine, by water injector absorb it ,and make fully mixed with water forming a disinfectant solution, connect to disinfected wate

Schematic diagram of equipment components and Description:

NM Components Name     Function

1 Liquid Level     shows liquid level of raw materials tank

2 Adding valve     adjust raw materials’ dosage

3 valves forraw materials’ dosage   open or turn off raw materials, use for turn on and turn off

4Suck feed tubeadd sodium chlorate and hydrochloric acid solution with

5 link Valve   open it when raw material box sucking material, close it after finish sucking

6 vent valve     open it when raw material after finishing suck material, close it when raw material box sucking

7 outlet one-way valve   outlet of chlorine dioxide, prevent water backflow into inside of devices

8 outlet valve only close it when raw materials box sucking

9 Discharge Sewage valve   When cleaning discharge residue liquid in reactor

10 Discharge ValveEmptying raw materials in raw material tank

11 Safety valve   it’s specific Decompression way when improper operation

12 Adding water inlet heating water tank inlet

13 Water Outlet    Heating radiator outlet

14 Heating Window

15 Air Inlet    air way when operation

xMain Components Function

1,Ejector Water: Water jet injector is air exhaust components designed according to jet flow principle , when the power water pass by water injector, generating negative pressure inside , the external gas absorbed into water injector by differential pressure to achieve inhale. Absorbed Chlorine dioxide mixed with water in here to form a disinfectant.

2,Adding valve: adjust the dosage of raw materials according to requirements of chlorine dioxide

3,Air inlet:access of operation, when install, can link pipeline and lead to outdoors, keep connect with air

4,Safety valve: it’s specific Decompression way when improper operation

After open safety valve, removal fault, then reset safety valve plug
