EPO: High Quality Sludge Dewatering Belt Press(hot Sale)

Specifications

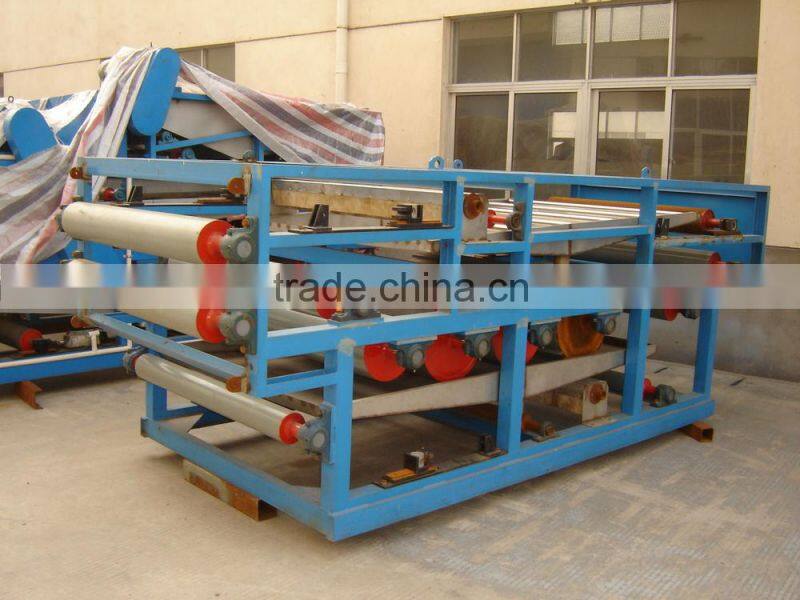

 High quality sludge dewatering belt press

Brief Introduction:

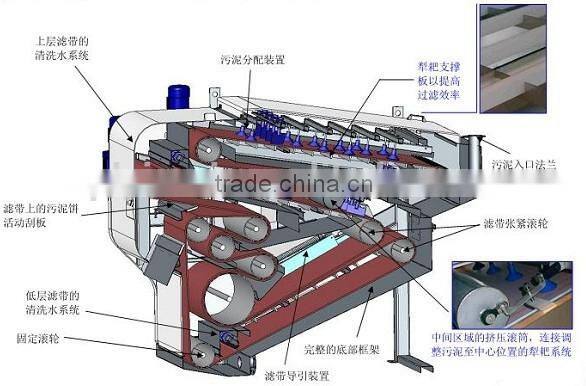

YIMEI belt type filter press is a new-style high-efficiency sludge treatment equipment developed by our company based on the digestion and absorption advanced foreign technology , which has the advantages of high efficiency, low energy consumption, better dehydration effect, simple structure, easy maintenance, low noise, steady operation, safe and reliable, continuous automatic production etc. now have widely used in solid-liquid separation, such as the project of petroleum, chemical, coal, metallurgy, building materials, light textile, food and water supply and drain environmental protection etc. Sludge belt filter press increased concentration based on original belt filter press , sludge concentration including condensed section, dehydration section, sludge mixed reaction system, which can put the second pond sludge (water ratio 99.2-99.6percent) concentrated dehydration directly, thus eliminating the traditional enrichment pool, saving a lot of investment. Belt filter is an efficiency equipment by further dehydrating process of concentrated (water ratio 95-98 percent) material into filter cake dehydration ,with the feature of continuous automatic production, low production cost and installation, can change different mesh filters, continuous stepless speed regulation, adapting to different kinds of material solid-liquid separation.

 Product features:
1,Automatic operation, maintenance and management is easier,labor power can be most saved;

2,Mechanical performance is excellent,,floor space is much saved;

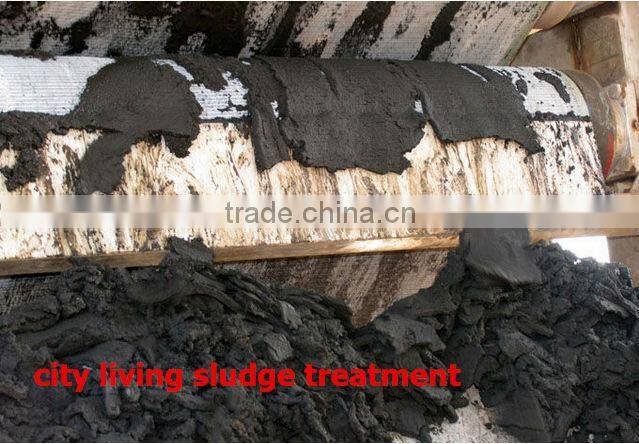

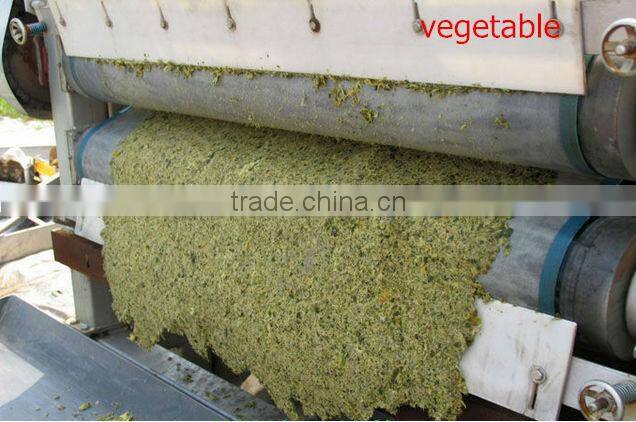

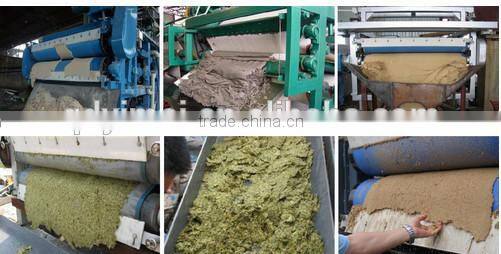

3,Use all sorts of sludge dewatering, high efficiency, large capacity per unit area;

4,Multiple regional dehydration, high dehydration ability, the sludge cake moisture content is low;

5,Less energy consumption, and low operating cost, no vibration noise;

6,Equipment can continuously operate and automatic backwash and it is convenient in operation;

7,Filters snaking automatic correction, make the equipment running more safe

Reliable operation performance:Adopt mechanical stepless speed regulation device drivers, filters tension bridle device, filters to adjust deviation device,So the machine is running smoothly, without noise, it is safe and reliable.
Excellent anti-corrosion properties:Standard products, good anticorrosion property, high mechanical strength and long service life. According to the requirements of the customers can:components whichcontact water adopt stainless steel processing, rack with standard sections, hot spraying zinc anticorrosive processing. According to the needs of users can also materials for the machine configuration.

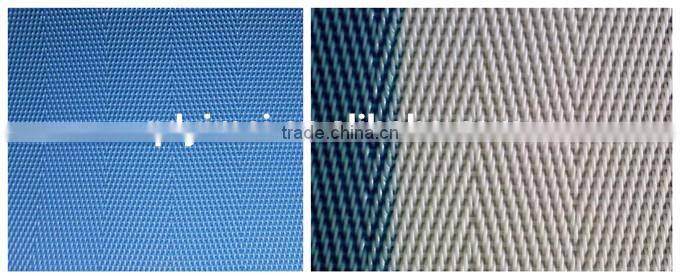

Mature application technology:Different sludge should choose different filters, different flocculants, different auxiliary equipment can reach best dehydration effect.This equipment in many users running examples of environmental protection engineeringindicate that,based on model, filters, flocculation method optimized combination and auxiliary equipment configuration, but all sorts of sludge dewatering effects to achieve the best.

Parameters and performance metrics :

1.Long history , companying with good reputation

 2. Good quality control system , Huge financial resources invested, Management System Systematized, and service personalized, which will be our goal and persistent forever.

 3. Huge market overseas . Our machines have been sold all over the world . especially Africa, Europe, Asia, and North America. Clients over many countries like Australia, Sri Lanka, UK, America, Mexico, Peru, Brazil, Kenya, Tanzania, Saudi Arab, UAE, etc.

 4.Equipment working site , You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby.

5. After-sales:

(1) 24 hours we are ready to explain question for you.

(2) Professional engineers supported, along with strong technical service.

(3) Excellent after-sales service.

(4) Any problem can be solved without influence products schedule of customers.
