MALABAR 3 system hydraulic mule

Type	Other, military aircraft		Condition	New
Year Built	2011		Place of Origin	California, United States
Model Number	..........................

Specifications

3 system 5606/83282 service hydraulic mules used for testing most military aircraft.Available both in diesel and electric.

portable test stand designed to test most military aircraft, onboard computer loaded with all testing information.

Simply pull down a list and choose which aircraft and what tests you want to perform.

this unit is available in both diesel and electric powered.Originally mau=nufactured by the Malabar Company the

model # HTS-3D  part # 26001(diesel) is equipped with the following major hydraulic components.



*6 cylinder 250 HP, 1800 RPM's, diesel engine with panel mounted computer control center to display the following.

Oil temperature,coolant temperature,oil pressure,amperes,engine RPM, engine operating hours, engine diagnostic flash codes, hydraulic fuel air bleed.

*main system hydraulic pump( 90 gpm@ 3000 psi, 30 GPm per system)

*hydraulic reservoir (60 US gallons)

*fuel tank (60 US gallons)

*pre fill system

*filtration is as follows

hi pressure system.................................................... 2 micron absolute

boost system............................................................. 10 micron absolute

fill system.................................................................. 2 micron filtration

*purification system

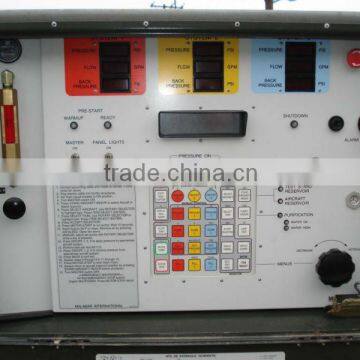

*panel is all digital with the following readouts.

system flow, system pressure, system back pressure

*global automated control system
