Factory Prices of Water Purifying Machines/activated Carbon Filter Sand Filter

Active carbon filter--- Environmental  protection equipment

Activated carbon filter is mainly used for adsorption water free chlorine (99%) removal, get rid of some other filters cannot remove the solubility of organic matter, such as phenol, aldehyde, textile dyes, pesticides, etc., organic matter and chromaticity also had higher removal. Is softening, out of pure salt system manufacturing process equipment pretreatment. Filter material for activated carbon. Equipment main material for carbon steel corrosion, steel lining rubber and stainless steel, etc.

Working principle:

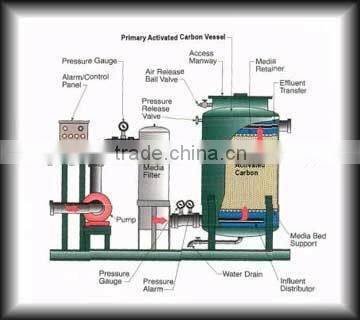

This carbon filter consists mainly of carbon layer and supporting layers. Activated carbon has developed porosity, surface area, has the very high adsorption ability. It is by active carbon this characteristic, it is in the deep treatment who is widely used, such as drinking water, sewage hind paragraph (water) deep processing, etc.

Use active carbon adsorption after period of time, a large amount of adsorption qualitative, gradually becoming saturated, lose working ability, serious when will penetrate filter layer, and therefore should be timely regenerate active or replacement.

Supporting layer's main function is to prevent activated carbon from equipment in water erosion, when using rinse water plays a certain role uniform cloth.

The main technique parameters:

Filtration speed: 8-12m/h water turbidity: < 15mg/L

Effluent turbidity: 5mg/L working temperature: under normal temperature

Working pressure: < 0.4 Mpa filter material layer height: 1000-1200mm

Reverse-wash compressed air quantity: 18-25L/m2. S compressed air pressure: 0.1-0.2 Mpa

Reverse-wash strength: 15L/m2. S (single) 12L/m2. S (double) backwash time: 5-10 minutes

 Main date:

 Features

1.Compact pre-treatment and RO main machine on integrated frame .

2.Parts for pre-treatment is optional based on feed water quality .

3.High operation automation degree. It is unattended. the machine will automatically stop in case of

 water sufficiency and automatically start in case of no water. Timed flushing of front filering materials

 by automatic controller. Aotumatic flushing of reverse osmosis film by IC microcomputer contriller.

Online dispaly of raw water and pure water electric coductivity.

4.Small in size,easy installation and operation, easy maintenance

5.Only connect the inflow and out flow pipe, the system can work directly
