Low Cost High Quality Small Submersible Mixer Water Pumps

 Made in china Sewage treatment Submersible mixer

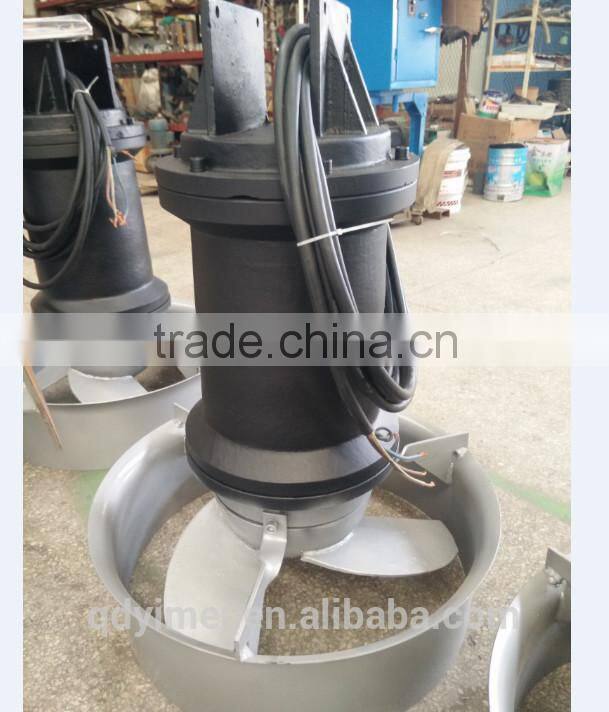

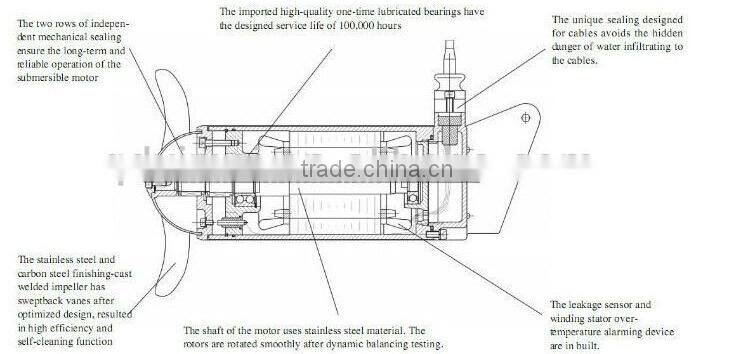

1, submersible mixer can meet the technological requirement for homogeneity and fluidity of solid-liquid two-phase flow and solid-liquid-gas three phase flow in biochemical course of the water treatment process. It is composed of the submersible motor, impeller, and installation system etc.. The submersible mixer is in direct connection structure. Comparing with the traditional high-power electric motor that retards speed.

2,submersible mixer is supporting by the conventional four-motor and highefficiency

reducer, compared to Multi-motor can significantly reduce the power of burden, can be saving energy more than 15%.

3,The submersible mixers are mainly used for mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment and can also be used for equipment maintenance of the landscape water circulation through agitation, they can achieve the function of creating water flow, improving water quality, increasing oxygen content in the water and effectively preventing the sedimentation of the suspended substances.

Feature

1.compact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.

2.the blade has the self-cleaning function, can prevent sundries wind,blocking

3.can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.

4.motor winding is F grade insulation, protection grade is IP68.

5.all fastener is stainless steel.

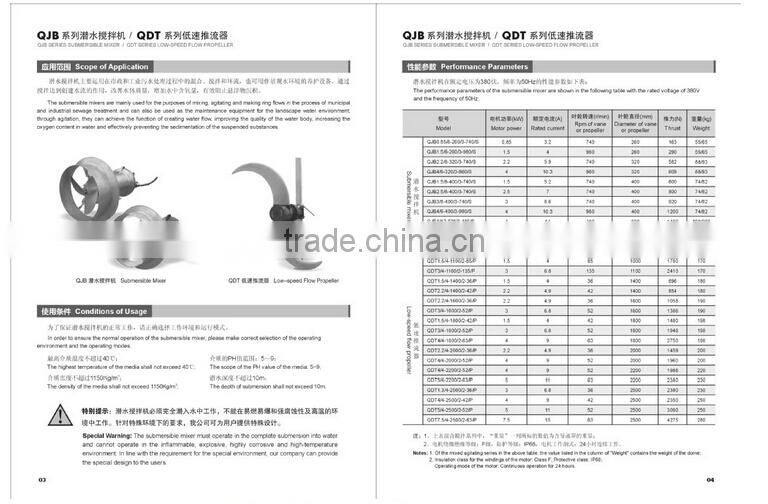

Specification Introduction:

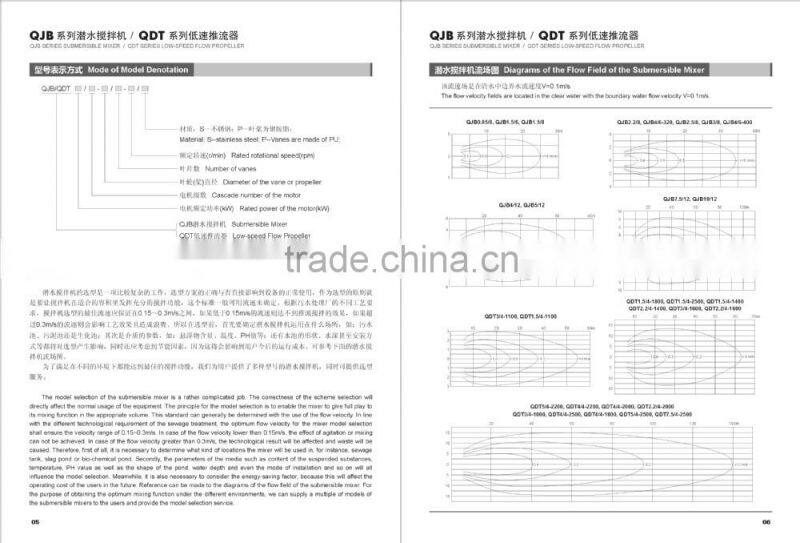

QJB5/12-620/3-480/s

QJB------ submersible mixer

620----- impeller dia

480------- impeller rotate speed(r/min)

5------ motor power(KW)

S--------stainless steel

matching power range:0.85-10KW impeller dia range:260-620mm

Impeller rotate range:480-980r/min

Function and application condition:

This mixer suitable for all kind of water treatment process which need keep solid,liquid_ two phase or solid,liquid ,air three phase uniform mixing reaction area.

Normal continuous operation condition:

Maxi temperature no over 40°C medium PH 5-9

Medium density no over 1150KG/M^3

long term diving operation, diving water depth no over 20m

Attention items when chose models:

In order to guarantee mixer to get the best operation effect, pls supply the Application purpose

tank type and dimension

Mixing media characteristic: contain Viscosity, density, temperature and solid content etc.

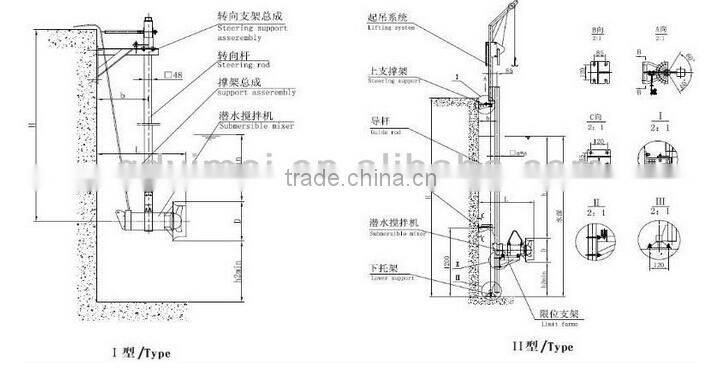

Installation system:

The special install system of mixer can be fast installation and dismantle submersible mixer no need discharge out the sewage in tank.

When tank depth H <4m, suggest adopt install system Ⅰ-1. The diving depth can make adjustment in vertical direction according to requirement, and it can rotating maxi angle plus or minus 60° around guide pad is in horizontal direction inner hoist system base,supporting bracket and below bracket and all concerned connect face all adopt expansion bolt fix, no need reserved hole.

Installation system Ⅱ using guide rope instead of guide pad, it has the feature of convenient installation, simple site installation etc, and effective improve too much depth tank condition, due to guide pad installation error and lead to can’t normal hoist condition.

Our servise:

1.All products will be well packed before shipping.

2.All products have 12 months warranty and we sure the products will free from maintenance within warranty period.

3.Reply your inquiry in 24 working hours.

4.Customized design is available.

5.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.

6.As an honest seller,we always use high quality material,advanced machines,skilled technicians to ensure quality.

7.Have our owm engineer team,each machine is design as customer's specfic requirement,the performance is higher 20%~40% than other factory with same cost.
