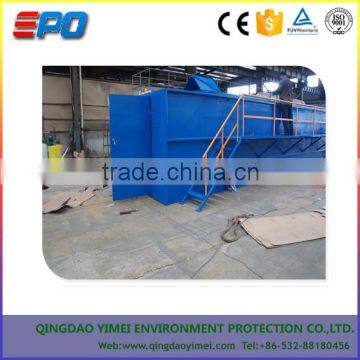

Packaged slaughter Sewage Treatment equipment/MBR Hospital effluent treatment equipment

with economic and population growth, nature pollution is more and more valued by people, based on summary of domestic sewage treatment equipment operation experience at home and abroad ,combine our company’s scientific achievements and engineering practice, designed a whole set of organic wastewater treatment equipment which can be buried underground, which adopted the advanced technique and manufacturing technology at home and abroad 1n late of 1990s,produed the LHC series of sewage treatment equipment, which main raw material is fiberglass, stainless steel, its main purpose is make the domestic sewage and similar industrial organic sewage to achieve user's emissions standards after disposed by this equipment. This equipment mainly used in treating domestic sewage in Residential area (including villa district), senior hotel ,complex office and various of public hospital buildings, the water quality can achieve national emission standard after treated by the equipment. A full set of equipment can be buried in the ground, is also known as "integrated waste water treatment equipment."

our integrated wastewater treatment equipment adopt international advanced biological treatment processes, set to remove BOD5, COD, NH3-N in one, with the advantage of Technical performance stable and reliable, good treatment effect, save investment, small occupy area, and easy maintenance.

Features:

1, can set on the ground or underground, if underground, above the surface can be used as green or other land, no housing and heating, insulation.

2, two biological contact oxidation process are the use of plug-flow bio-contact oxidation, this treatment is better than completely mixed or two series completely mixed biological contact oxidation pool. And small size than the activated sludge tank, the water quality of adaptability, resistance to shock loading performance, effluent quality and stability, does not produce sludge bulking. Pool using the new flexible three-dimensional packing, large surface area, microbial and easy to hang film, stripping, in the same organic load conditions, high removal rate of organic matter, oxygen in the air can increase the solubility in water.

3, biochemical use of biological contact oxidation pool, its relatively low volume loading of filler, microbial oxidation stage in their broken, less sludge production, only three months (90 days) above a row of mud (using suction truck or dehydration cake transport out).

4, The integration of deodorizing sewage treatment facilities in addition to the conventional way of high-altitude exhaust, coming with a soil deodorization measures.

5, the entire processing system is equipped with fully automatic equipment control systems and electrical equipment failure alarm system, safe and reliable operation, usually does not require expert management generally, only timely maintenance and repair of equipment.

Scope of Application

1. Hotels, restaurants, nursing homes, hospitals.

2. Residential areas, village, town.

3. Stations, airports, port terminals and ship.

4. Factories, mines, military, tourist, scenic.

5. All kinds of industrial wastewater similar with domestic sewage.

Technics processing:

The collected domestic sewage first pass by bar screen to remove bigger suspended solids,floater and ribbon matter, then equalize sewage volume and quality in equalize tank, in order to prevent the suspended solid settling in equalize tank, equip with punch aeration pipe in the bottom of equalize tank, adopting interval aeration. then the sewage enter into the integrated sewage treatment equipment by lifting pump. First enter into first settling tank to make primary sediment, then enter into anaerobic A grade tank, in A grade anaerobic tank , due to the sewage organism content is high, microorganism in anaerobic condition, now the microorganism is facultative , they will transform the organic nitrogen into ammonia nitrogen, at the same time, using organic carbon source as electron donor, to make the NO2-N,NO3-N translate into N2, and using part of carbon source and ammonia nitrogen synthesis new cellular material. so A grade tank with certain function of organic matter removal , relieve the organic load of follow-up O grade biochemical tank, to benefit to nitrification, and rely on high concentration organism in sewage , to finish denitrification, finally eliminate the nitrogen eutrophication pollution. By A grade anaerobic tank biochemical action, the sewage still some organism and higher ammonia nitrogen, in order to make organism further aerobic degradation, at the same time, when carbonification tend to finish, nitrification can smoothly going on , thus set O grade aerobic tank.

Qingdao Yimei Environment Project Ltd. is found in 1988.We are located in the largest port city-Qingdao China. Our factary take up 36,000 square metres and there are more than 130 kinds machine for manufacturing. As a member of Shandong Province Environmental Protection Industrial Association, we have 360 staff and 72 experienced engineers.

Our main product is the equipment for Environment Protection and Waste Water Treatment.And the product is popular all over the world,such as Africa, North America,Domestic Market,Eastern Asia,Mid East.

1. How to buy your idea products? A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

2. How to pay? A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

4. How to pack the products?

A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

5. How to keep your equipments from corrosion?

A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.

6. How do you manufacture your equipment ?

A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.

7. How to install after the equipments arriving destination? A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
