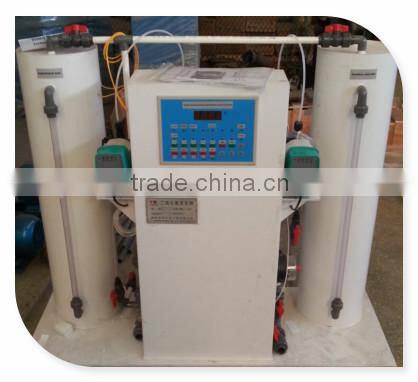

Automatic Chlorine Dioxide Generator for Water Treatment/aquaculture Industry

1.product features and main purposes:

YM series chlorine dioxide generator is my company in the thorough study of domestic and foreign similar products based on advanced technologies, after many years of exploration, innovation and practice, using the latest techniques and special high quality materials developed by. This product has advanced technology, operation convenience, easy maintenance, low operating cost, service life long, the comprehensive performance marked characteristics in the domestic leading level. This equipment is widely used in drinking water, swimming pools, water, hospital wastewater disinfection; Industrial cooling water sterilization alga; Industrial wastewater decoloring, deodorant and remove reducing pollutants.

2.Specifications and types of composition and representing significance:

Generator per hour of equipment specification according to the chlorine-antiseptic yield (g/h) to differentiate, for example: YM - 1,000 refers to economical series products, rated asia-pacific forum every hour for 1000 grams chlorine-antiseptic yield.

3. environment of use and working conditions:

Setting place: indoor (well ventilated)
With water: 25, hydraulic pipe diameter DN p 0.2-0.4 MPa, : traffic Q p 2 cubic meters/hour.
With power: AC220V, 50HZ; Power 1KW

B. the structure and working principle:

1.The overall structure and working principle:

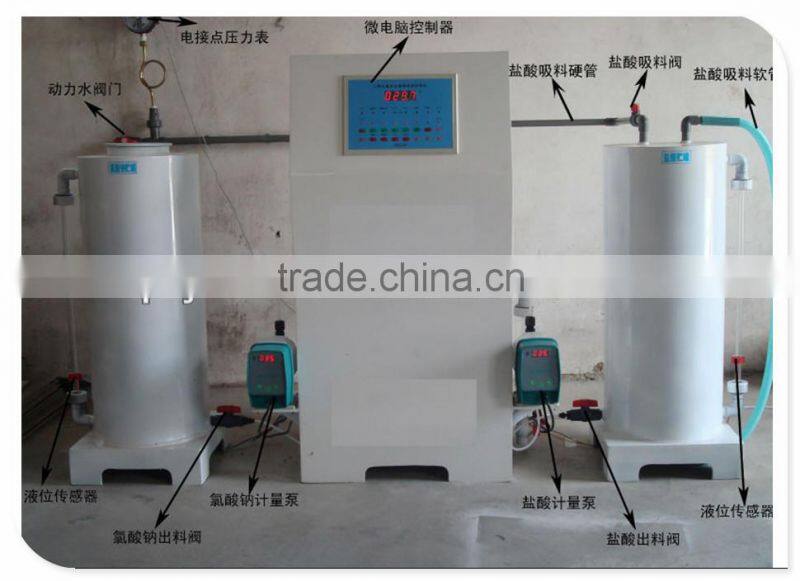

Overall structure: generator have material feeding system and reaction system, absorption system and safety system structure. Generator shell for PVC material.
Working principle: sodium chlorate aqueous solution with hydrochloric acid by negative pressure conditions in the feeding tube material box, dripping with valve into reaction chamber, fully and reaction, output by chlorine dioxide gas for the main ingredients of disinfection, via water absorption and water shoot fully mixing is formed after disinfection, access to water was disinfected.

Technical Data:
