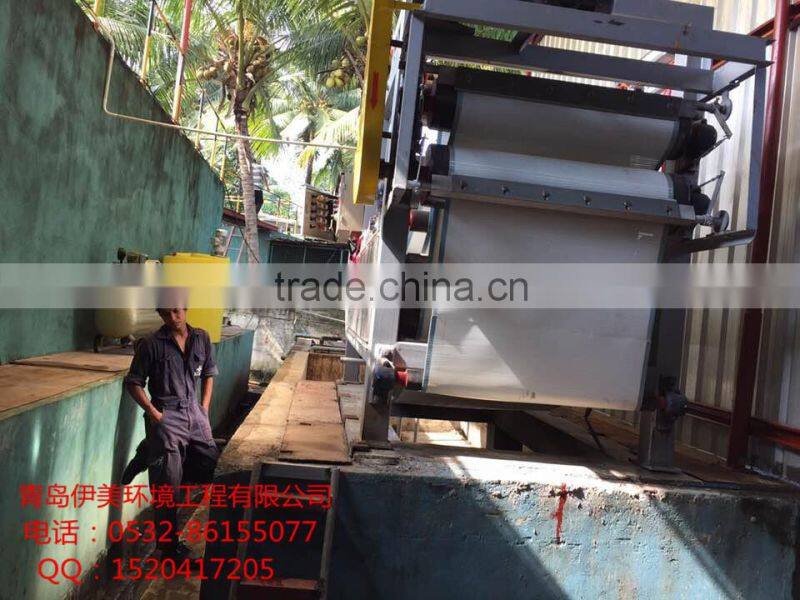

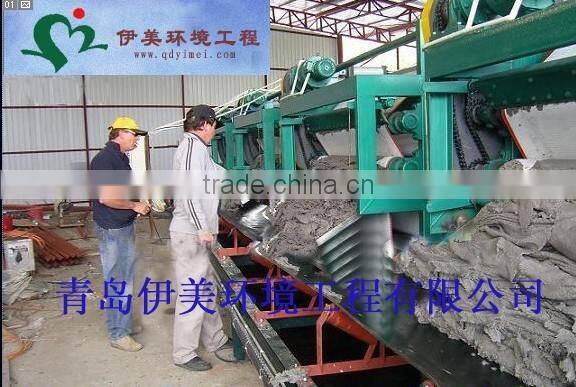

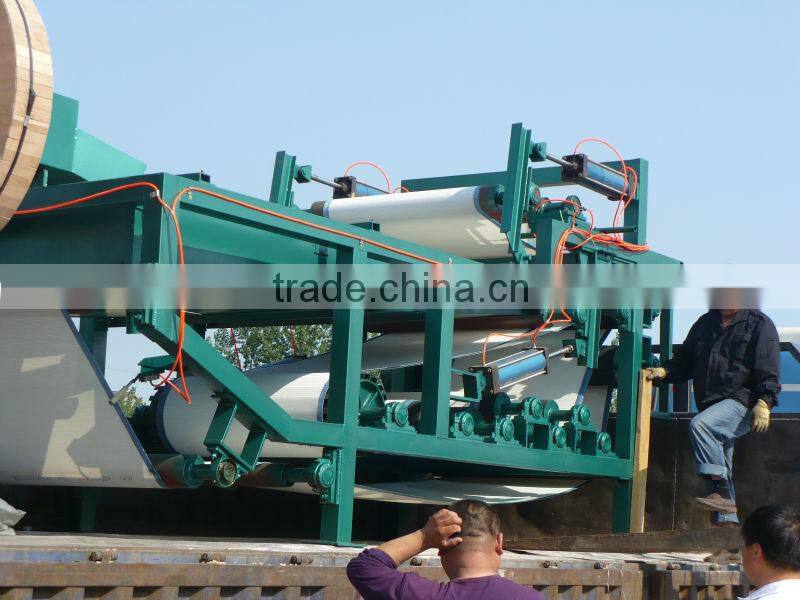

Belt Type Filter Press Dewatering Machine

Belt filter press, concentrated belt filter press Design and Operation Characteristics:
1. The concentrated belt filter press’s concentrating stage treating efficiency and ability is perfect,comprare with the traditional concentration tanks. The traditional slurry concentration tank need to hold slurry for more than 10 hours, but Leo concentrated belt filter press only need 50 seconds to 2 minutes
2. The concentrated stage and squeezing stage designed to be slide ,enlarged feeding part hydrostatic head, increase dewatering efficiency
3. Concentration and squeezing stage transferring designed to fulfill infinitely variable speeds
4. Belt correction system: adopt pneumatic feedback for single side self correction
5. Filter belt washing system: adopt high efficiency nozzle and brushing system for automatic cleaning
6. Filter belt tension device: adopt pneumatic tension system, easy to operate and maintenance

Concentrated Belt Filter Press Parts Raw Material
1. Concentration stage is designed to be half-sealing structure, expect rollers , the other parts are made from Stainless steel
2. Squeezing stage parts are made from carbon steel(anticorrosion treatment for surface), or follow as client’s requirements produce from Stainless steel material

LeoDNDYQ3000 Belt Filter Press Design Specifications List

Filter Belt With(mm):3000

Capacity :23-28m3/h

Filter Cake Moisture Content: less than 80%

Filter Cloth Tension 0-3.3KN/m

Squeezing Belt Speed (m/min): 1.4-7.2

Thickening Belt Speed(m/min):2.9-14.5

Washing Water Consumption Capacity (m3)

Recycled Water  less than 30.4

Purified Water  less than 10.1

Washing Water Pressure (MPa)

Recycled Water greater than0.4

Purified water  greater or equal 0.8

Squeezing Belt Power (KW): 2.2

Thickening Belt Power(KW):0.75

Flocculating Agent Tossing Motor (KW) 1.1

Total Weight (Kg):6100

External Size (mm):5920X3850X2320

Performance parameter
