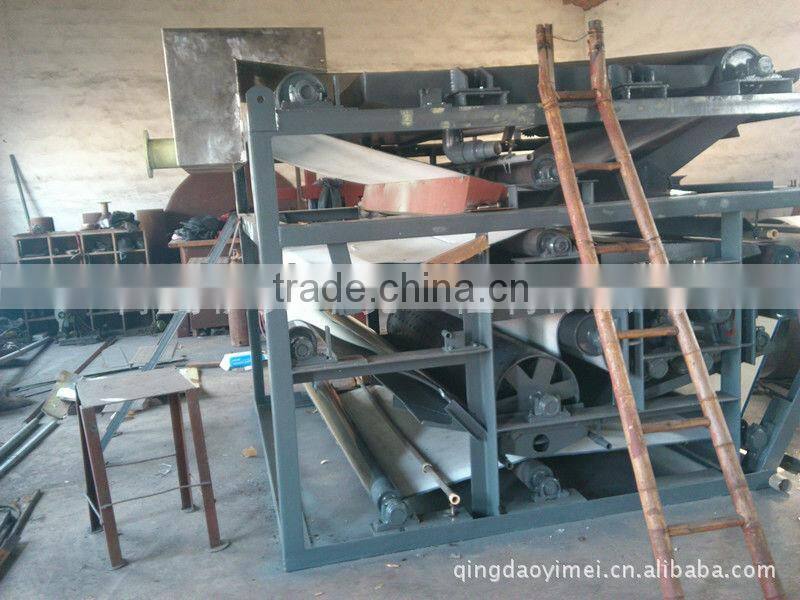

Belt Filter Press for Sewage Treatment Plant
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | YIMEI | |
| Model Number | YMRF |
Product Description
Specifications
1Large throughput2low moisture content
3low chemical consumption
Belt Filter Press is often applied in wastewater treatment plant sludge dewatering process and it is one of the most cost effective options regardless of the type of sludge feed into the systems. There are several combined processes added into one unit and it involves different applications such as chemical conditioning, gravity drainage and mechanical shearing and compression effect to remove water and dry up the sludge. Today, belt filter presses are widely used and it has become a standard for general wastewater sludge application and thus, learning how to optimize and use it to your advantage is very important.
Characteristics:
1 Adopting foreign advanced technology, having nice shape.
2 Rigid structure,smooth operation and low noise.
3 Owing advanced concentrated pretreatment equipment, and costingn low in operation.
4 Gravity dewatering zone is configured advanced distributor, distributing materials, and increasing filter's life.
5 It has a long gravity dewatering zone and wedge-shaped dehydration area, ensuring material is fully dehydrated and the material will not overflow in the press area.
Main technical data
Item | DYN1000 | DYN1500 | DYN2000 | DYN2500 |
belt width(mm) | 1150 | 1650 | 2150 | 2650 |
belt operating speed(m/min) | concentrate section 3.5~17.5m/min press section 1~5m/min |
|
|
|
main motor power(kw) | 1.1+0.55 | 1.5+0.75 | 2.2+0.75 | 3+1.1 |
clean water pressure(Mpa) | below 0.5 |
|
|
|
clean water flow(m³/h) | 10~12 | 18~20 | 22~25 | 35~40 |
machine operating weight(kg) | 5100 | 6600 | 8540 | 10000 |
untreated sludge moisture content(%) | 98~99.5 |
|
|
|
treated sludge moisture content(%) | 75~85 |
|
|
|
treatment capacity(m³/h) | 15~40 | 20~60 | 25~80 | 40~100 |
