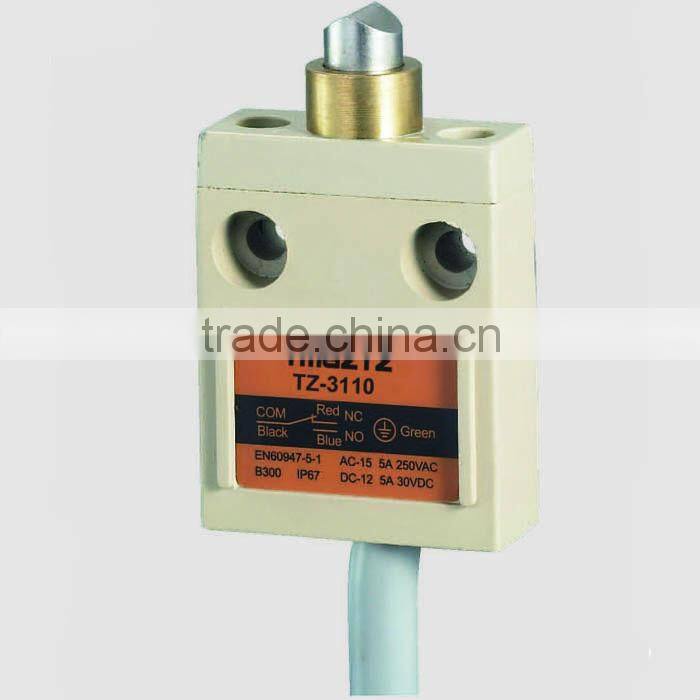

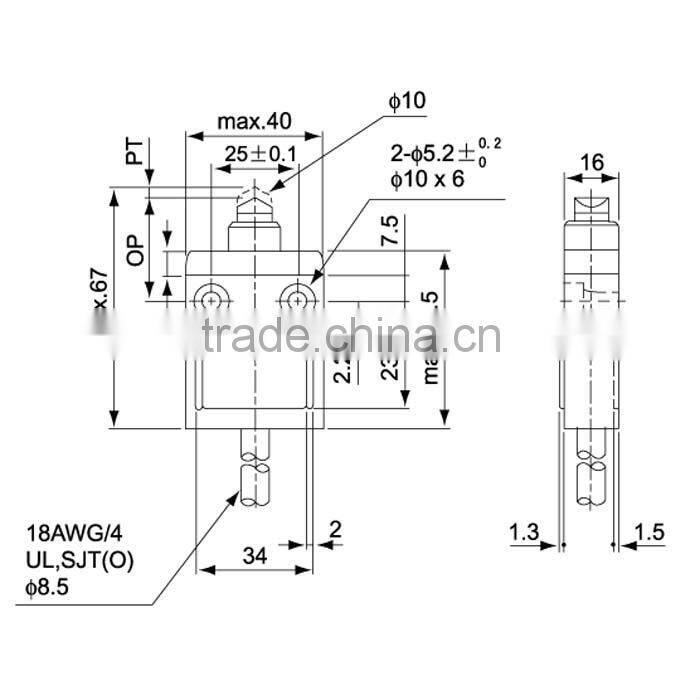

Sealed Pin Plunger TZ-3110
Negotiable
/ Piece
100 Pieces(Min. Order)
- NINGBO
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TMAZTZ | |
| Model Number | TZ-3110 | Protection Level | IP67 | |
| Operating Temperature | -10℃~+70℃ | Max. Current | 5A | |
| Max. Voltage | AC250V |
Product Description
Specifications
Specialized manufacturer of Limit switch, Micro switch,foot switch with 20 years experiences.1.DPDS limit switch for multiple applications.
2.Rugged aluminum alloy diecast housing.
3.High mechanical strength.
4.Oil resistance,waterproof and dustproof structure.
| Model | TZ-3-B/3101 | TZ-3102/3103 | TZ-3110/3111 | TZ-3112/3113 | TZ-3104 | TZ-3169 | |
| Trggering | At the end | 30°convex trigger | At the end | 30°convex trigger | 30°convex trigger | Any moving part | |
| Max trggering speed | 1.5m/s | 1m/s | 0.5m/s | 1m/s | 1.5m/s | 1.5m/s | |
| Max trggering force | 1200g | 1200g | 1200g | 1200g | 580g | 150g | |
| Min restoring force | 450g | 450g | 450g | 450g | 150g | / | |
| Weight(kg) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.540(5Vermicelli) |
