Limit Switch Waterproof TZ-3102
Negotiable
/ Piece
100 Pieces(Min. Order)
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TMAZTZ | |
| Model Number | TZ-3102 |
Product Description
Specifications
Specialized manufacturer of Limit switch, Micro switch,foot switch with 20 years experiences1.DPDS limit switch for multiple applications.
2.Rugged aluminum alloy diecast housing.
3.High mechanical strength.
4.Oil resistance,waterproof and dustproof structure.

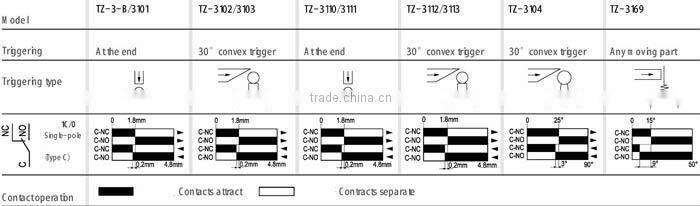

| Model | TZ-3-B/3101 | TZ-3102/3103 | TZ-3110/3111 | TZ-3112/3113 | TZ-3104 | TZ-3169 | |
| Trggering | At the end | 30°convex trigger | At the end | 30°convex trigger | 30°convex trigger | Any moving part | |
| Max trggering speed | 1.5m/s | 1m/s | 0.5m/s | 1m/s | 1.5m/s | 1.5m/s | |
| Max trggering force | 1200g | 1200g | 1200g | 1200g | 580g | 150g | |
| Min restoring force | 450g | 450g | 450g | 450g | 150g | / | |
| Weight(kg) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.360(3Vermicelli) | 0.540(5Vermicelli) |
