Home > Products > TSA Limit Switch > IP66 High Temperature Aluminium Limit Switch TSA-021

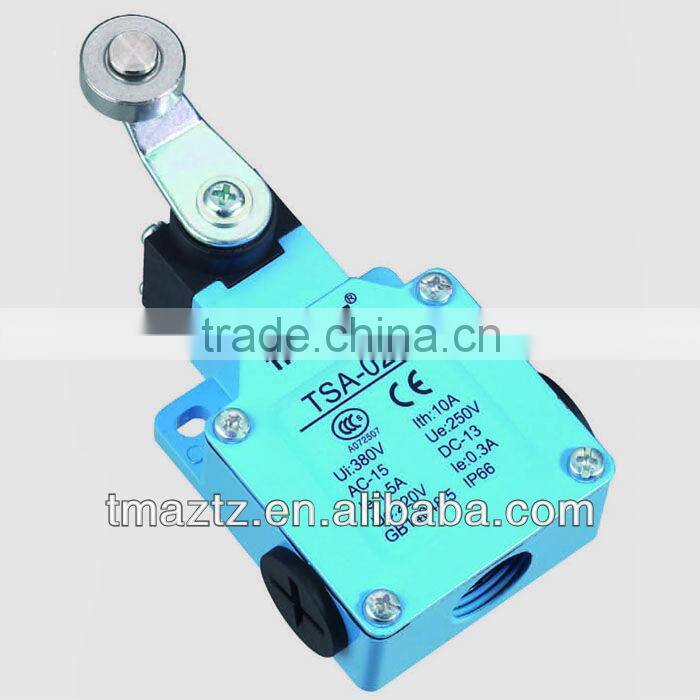

IP66 High Temperature Aluminium Limit Switch TSA-021
                            Negotiable
                                                            / Piece


                                                50 Pieces(Min. Order)

                    - NINGBO
 - T/T Credit Card PayPal

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TMAZTZ | |
| Model Number | TSA-021 | Protection Level | IP66 | |
| Operating Temperature | -25℃~+70℃ | Max. Current | 5A | |
| Max. Voltage | 250V |
Product Description
Specifications

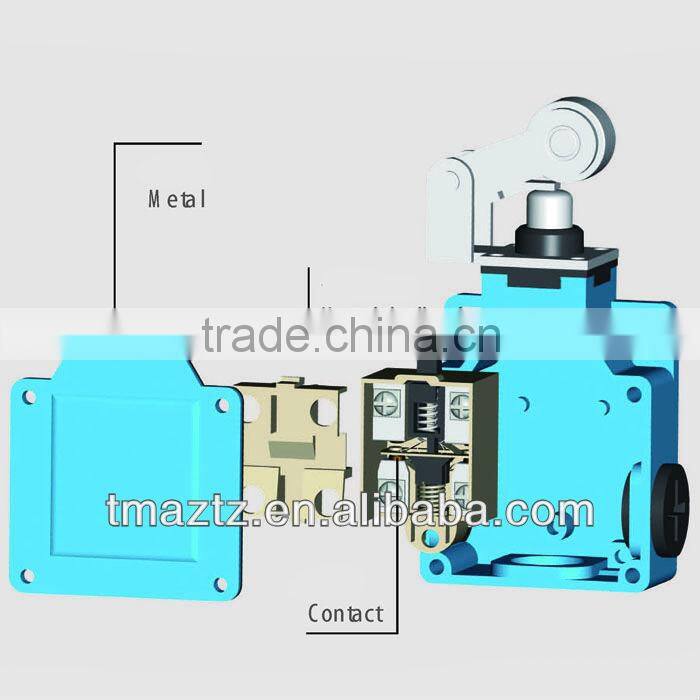

Specialized manufacturer of Limit switch, Micro switch,foot switch with 20 years experiences1.Strong metal outer shell.
2.Long life(20,000,000mechanical operations)
3.Stainless steel idler wheel,punch and spring.
4.Selective PG11 cable gland.
| Range of product | OsiSense TSA |
| Series name | Standard format  |
| Product or component type | Limit switch  |
| Device short name | TSA |
| Body type | Fixed  |
| Head type | Rotary head  |
| Material | Metal  |
| Body material | Zamak  |
| Fixing mode | By the body  |
| Movement of operating head | Rotary  |
| Type of operator | Spring return roller lever thermoplastic  |
| Type of approach | Lateral approach 2 directions  |
| Cable entry | 3 entries tapped for Pg 11 cable gland  |
| Number of poles | 2  |
| Contacts type and composition | 1 NC + 1 NO  |
| Contacts operation | Snap action  |
| Switch actuation | By 30° cam  |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²  |
| Contacts insulation form | Zb  |
| Number of steps | 1  |
| Positive opening | With  |
| Positive opening minimum torque | 0.25 N.m  |
| Minimum torque for tripping | 0.1 N.m  |
| Minimum actuation speed | 0.01 m/min  |
| Maximum actuation speed | 1.5 m/s  |
| Contact code designation | Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A  A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 appendix A  |
| [Ithe] conventional enclosed thermal current | 10 A AC  |
| [Ui] rated insulation voltage | 300 V conforming to CSA C22.2 No 14  500 V degree of pollution 3 conforming to IEC 60947-1  |
| Resistance across terminals | <= 25 MOhm conforming to IEC 60255-7 category 3  |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1  6 kV conforming to IEC 60664  |
| Short circuit protection | 10 A by gG cartridge fuse  |
| Electrical durability | 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C  5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C  |
| Mechanical durability | 15000000 cycles  |

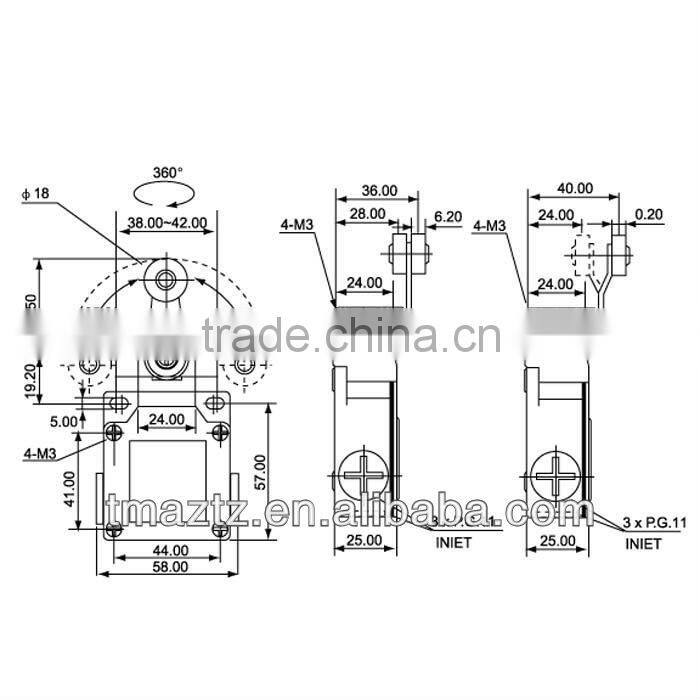

| Width | 64 mm  |
| Height | 64 mm  |
| Depth | 30 mm  |
| Product weight | 0.28 kg  |
| Terminals description ISO n°1 | (13-14)NO  (21-22)NC  |
Environment
 | Shock resistance | 50 gn (duration = 11 ms) conforming to EN/IEC 60068-2-27  |
| Vibration resistance | 25 gn (f = 10...500 Hz) conforming to EN/IEC 60068-2-6  |
| IP degree of protection | IP66 conforming to EN/IEC 60529  |
| IK degree of protection | IK05 conforming to EN 50102  |
| Class of protection against electric shock | Class I conforming to NF C 20-030  Class I conforming to IEC 61140  |
| Ambient air temperature for operation | -25...70 °C  |
| Ambient air temperature for storage | -40...70 °C  |
| Protective treatment | TC  |
| Product certifications | CCC ROHS  |
| Standards | EN 60204-1  EN 60947-5-1 IEC 60204-1 IEC 60947-5-1  |
