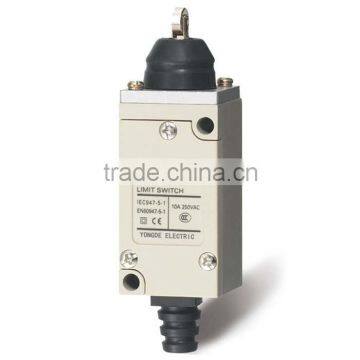

10A AC250V waterproof sealed cross roller plunger Limit Switch HL-5220

FOB Price

Negotiable / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

IP65, CCC,CE,Ideal for application in printing machines, forming machines,and light machines

10A AC250V waterproof sealed cross roller plunger Limit Switch HL-5220

Cross Roller plunger Limit switch

Part NO: HL-5220

Contact: 1NO+1NC

Contact material: Brass

Tip material: Silver

Housing: Aluminum

Degree of protection	IP65
Durability	Mechanical	10,000,000 operations min. (under rated conditions)
	Electrical	See the following Electrical Durability.
Operating speed	5 mm/s to 0.5 m/s
Operating frequency	Mechanical	120 operations/min
	Electrical	30 operations/min
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity
	1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground
	1,500 VAC, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
Rated frequency	50/60 Hz
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Ambient operating temperature	−5°C to +65°C (with no icing)
Ambient operating humidity	35% to 95%RH
Certificate	CCC, CE
