Product Details

IP65, CCC,CE,Ideal for application in printing machines, forming machines,and light machines

5A AC250V General purpose Switch HL-5030

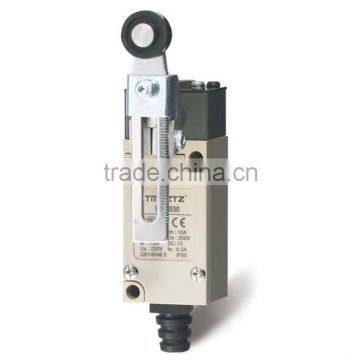

Adjustable Roller Lever limit switch

Part NO: HL-5030

Contact: 1NO+1NC

Contact material: Brass

Tip material: Silver

Housing: Aluminum

Degree of protection	IP65
Durability	Mechanical	10,000,000 operations min. (under rated conditions)
	Electrical	See the following Electrical Durability.
Operating speed	5 mm/s to 0.5 m/s
Operating frequency	Mechanical	120 operations/min
	Electrical	30 operations/min
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	25 mΩ max. (initial value)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity
	1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground
	1,500 VAC, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
Rated frequency	50/60 Hz
Vibration resistance	Malfunction	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction	1,000 m/s2 max.
	Malfunction	300 m/s2 max.
Ambient operating temperature	−5°C to +65°C (with no icing)
Ambient operating humidity	35% to 95%RH
Certificate	CCC, CE
