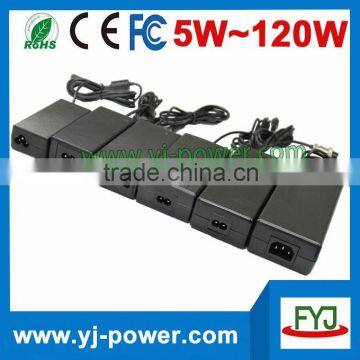

smart 36v electric bike battery charger for li-ion battery

Model:6V 12V 24V 48V 36V electric bike battery charger

Input : AC 110~240V  50/60HZ

Output Voltage Range of main products: 4.2~60V DC (Optional)

Output Current Range of main products: 0.3-50A (Optional)

6V Lead acid battery charger: 6.8V(Float Voltage), 7.3V(Top Voltage)

12V Lead acid battery charger: 13.8V(Float Voltage), 14.6V(Top Voltage)

24V Lead acid battery charger: 27.6V(Float Voltage), 29.2V (Top Voltage)

36V Lead acid battery charger: 41.4V(Float Voltage), 43.8V (Top Voltage)

48V Lead acid battery charger: 55.2V(Float Voltage), 58.4V (Top Voltage)

Cable length: 1~1.5 M

Plug type: EU plug or US plug or AU plug or UK plug or Japanese plug or Korea plug for choice,so charging Cable will suitable your country.

Output Connector: Alligator Clips, DC Jack, SAE, XLR, Aviation Plugs, Hoursing connector, JST

Charging Mode: CC—CV—Float Mode (Constant Current—Constant Voltage —Float Charging)

LED Display: Red—In charging state, Green—Full Charged,Cut-off Current: 10-15% of Charge current

Efficiency:>=85%

Safety Protection: Short-circuit Protection,

                               Over-current protection,

                               Over-voltage protection,

                               Over-load protection,

                               Polarity Reverse protection,

Operation And Storage Condition

♦ Operation Temperature: -20°C to 40°C

♦ Operation Humidity: 20% to 90% R.H

♦ Storage Temperature: -20°C to 75°C

♦ Storage Humidity: 1% to 90% R.H.

♦ MBFT: > 50,000Hours

Application

 ♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper etc.

♦ Solar Systems, Access control, alarm, Mobile speaker, Home Application,UPS, Loadometer, magnetic lock etc.

♦ LED Torch, headlight, Portable power bank,etc.

♦ Electronic scale, emergency lamp, barn lantern, lawn lamp, Mosquito beat, flashlight,toy, Baby car, Child Motorcycle, emergency lamp, Camping lamp, etc

Certificate Approval: FCC, CE, CE-EMC,CE-LVD, ROHS
