Home > Products > New Products > High quality stainless steel clapboard elevator
High quality stainless steel clapboard elevator
- Shanghai seaport China
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | JOY | |
| Model Number | GBTSJ |
Product Description

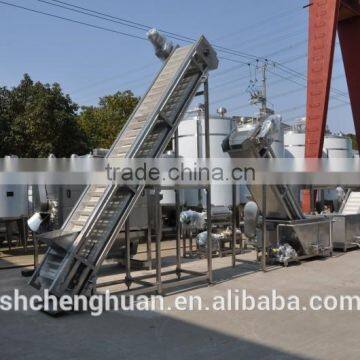

The baffle hoisting machine uses the motor to drive the movenment of the baffe, which moves the materials to reach the purpose of conveying and hoisting. It includes two types such as horizontal type and oblique type. It adopts the stainless steel or plastic baffe as the supporting body. It is suitable for conveying various fruits and vegatables with such advantages as loading and unloading materiala at multipe points.
Baffe type: stainless steel baffe or plastic baffe
Name |
Description | Transportation capacity |
Power (KW) | ||
Line speed | Capacity | ||||
GBTS-S400 | The supporter and the clapboard are all of SUS304 stainless steel, moving speed is adjustable by stepless. | 0.1-0.4m/s | 2.5-4 m³/h | 2-5m | 0.55 |
6-10m | 0.75 | ||||
GBTS-S600 | 0.1-0.4m/s | 4-6 m³/h | 2-5m | 1.1 | |
6-10m | 1.5 | ||||
GBTS-S800 | 0.1-0.4m/s | 6-8 m³/h | 2-5m | 1.5 | |
6-10m | 2.2 | ||||
GBTS-S1000 | 0.1-0.4m/s | 8-10 m³/h | 2-5m | 1.5 | |
6-10m | 2.2 | ||||
GBTS-S1200 | 0.1-0.4m/s | 10-15m³/h | 2-5m | 1.5 | |
6-10m | 3 | ||||
GBTS-S1400 | 0.1-0.4m/s | 15-20m³/h | 2-5m | 2.2 | |
6-10m | 4 | ||||
1. Warrantee: 12 months;
2. Installation and commissioning service;
3. Regular routine service checks;
4. Adequate spare parts;
5. With wide experienced after sale service engineers.
After-sales service hotline: 021-57598035/57598036
