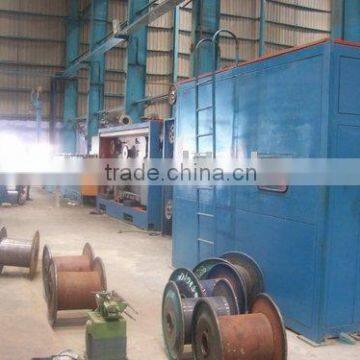

Aluminium Rod Breakdown machine

1. Main technical data:

Max. inlet diameter of aluminum rod: 9.5mm

Outlet diameter of aluminum wire: 1.8mm - 4.6mm

Outlet diameter of aluminum alloy wire: 2.3mm - 4.5mm

Max. drawing speed: 25m/s

Diameter of drawing capstan: 450mm

Max. drawing pass: 13 Nos

Max. length in wire accumulator: 7 m ~10m

Take-up spool size: PND500-PND630

Speed ratio between capstans: 1.238

Main motor for drawing: 315KW, 1000rpm DC

Motor for final capstan: 75KW, 1500 rpm, DC

Take-up motor: 30KW, 1500rpm, DC

Overall size of dies: 53x35

Installation power: 480KVA

Working voltage: 380V/AC

Overall dimension of machine: 23220 x 4500 x 4400mm

2.double take-up

Motor of double take-up Z4-160-31,30kw×2,1500r/min

Traverse motor 1.1kW

Limit motor AC 30W X2

Brake air pressure to hydraulic pressure, disk type

Bobbin loading : button operation, double shafts clamping,safety pin protection

Dimension L×W×H approx. 3320×3237×2570

Weight abt. 4200 kgs

Compressed air:

Working pressure 0.2~0.4 Mpa

Temperature ≤30°C

Flow 12-18m³/hr

Humidity 2-3%

3. Scope of supply

3.1 Pay-off stand: 1 set

3.2 Pointing and threading unit : 1 set

3.3 Main drawing machine: 1 set

3.4 Lubricant system and cooling system: 1 set

3.5 Vertical wire accumulator with tensile: 1 set

3.6 Double-spool take-up unit: 1 set

3.7 Electrical control system: 1 set
