Home > Products > Inverter > HYM-180W A 12v-230v DC to AC portable modified sine wave car power inverter with USB port

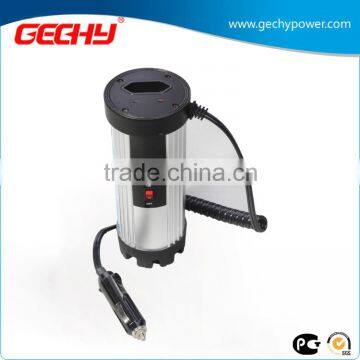

HYM-180W A 12v-230v DC to AC portable modified sine wave car power inverter with USB port

FOB Price

USD $5 - $20 / Piece

500 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shanghai/Ningbo
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	GECHY
Model Number	HYM-180W A	Output Power	101 - 200W
Output Type	Single	Size	175x73x73
Weight	0.48kg	Input Voltage	12V OR 24V DC
Output Voltage	115V+/-10% OR 230V+/-10%	Type	DC/AC Inverters
Output Frequency	50HZ/60HZ	Output Current	<0.25A

Product Description

HYM-180W A 12v-230v DC to AC portable modified sine wave car power inverter with USB port

Function & Characteristic

1.Input Voltage Range of 12V DC or 24V DC

2.Output Voltage Range of 115V AC or 230V AC

3.For use in cars,boats,trucks,trailers and mobile homes.

4.Take the power inverter to camping and get AC power for lamps,radios or TVs.

5.In an emergency such as blackout,attach the power inverter to your car battery or portable battery and get power to run your appliances.

6.Ultra-Compact Metal Housing

Small and rugged;stored easily in any tool box,briefcase or glove compartment.

7.Low-Battery Alarm/Shutdown

Automatically detects low voltage and shuts down to protect your battery.

8.Integrated Fuse Protection

Protects your battery and power inverter from damage due to outlet overload.

Power inverter specifications

Model	HYM-100W A	HYM-150W A	HYM-180W A	HYM-200W A
Output power(Continuous Watts)	100W	150W	180W	200W
Output power(Peak Watts)	200W	300W	360W	400W
No load Current Draw	<0.25A	<0.25A	<0.25A	<0.25A
Nominal Input Voltage(DC)	12V(10~15V) OR 24V(20~30V)
Nominal Output Voltage(AC)	115V+/-10% OR 230V+/-10%
Frequency	50+/-2HZ OR 60+/-2HZ
Output Waveform	Modified Sine Wave
High Battery-voltage Shutdown(Volts)	15.5+/-0.5V OR 30+/-1V DC
Low Battery-voltage Alarm(Volts)	10.5+/-0.5V OR 21+/-1V DC
Low Battery-voltage Shutdown(Volts)	10+/-0.5V OR 20+/-1V DC
Efficiency	85~90%
Thermal Protection	65°C+/-5°C
Overload	≥120W	≥180W	≥216W	≥240W
Overload	Shut down&Alarm,restart when load is under rated power
Battery Polarity Reverse	By fuse replacement
Output Short-circuit	Output short-circuit protection,do not damage the circuit
With Cooling Fan	Auto-operation fan(load)
Product Dimension(LWH)MM	175x73x73
Weight(KG)	0.48

Packaging & Shipping

Our Services

1.Enquiry answered within 24 hours
Don't hesitate to send inquiry to us when you see our products, we will do our best to reply as soon as possible and help you get more profit here

2.OEM/ODM available
you can supply your logo and package design to us, we will do that according to your requirements
3.Customized products supplied
we have 2 electronic engineers, so we can produce all kinds of stabilizers according to your thought
4.Sample for you
Telling me your specific address and your requirements of stabilizers, sample can be offered for test before order, but customer will have to pay the sample charger and freight charge. The sample will be refunded cost when order confirmed.
5. 2 years warranty available:
Every stablizers has 1pcs qualification and 1pcs after-sale service card, customers can get 2 years warranty with the both card

Company Information

FAQ

Q 1. what's the payment terms?

A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
