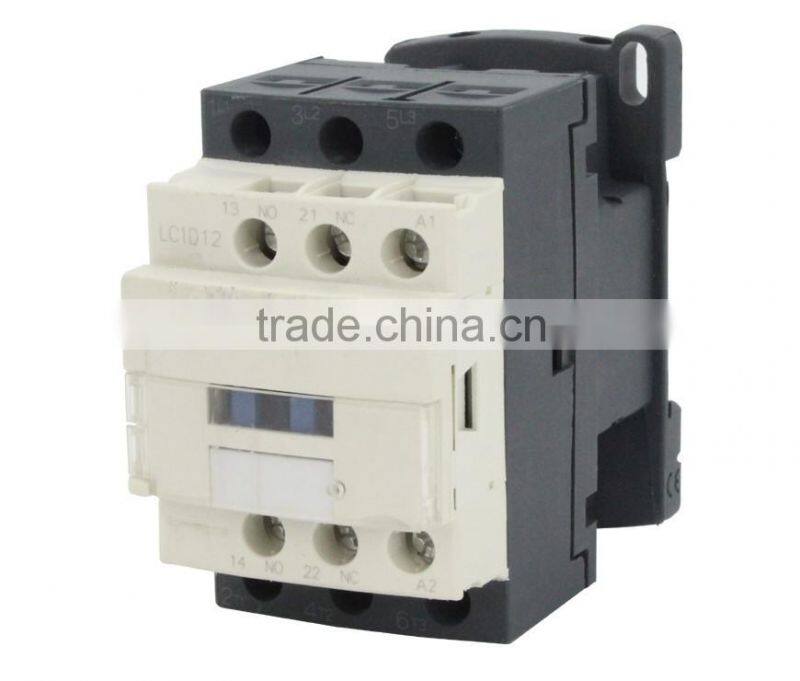

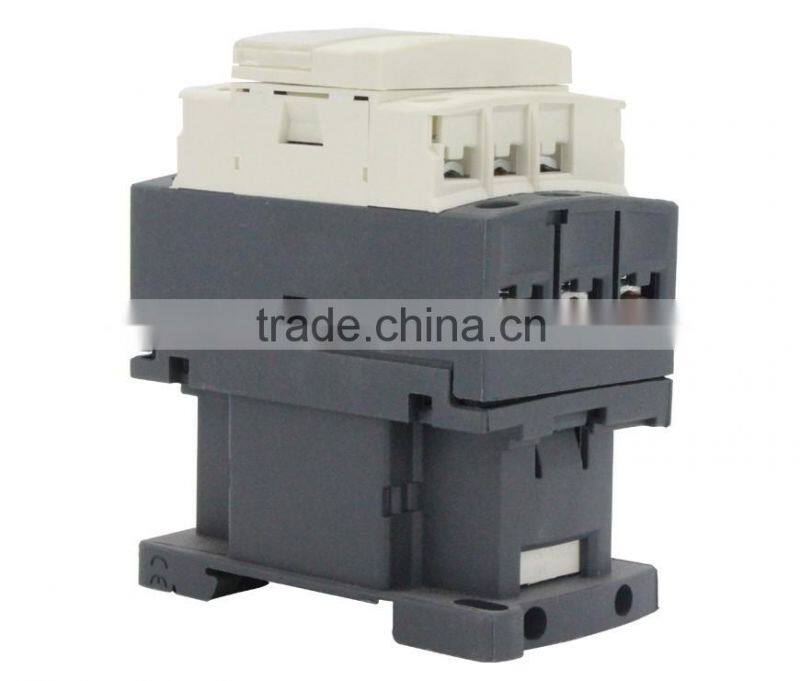

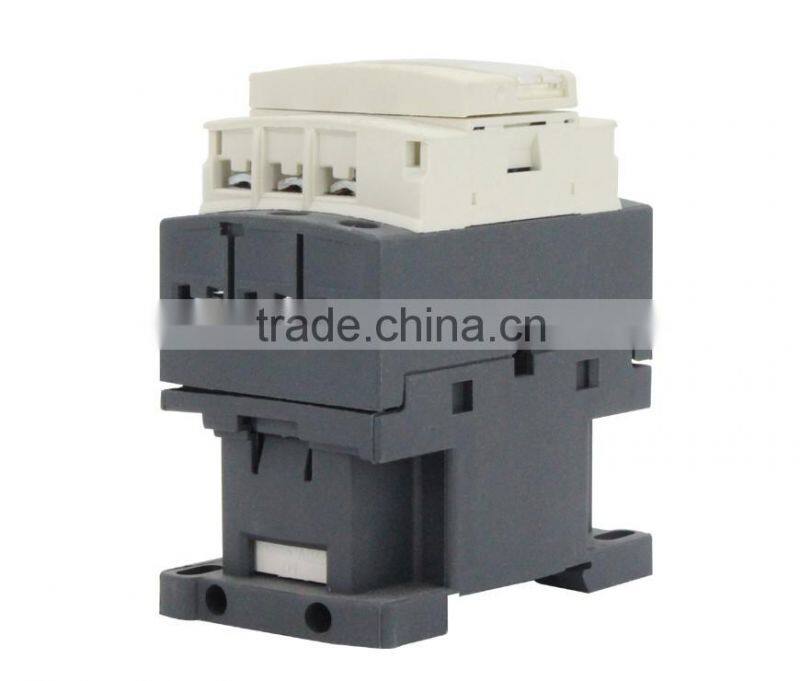

High Quality LC1D12 230V Motor Protective Contactor Magnetic Electric AC Contactor

FOB Price

US$ 0.1 - 50 / Piece

100 Pieces(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Gechy
Model Number	LC1D12	Electricity Type	Other, AC, AC
Number of Pole	3	Phase	3
Main Circuit Rating Voltage	380v

Product Description

High Quality LC1D12 230V Motor protective contactor Magnetic electric AC Contactor

Product Description

LC1-D new type series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced? according to IEC 60947-4, GB14048-4

Type	Rated voltage	Thermal current	Rated current	Control power(kw)					No .of contacts
Type	Rated voltage	Thermal current	Rated current	220V	380V	415V	440V	660V	No .of contacts
LC1-09	660V	20A	9A	2.2	4	4	4	5.5	3P+NO+NC
LC1-12	660V	20A	12A	3	5.5	5.5	5.5	7.5	3P+NO+NC
LC1-18	660V	32A	18A	4	7.5	9	9	9	3P+NO+NC
LC1-25	660V	40A	25A	5.5	11	11	11	15	3P+NO+NC
LC1-32	660V	50A	32A	7.5	15	15	15	18.5	3P+NO+NC
LC1-4011	660V	60A	40A	11	18.5	22	22	30	3P+NO+NC
LC1-5011	660V	80A	50A	15	22	25	30	33
LC1-6511	660V	80A	65A	18.5	30	37	37	37
LC1-8011	660V	125A	80A	22	37	45	45	45
LC1-9511	660V	125A	95A	25	45	45	45	45

High Quality LC1D12 230V Motor protective contactor Magnetic electric AC Contactor High Quality LC1D12 230V Motor protective contactor Magnetic electric AC Contactor High Quality LC1D12 230V Motor protective contactor Magnetic electric AC Contactor

FAQ

Q 1. what's the payment terms?

A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Q 2. how's the delivery time ?
A. usually it will take about two weeks for production

Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.

Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.

Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.

Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
