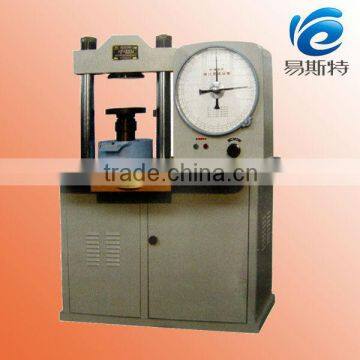

YE-500A COMPRESSION TESTING MACHINE

FOB Price

USD $3,770 - $4,670 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	jingyuan
Model Number	YE-500A	Power	Hydraulic
Usage	Compression Testing Machine

hydraulic cement
compression testing machine
It is applicable in the
compression and antiflex test
of ordinary sinter

Applications and Characteristic: The YE500A compression testing machine uses an unique system of two oil cylinders, functioning

the combination of a large-tonnage tester, a small tonnage tester, an antiflex tester and a bricklaying machine.

It is applicable in the compression and antiflex test of ordinary sinter brick, tile, cement and cement products,

concrete, engineering ceramics, engineering plastic, stone,wood and other construction materials.

: main specifications:

(KN)maximum test force		500
testing space	(mm) upperand lower plate dimensions	Φ200
	(mm) maximum distance of upper and lower plate	300
	(mm) distance between upright	310
measuring rang(kN)& minimumdivision value(kN/grid)	0~10	0.02
	0~20	0.05
	0~100	0.20
	0~200	0.50
	0~500	1.00
maximum magnitude forrelative error of indicating value		±1.0%
maximum permissible value of relative variable of displaying value		1%
maximum permissible value of process and reverse relative error of displaying value		1.5%
Load keeps for 30 seconds, the variable of displaying value does not exceeds the largest testing force		0.5%
(mm)working Piston Travel		small piston 60;big piston 100
(mm)external dimension(L×W×H)		1120x800x1440
(kW) motor power		1.5
(kg) net weight		700
